GLUED LAMINATED TIMBER
GLUED LAMINATED TIMBER

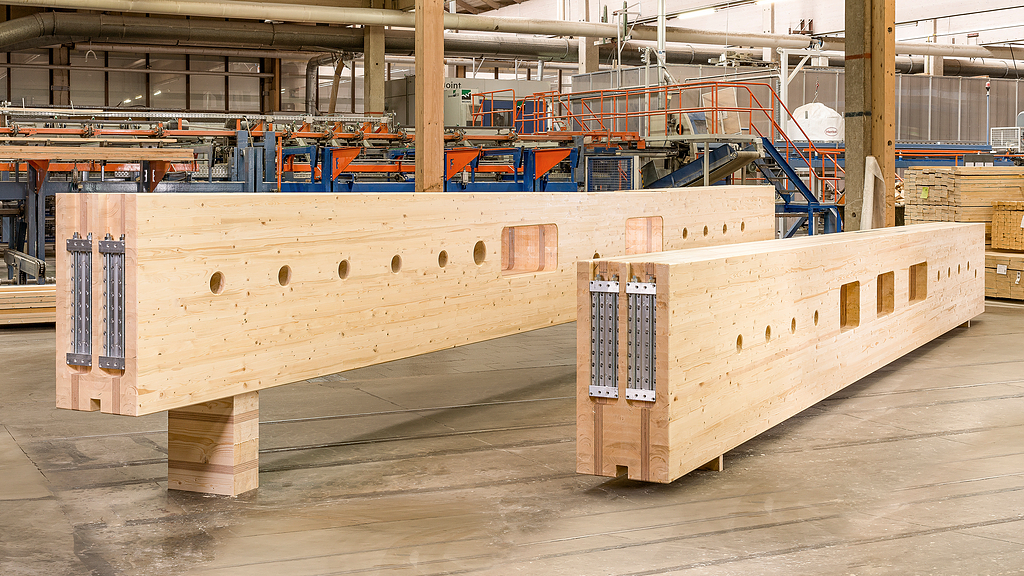

The Engineered Wood Beam
High-quality glued laminated timber (GLT) is characterized by a high structural capacity, aesthetic aspects and the free shaping possibilities of the timber construction parts.
Glued laminated timber is available in straight, curved and turned variants and thus presents almost unlimited design flexibilities for timber construction.
We develop individual and project-specific product solutions to meet the complex requirements of modern timber construction architecture and regularly explore the limits of what is feasible.
The access to the broad and innovative product portfolio of the entire HASSLACHER Group enables us to use the ideal product solution for every project requirement.
INFORMATION
THERMAL CONDUCTIVITY
l = 0.13 W/mK
MOISTURE CONTENT
12% ±2.5%
DIMENSIONAL TOLERANCES
In accordance to EN 14080
BONDING
Melamine resin adhesive with bright glue line, adhesive type I according to EN 301 approved for bonding loadbearing and non-loadbearing timber components, both indoors and outdoors
SERVICE CLASSES (EN 1995-1-1)
- Service class 1 heated interior
- Service class 2 roofed outdoor area
- Service class 3 Exposed to the elements (on request)
DENSITY
For spruce, and depending on the strength class, appro 400 kg/m³ to 500 kg/m³ in average
AREAS OF APPLICATION
- Single and multiple family houses
- Multi-storey residential and office buildings
- Public and administrative buildings
- Agricultural facilities Industrial and production halls
- Recreational and sport-hall facilities
CERTIFICATION
EN 14080
SURFACE QUALITIES
- Visual quality
- Industrial quality
FORMALDEHYDE EMISSIONS
E1 according to EN 717-1 (<0.1 ppm)
STRUCTURAL FIRE RESISTANCE
0.70 mm/min in accordance to EN 1995-1-2
FIRE BEHAVIOUR
-D-s2, d0 -D fl -s1 when used as floor covering
DIFFUSION RESISTANCE
According to EN ISO 10456 m = 50 (dry) to 20 (wet)
SHRINKAGE AND SWELLING BEHAVIOUR
- Perpendicular to the grain direction au,90 = 0.24% per 1% change in moisture content
- Parallel to the grain direction au,0 = 0.01% per 1% change in moisture content
LAMELLAS THICKNESS
- Maximum lamella thicknesses: 45 mm
- Maximum service class 3 lamella thicknesses: 35 mm (also, 40 mm to 60,000 mm² of cross sectional area)
- For curved/arched special components: Lamella thickness from 6 to 45 mm Rod bonding for three-dimensional shaped components
USE
Roof structures - also as visible components, main beams with large spans - also with special shapes, columns, floor structures - or as girder grid system
WOOD SPECIES
- Spruce/fir
- Pine
- Larch
- Other wood species on request
AIRTIGHTNESS
- Airtight above 78 mm
- Joints, component edges, narrow faces and soffits, installations, etc. must be hermetically sealed
CHARACTERISTICS
Large spans, high loadbearing capacity with a low density, high dimensional stability through bonding, can be assembled with simple tools, high fire and chemical resistance, high thermal insulation properties, natural, renewable and 100% recyclable building material
SUSTAINABILITY
The HASSLACHER Group stands for a careful use of wood as a resource. Our raw materials come from sustainable and controlled forestry. Our locations are certified according to the strict PEFC TM standards.
APPLICATIONS
Single and multiple family houses, multi-story residential and corporate buildings, public and administrative buildings, agricultural facilities, industrial and production halls, recreational and sport-hall facilities
CROSS SECTIONS
- Height: 80 to 1,280 mm in 40 mm steps Special components up to 4,000 mm are possible
- Width : 80 mm to 280 mm in 20 mm steps Any desired extension is possible through block bonding
- Length : up to 27 m; or up to 42 m as special components
ADVANTAGES
- Innovation at its best:direct, pre-cambered and with special shapes
- Large spans
- High loadbearing capacity with a low density
- High dimensional stability through bonding
- Can be assembled with simple tools
- High fire and chemical resistance
- High thermal insulation properties
- Natural, renewable and 100% recyclable building material
- Positive impacts on climate protection through storage of carbon dioxide (CO 2 )
DETAILS
ADVANCED
With the manifold possibilities of our advanced glulam components, we are in a position to realise extraordinarily high-quality, complex and highly resilient as well as combined and hybrid glulam components.
CUSTOM
We have many years of experience in the development of projects with special and extraordinary wood species such as acetylated Pinus Radiata, Oak, Beech, Chestnut, Iroko, Padouk or American Tulipwood. In addition to the use as full cross section, many wood species can also be combined as hybrid components.
