Gorter Hatches Glazed RHTG - Roof Hatch
GLAZED RHTG - ROOF HATCH
GLAZED RHTG - ROOF HATCH
Roof hatch with HR+++ glass - Gorter® translucent roof hatches

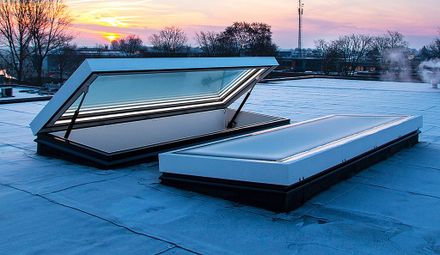

Gorter glazed roof hatches with window are ideal for use in buildings or homes where natural daylight is wanted in the rooms below.
The roof hatches can be supplied in combination with a Gorter fixed staircase for complete, safe and certified roof access. All RHTG roof hatches are CodeMark certified for Australia & New Zealand and come with a 10-year warranty as standard.
INFORMATION
APPLICATIONS
- Residential
- Commercial
CERTIFICATION
- CE (ETA-18/0831)
- KOMO® certified
PRODUCTION
Made in Australia
PROPERTIES
Thermal Insulation
BRAND
Gorter
USE
Safe access to flat roofs
GUARANTEE
- 10 year warranty on roof hatch
- 1 year on electric operation
CHARACTERISTICS
- Standard Electric Control
- Self Cleaning
- Thermally Broken Curb
- Cover
- Burglar-proof
- Fall Protection
BENEFITS
- Fully thermally broken curb and cover
- Burglar-proof and fall protection HR+++ glass
- Standard electric control
- Fast deliver
- High-quality aluminium construction
- Window is self-cleaning through run-off
SIZES ( HR+++ GLASS )
- 1000 x 1500mm
- 1000 x200 mm
- 900 x 3000mm
- 900 x 2400 mm Glazed GS50
- 900 x 2400 mm Glazed GS55
FEATURES
FINISH
Weather- and wind-proof finish
CLEANING
Self-cleaning glass due to pitch of hatch
OPERATION
Safe operation and grip
GLASS
HR+++ burglary-resistant safety glass
WARRANTY
10-year warranty as standard
CONTROL
Electric control with 2 powerful motors
CERTIFICATION
TÜV NORD certified ladder or stairs
VALUE
Proven high insulation value CE (ETA-18/0831)
DETAILS
FOR ROOF TERRACE, OFFICE AND HOME
Roof hatches can be used as escape hatches, but in most situations, they provide a convenient access to roof terraces, cooling installations, lift machine rooms, window cleaning installations, solar collectors, and other facilities on rooftops. Glazed roof hatches can be installed on flat roofs with a maximum slope of 5°.
HOW THE ROOF HATCH WITH WINDOW WORKS
Electric control
Operate the roof hatch at the push of a button or with sensors. All Gorter window roof hatches are supplied with electric controls as standard.
When electrically operated the roof hatch is fitted with two powerful electric motors allowing the cover to open and close safely and sturdily whatever the weather conditions. They are operated using the remote control and/or ventilation switch provided.
GORTER COMBINATIONS
With a Gorter combination, you have a total solution for roof access from the top storey of a building. A Gorter combination for a glazed roof hatch consists of a roof hatch with matching patented and fixed staircase. A combination offers three advantages.
- The roof hatch and accompanying stair are designed to suit each other completely.
- Your access to the roof is completely safe with a TÜV NORD certified ladder or stairs
- The combination is easy to fit and ensures an excellent solution both inside and out.
SAFETY
- The glazed roof hatch is operated by a single press of a button
- Impact and burglary-resistant glass
- A diagonal hand rail helps when climbing or descending the stairs
- Fall protection: keeps the roof hatch closed when you are on the roof
- Safe, approved and certified
For mounting on insulated or uninsulated roofs in concrete, steel or wood. Roof slope to 5°. Read the roof hatch manual first.
