CROSS LAMINATED TIMBER
CROSS LAMINATED TIMBER
Dimensionally Stable. Mass. Timber

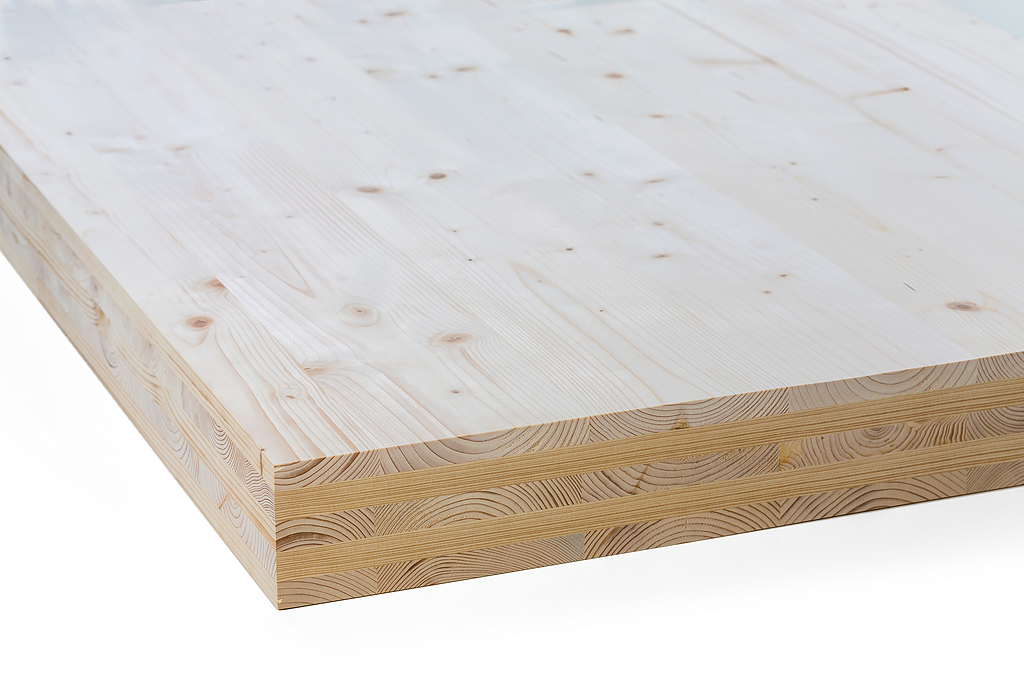

Cross laminated timber (CLT) is a solid multi-layer product made from solid timber that is usually used for load-bearing wall or ceiling elements.
CLT can transfer loads into different directions and disposes of an increased dimensional stability due to its multi-layer structure and crosswise gluing.
Innovations of the HASSLACHER Group like the cross laminated timber excellence surface open up new and unique design possibilities for architects, designers and builders with regard to the application of timber in the building and construction industry.
INFORMATION
THERMAL CONDUCTIVITY
l = 0.12 W/mK
THERMAL CAPACITY
1,600 J/kgK
DENSITY
Spruce : approximately 450 kg/m³ to 500 kg/m³ in average
DIFFUSION RESISTANCE
According to EN ISO 10456 m = 50 (dry) to 20 (wet)
DIMENSIONAL TOLERANCES
According to DIN 18203-3
MOISTURE CONTENT
11% ±2% at time of delivery
FIRE BEHAVIOUR
- D-s2, d0
- Dfl-s1 when used as floor covering
CHARACTERISTICS
Dimensionally stable, can transfer loads into different directions
FORMALDEHYDE EMISSIONS
-E1 according to EN 717-1 (<0.1 ppm) -Actual measured value: <0.02 ppm
APPLICATIONS
Multistory timber construction, industrial and commercial buildings, urban consolidation, ceiling constructions, roof constructions, wall structures, shell structures.
BRAND
Hess-timber
PRODUCT TYPE
Timber
SUSTAINABILITY
The HASSLACHER Group stands for a careful use of wood as a resource. Our raw materials come from sustainable and controlled forestry. Our locations are certified according to the strict PEFC TM standards.
WOOD SPECIES
- Spruce/fir
- Pine
- Larch
- Swiss stone pine, fir, hardwoods
STRUCTURAL FIRE RESISTANCE
-First layer: 0.65 mm/min -Each additional layer: 0.80 mm/min
SERVICE CLASSES (EN 1995-1-1)
-Service class 1 heated interior -Service class 2 roofed outdoor area
AIRTIGHTNESS
-Airtight above 78 mm -Joints, component edges, narrow faces and soffits, installations, etc. must be hermetically sealed
CROSS SECTIONS
- Thickness: 80 mm to 400 mm, 60 mm on request
- Width : up to 3.20 m
- Length : up to 20 m
PRODUCT STANDARD
ETA-12/0281
USE
Timber construction
LAMELLAS
-Thickness: 19 mm to 45 mm
-Strength classes: 100% C24/L25/T14 in the top layers max. 30% C16/L17/T11 in the middle layers
SHRINKAGE AND SWELLING BEHAVIOUR
- Out-of-plane direction au,90 = 0.24% per 1% change in moisture content
- In-plane direction au,90 = 0.01% per 1% change in moisture content
BONDING
Melamine resin adhesive with bright glue line, adhesive type I according to EN 301 approved for gluing of loadbearing and non-loadbearing timber components, both indoors and outdoors
ADVANTAGES
- Solid and made from timber
- Possibility to combine the truck loads with all of HASSLACHER Timber Group’s products
- Pleasant indoor climate
- Easy and quick assembly
- Lower dead load than that of reinforced concrete
- Positive impacts on climate protection through storage of carbon dioxide (CO
- High earthquake safety
- High fire resistance and chemical resistance
- Good thermal insulation properties
