Linvisibile Filo 10 Vertical Pivot Door
LINVISIBILE FILO 10 VERTICAL PIVOT DOOR
LINVISIBILE FILO 10 VERTICAL PIVOT DOOR

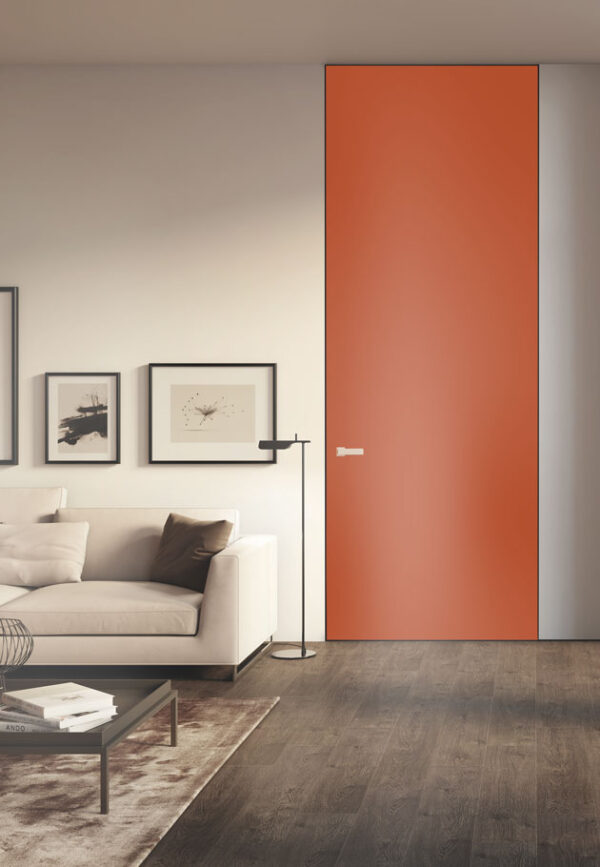

Made with a 10 cm thick panel – as thick as the wall – Linvisibile Vertical Pivot door FILO 10 is the first door totally flush with the wall on both sides.
Thanks to a sophisticated system of concealed pivots, the door can rotate on itself to different degrees of opening, obtaining a very exciting effect of movement.
FILO 10 is an evolution of the Vertical Pivot door, can be made in all dimensions and with all coverings, meaning it adapts to all settings, and can be perfectly invisible thanks to total continuity between door and wall.
It can be coated with almost any type of material (metal, stone, leather) to create special atmospheres, in a tasteful way. There are lacquered (glossy or matt) and wooden versions offered as well.
FEATURES
FILO 10 VERTICAL PIVOT DOOR CONSISTS OF
–An extruded aluminium frame (EN AW 6060 alloy – Anticorodal 063) that replaces the door post (outer frame-posts) and adapts to walls and plasterboard walls with different thickness;
–A panel with hollow-core structure, 102 mm thick, made with a perimeter frame in solid wood (Bahia rosewood, toulipier or fir tree) with high-density honeycomb interior, finished with 2 MDF sheets, 5 mm thick, on each side. Class E1- low formaldehyde emission. The model with stop includes seals at the jambs.
-Concealed rotating pivots, which can be positioned at a minimum distance of 65 mm from the jamb to a maximum point at the centre of the panel for the model with stop, or for the model without stop, from a minimum of 350 mm from the jamb to the centre of the panel.
DIMENSIONS AND PERSONALIZATIONS
Since it can be made to measure, Linvisibile Vertical Pivot door FILO 10 is perfect for both residential and contract installations. Ideal for internal doors, wardrobe booths, maxi panels, fitted panels, and large doors, available in single leaf as well as twin-leaf models. Can be made in all dimensions up to 1200×3500 H (clear width) in the single leaf model and may be coated with wallpaper, trims, gobelin, decorative woods, decorations, skirting board or mirrors.
INFORMATION
CHARACTERISTICS
Flush with the wall on both sides, can rotate on itself to different degrees of opening, achieves continuity between door and wall, can be coated with almost any material (metal, stone, leather, wood)
SHAPES AND OPENINGS
DATA
It can be coated with wallpaper, trims, gobelin, decorative woods, decorations, skirting board and mirrors.
METAL FINISHING VERSION
- All widths from 600 to 1800 mm
– All heights from 1900 to 2900 mm
TECHNOLOGY
Thanks to a refined technology, Linvisibile system guarantees perfect continuity between door and wall, a fully concealed aluminium structure, and elimination of unsightly cracks. Linvisibile ensures perfect planarity between wall and panel and an exclusive perimeter millimetric gap. For all its products, Linvisibile offers an exclusive 10-year warranty for the aluminium frames and a 2-year warranty for the panels. All Linvisibile brand products are made entirely in Italy, with particular attention to design and all materials used during the manufacturing process.
FINISHES
LACQUERING
The lacquer is one of the most elegant forms of panel finishes. Precious surfaces, shining in every possible color to give the inhabited a tone of exclusive elegance. Lacquers by Linvisibile refer exclusively to RAL classic K5 sample book. Lacquered colours are compliant to matt/glossy effect requirements: matt lacquered finish: 10 gloss; glossy lacquered finish: “100” gloss. The lacquer is one of the most elegant forms of panel finishes. Precious surfaces, shining in every possible color to give the inhabited a tone of exclusive elegance. Lacquers by Linvisibile refer exclusively to RAL classic K5 sample book.
WOOD VENEER
A traditional material adapted to the most modern processes. The characteristics of veneered wood are manifold: resistance to scratches, heat and light; hassle-free maintenance and cleaning; rich range of wood types, colours and grains, and high standards of eco-sustainability. For this finish, we relied on a leading Italian company in the world of Engineered wood, which offers maximum quality, a commitment to preserving the environment and attention to design. For those who want to make a conscious and responsible choice in total respect for the planet.
WOOD ESSENCE
Quality surfaces, exclusive of refinement. Traditional and modern blend in higher quality woods, durable and prestigious. No material is able to transmit the heat as the wood essence. Only the wood essence gives environments unique atmospheres, grain and different levels of density.
LEATHER
Natural product with high durability and precious aesthetic characteristics. A prestigious choice to cover surfaces with original textures that yield tactile sensations, strength and elegance. A material synonymous with Made-in-Italy excellence in a product that guarantees maximum customisation and meticulous attention to every detail.
MOULDED PANEL
Elegant moulded panel with high level of accuracy on all door panels for rich and sumptuous decorations giving interiors a unique touch. Panel with hollow-core structure (honeycomb), made with a perimeter frame in solid wood finished with 2 mm MDF sheets on each side, where moulded panel works, to choose between the models quoted or on demand, after verification of feasibility.
LAMINATE
A new generation of smart materials for the typical vertical and horizontal applications found in interior design. The laminates we have chosen for our products have unique features. Thanks to the innovative processing they undergo, they are moulded with fingerprint-proof surfaces, soft to the touch, matt and extremely resistant, so as to withstand bumps and scratches, as well as any possible damage from solvents and reagents typically used in household cleaning products. For the laminated finish, we relied on the collections by three cutting-edge brands, such as Fenix®, Homapal® and Formica®, which offer maximum quality and a wide range of colours.
FABRIC
An inimitable material that enhances the beauty of the panels, yielding an extraordinary tactile experience. Manufactured with cutting-edge technological processes, the fabric guarantees unique aesthetic, technical and sensorial performances. Fabric offers at once elegant and refined yet light, sturdy and durable solutions. For this finish, we have entrusted Alcantara®, which embodies the new paradigm of contemporary lifestyle sought after by those who look for functionality and the emotion of beauty, while also respecting ethics and the environment.
