A rectilinear aluminum frame, fusing subtle aesthetic with Swiss firmness, composes the design of Sky-Frame’s debut window system Classic.
Its pure appearance sides with the distinct design language of modernist champions from Mies van der Rohe to Richard Neutra. Consequently, it is a plea for thinking open and expanding space. Its iconic descent and balanced proportions make Classic fit to any architectural vision, always providing a modernist touch.

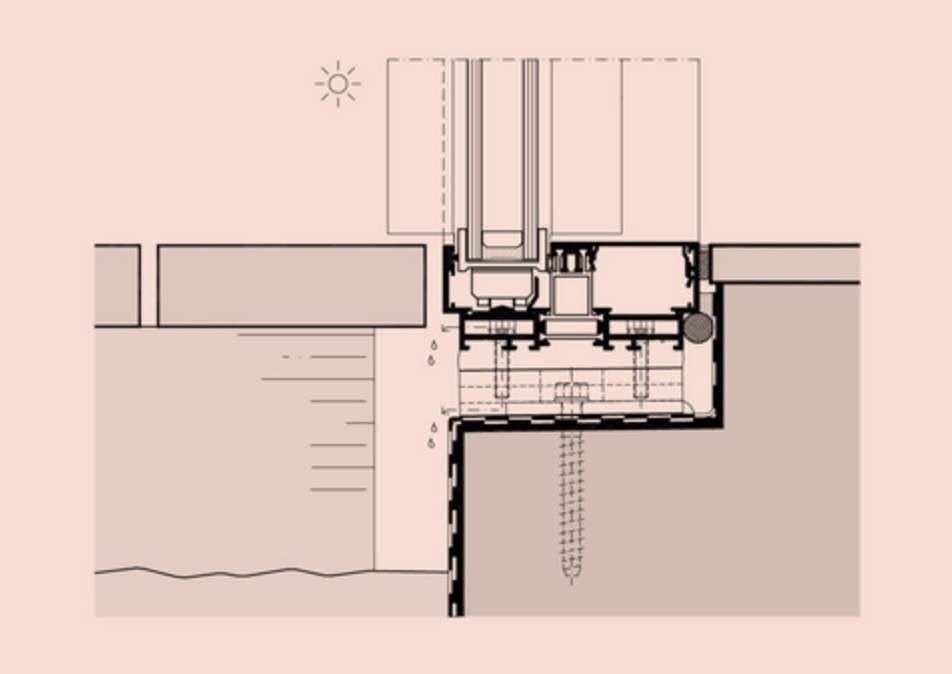

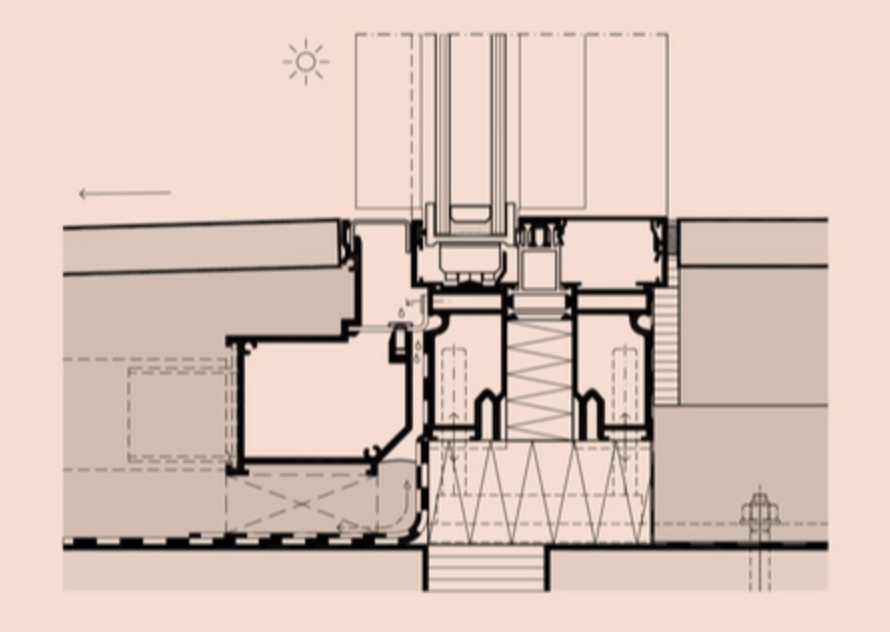

To its formal quality, the system adds a functional versatility: It can be a platform for multiple extensions, serving diverse practical user needs. The drainage runs beneath the outdoor flooring or in recessed channels of the rails.
Joint with its various opening styles – sideways, centralized or with corner-openings – and rails flush-fit to floor and ceiling, it accomplishes a frictionless usability.
FEATURES
GUARD - INCREASED ANTI-BURGLARY PROTECTION
Thanks to the adhesive bond between insulating glass assembly and GRP sections, and the multipoint locking system, even the standard Sky-Frame model offers outstanding burglar resistance. Various additional components can be fitted to the security glass sliding windows in order to meet special requirements for burglar proof windows.
FLY - INSECT SCREEN
When not in use, the frameless, pleated Fly insect screen fully retracts out of sight into the frame. Tear-resistant tension cords made from Vectran fibre and the integral system section guarantee maximum stability and weather resistance. Fly can cover openings up to 1 m wide.
DRIVE - ELECTRIC DRIVE
Sky-Frame Drive’s electric drive facilitates simple and virtually noiseless operation of up to 6 (3+3) sliding panels at the press of a button. The drive is concealed in the ceiling section and allows the window panels to move automatically. The new Sky-Frame Touch control button is a convenient way to open and close sliding windows using the SI-1000 electric drive. Entire systems can be elegantly opened, closed or stopped at any point right at the window by applying gentle pressure on the rocker switch, which is unobtrusively integrated into the locking handle.
POCKET - HIDDEN SLIDING DOOR
With the Pocket solution from Sky-Frame, rooms can be completely opened up without any visible glass leaves. The sliding elements are recessed and hidden away from sight. Additional features such as Sky-Frame Drive (electrically driven opening and closing) are also available.
INLINE - FLUSH FITTED GLASS PANELS
The Sky-Frame system is supplemented by the filigree post, which has a minimal visible width of just 30 mm. Frameless fixed glass panels can therefore be combined with exterior sliding doors over large areas, forming a flush, continuous glass membrane.
GUN - BULLETPROOF VERSION
With special insulated security glass (2-IV with bulletproof glass), reinforced frames and vertical profiles and defined building joints, Sky-Frame 3 Gun ensures optimal protection from gunfire. The Swiss Federal Office for Defence Procurement armasuisse has rated Sky-Frame 3 Gun as FB4, NS (.44 Magnum, no spall).
SUN - SHADING SOLUTION
The venetian blind system "Sun" with its flat, 80 mm wide aluminium slats offers the perfect solar shading solution for the filigree Sky-Frame sliding windows. Plastic-sheathed guide cords carry slats up to 3 m long to a maximum height of 4 m. The Sun-Box recessed into the floor and the winding mechanism in the blind box facilitate swift dismantling of the guide cords to create an unobstructed opening and their subsequent re-installation. Find out more about our custom window sun screens in the technical specifications below.
COLOR - CUSTOMISATION
Create your own Sky-Frame sliding windows: choose the profile colour and we will bring your vision to life. The sliding-window system you choose will be assembled by highly experienced glaziers, metalworkers and coating specialists who work with real diligence and have a passion for what they do.
HURRICANE
Sky-Frame Hurricane sliding doors have exceeded the most stringent hurricane impact tests, and are compliant with the High Velocity Hurricane Zone (HVHZ) criteria as defined by the Florida Building Code – considered to be the gold standard in the industry.
Fulfilling the requirements of Miami- Dade County, Sky-Frame’s 2.3 m × 3.5 m panels are one of the largest hurricanerated frameless sliding doors on the world market. The values of 1,200 Pa (25 psf) reached during the driving-rain tests are among the world’s highest, and greatly contribute to the water-resistance of the windows. The sliding doors can be motorized or manually operated with a wide range of opening options and a slim 29 mm sight line offers an unbounded spatial experience for exceptional architecture. Multi-tracks allow an unlimited number of sliding doors to be installed next to each other.
INFORMATION
TECHNICAL DATA
APPLICATIONS
Residential and commercial buildings, new and remodels
CHARACTERISTICS
Fully insulated frameless sliding doors, freely configurable, flush transition, filigree profiles, aluminum frames, thermal and acoustic insulation
WINDOW TYPE
Sliding
USE
- Glass facades
- Frameless sliding doors
PROPERTIES
- Acoustic Insulation
- Thermal Insulation
DETAILS
SKY-FRAME 1 (MM)
| CHARACTERISTICS | SKY-FRAME 1 (MM) | SKY-FRAME 1 (INCHES) |
|---|---|---|
| Panel sizes | 3.2 m × 4 m (larger on request) | 10'6" × 13' (larger on request) |
| Single glazing | 12 mm | ½" |
| Daylight / glass ratio | 98 % | 98 % |
| Watertightness to driving rain up to class | 9A (EN 12208 / EN 1027*) | 8 psf (up to 15 psf with heavy rain device GDE) |
| Air permeability up to class | 4 (EN 12207 / EN 1026*) | ≥0.06 cfm/ft2 |
| Resistance to wind load up to | C3 (EN 12210 / EN 12211*) | tested up to 50 psf |
| Sound insulation up to | Rw,P 37 dB (EN ISO 717-1 / EN ISO 10140*) | Rw,P 37 dB (EN ISO 717-1 / EN ISO 10140) |
| Product ratings* | - | R-PG30, AW-PG50 (AAMA/WDMA/CSA 101/I.S 2/A440-08) |
SKY-FRAME 2
| CHARACTERISTICS | SKY-FRAME 2 (MM) | SKY-FRAME 2 (INCHES) |
|---|---|---|
| Calculation Uw (width × height 4.6 m × 3 m) acc. to norm | SIA 331, EN 10077 | - |
| Heat insulation value (glass Ug = 1.1) | Uw = 1.25 W/m2K, 1.36 W/m2K | - |
| Heat insulation value (glass Ug = 1.0) | Uw=1.15W/m2K, 1.27 W/m2K | 98 % |
| Panel sizes | 2.3 m × 4 m (larger on request) | 7' 6" × 13' (larger on request) |
| Insulating glass (double glazing) | 30 mm | 1 3⁄16" |
| Daylight / glass ratio | 98 % | 98 % |
| Watertightness to driving rain up to class | 9A (EN 12208 / EN 1027*) | 8 psf (up to 15 psf with heavy rain device GDE) |
| Air permeability up to class | 4 (EN 12207 / EN 1026*) | ≥0.06 cfm/ft2 |
| Resistance to wind load up to | C3 (EN 12210 / EN 12211*) | tested up to 50 psf |
| Anti-fall protection, category | A (DIN 18008-4) | |
| Sound insulation up to | Rw,P 37 dB (EN ISO 717-1 / EN ISO 10140*) | Rw,P 37 dB (EN ISO 717-1 / EN ISO 10140) |
| NFRC | - | certified (SKY-M-1) |
| NAMI | - | certified |
| Product ratings | - | R-PG30, AW-PG50 (AAMA/WDMA/CSA 101/I.S.2/ A440-08) |
| EPD | - | certified (EPD-SF-27. 0) |
| U-value | - | 0.3 – 0.35 |
SKY-FRAME 3
| CHARACTERISTICS | SKY-FRAME 3 (MM) | SKY-FRAME 3 (INCHES) |
|---|---|---|
| Calculation Uw (width × height 4.6 m × 3 m) acc. to norm | SIA 331, EN 10077 | - |
| Heat insulation value (glass Ug = 0.6) | Uw =0.75 W/m2K, 0.87 W/m2K | - |
| Heat insulation value (glass Ug = 0.5) | Uw=0.66 W/m2K, 0.78 W/m2K | 98 % |
| Panel sizes | 2.3 x 4 m (larger on request) | 0.22 – 0.23 |
| Insulating glass (triple glazing) | 54 mm | 2 1⁄8" |
| Daylight / glass ratio | 98 % | 98 % |
| Watertightness to driving rain up to class | 9A (EN 12208 / EN 1027*) | 8 psf (up to 15 psf with heavy rain device GDE) |
| Air permeability up to class | 4 (EN 12207 / EN 1026*) | ≥0.06 cfm/ft2 |
| Resistance to wind load up to | B3 (EN 12210 / EN 11221*) | tested up to 50 psf |
| Anti-fall protection, category | A (DIN 18008-4) | - |
| Sound insulation up to | Rw,P 37 dB (EN ISO 717-1 / EN ISO 10140*) | Rw,P 44 dB (EN ISO 717-1 / EN ISO 10140), OITC 42 dB (ASTM E1332) |
| MINERGIE module | certified (519.09) | certified (SKY-M-1) |
| MINERGIE-P module | certified (519.12) | certified |
| Product ratings | - | R-PG30, AW-PG50 (AAMA/WDMA/CSA 101/I.S.2/ A440-08) |
| EPD | - | certified (EPD-SF-27. 0) |
| U-value | - | 0.3 – 0.35 |
| NFRC | - | certified (SKY-M-1) |
| NAMI | - | certified |
