Skyfold Glass Wall System - Prisma
PRISMA GLASS WALL SYSTEM
PRISMA GLASS WALL SYSTEM

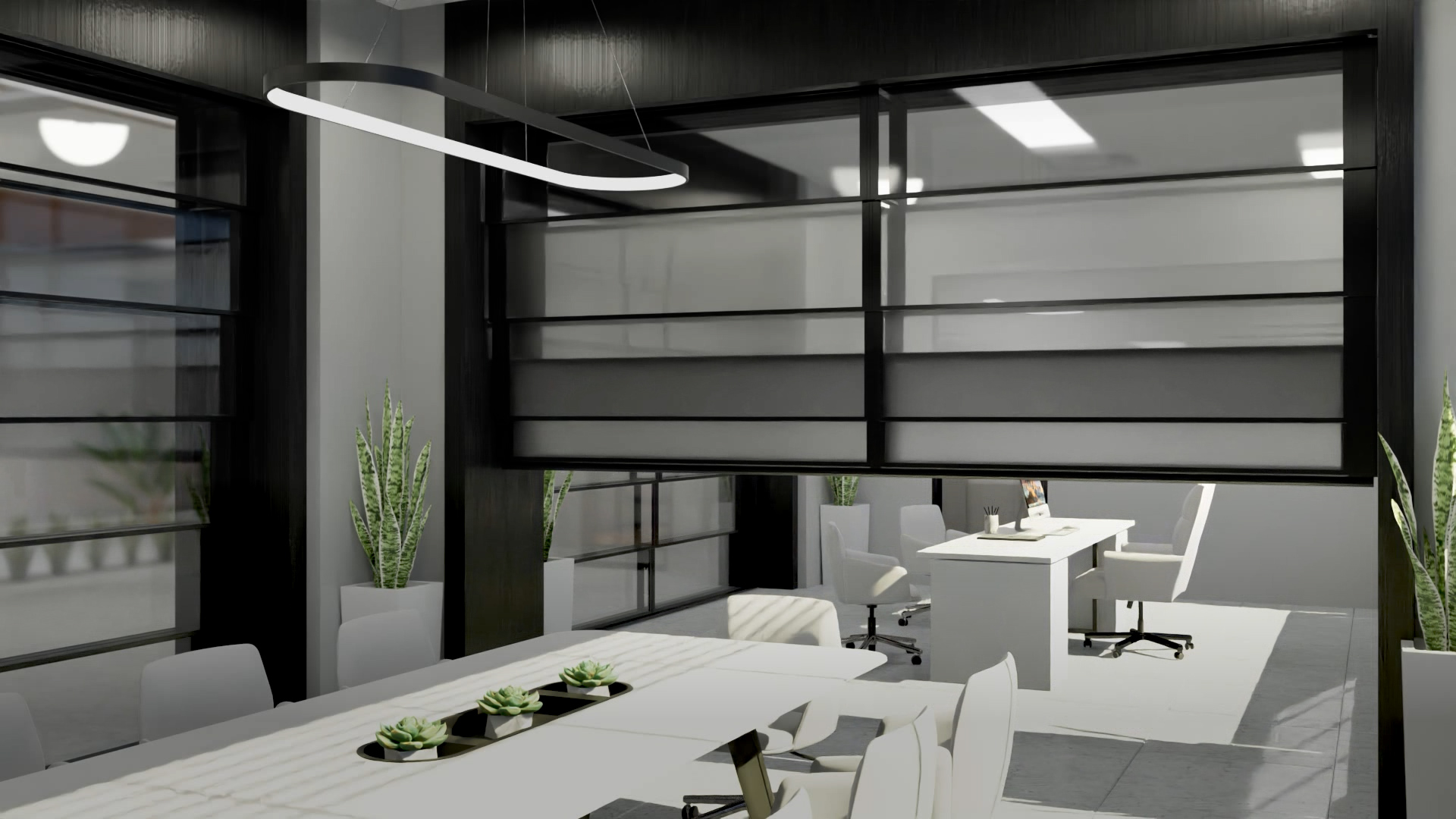

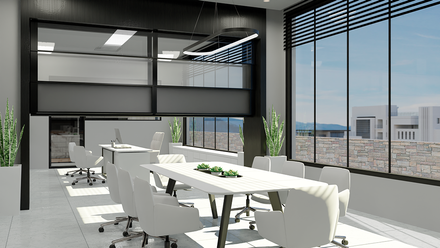

We proudly present the future of glass vertical partitions: The Skyfold Prisma. Not only does the streamlined Prisma let the light shine in, but it does so without the use of any wall or floor tracks, rendering it completely invisible when stored into the ceiling.
Skyfold Prisma's slim metal frame, clean lines, and sleek design will add elegance and natural light to your flexible spaces. Skyfold Prisma's glass panels allow for sunlight to penetrate otherwise dark rooms and corridors, creating a more pleasant atmosphere that positively affects mood and productivity.
With an STC rating of STC 52 / Rw 52, the Prisma ensures privacy between spaces, allowing confidential meetings, classes, and collaboration to occur simultaneously.
Its slim frame allows for unencumbered sight lines, allowing your flexible space to feel more open, even as it's being divided.
The Skyfold Prisma, with finish options that include frosted glass and solid panels, creates a functional design piece to match your space's aesthetic.
With a streamlined tapered-down deployment, the Prisma is ideal for tighter spaces with potential obstructions, which would otherwise limit the use of a vertically folding retractable wall.
We offer a wide range of finish options and layouts to meet your specific design needs. This is what makes Skyfold's movable walls a custom design piece within your space, and not just an acoustic room divider. The Skyfold Prisma glass panels can also be combined with solid panels to which fabric, vinyl, paint, plastic laminate and markerboard can be applied.
INFORMATION
PRODUCTION
Made in Canada
USE
Retractable wall
MATERIAL
Glass
FORMAT
Vertically retracting
APPLICATION
- Corporate
- Educational
FRAME FINISH
Black or metallic silver standards. Can be custom painted to match any RAL color code
TRACKS
- Floor Tracks : N
- Wall Tracks : N
SENSORS
- Infrared Sensor : N
- Obstruction Safety Sensor : Y
ACOUSTIC RATING OF SYSTEM
52 STC (52 Rw)
ACOUSTIC RATING OF PANELS
N/A
GLASS OPTIONS
A Variety of Laminated Tempered Glass Options, including Clear Glass, Low Iron Glass, and Frosted Glass.
AUTO-REVERSE
Y
BACK-UP OPERATION
Y
CERTIFICATION
Compliant with ASTM C1172, ANSI Z97.1, CPSC 1201
DIMENSIONS
- Height : 12'-0" (3660 mm)
- Length : Unlimited
- Weight : ~13 lbs/ft² (~63.5 Kg/m²)
LED LIGHTING
N/A
CEILING SPACE REQUIRED FOR STORAGE (APPROX.*)
≤ 36” (≤ 915 mm)
CEILING POCKET WIDTH (APPROX.*)
≤ 24” (≤ 610 mm)
CHARACTERISTICS
- Lightweight Structure
- Easy to operate
- Minimal space required for operation
- Aautomatic
- Transparent
ADVANTAGES
- Retracts into the Ceiling to Conserve Floor Space
- Industry-Leading STC rating of STC 52/Rw 52
- No Floor or Wall Tracks
- Fully Automatic
- Easy-to-use digital keypad operation
- Quiet Operation
- Equipped with a safety obstruction sensor
10-YEAR (OR 5000-CYCLE) PARTS WARRANTY
Y
DIGITAL TOUCH SCREEN OPERATOR STATION – INCLUDED
Y
