Ash Iron Ash Timber
IRON ASH TIMBER
IRON ASH TIMBER
H3 treated Victorian ash – as beautiful as it is durable and guaranteed to perform
FEATURES
- H3 Durable
- Straight line edged
- 25 year guarantee
- Continuous flow of design
Treated to H3 classification (per AS1604 Specification for Preservative Treatment), IronAsh can be used externally in partnership with GoodWood Victorian Ash to allow continuous flow of timber design from inside to out.
Because of the stunning blonde tones of Iron Ash `timber, you can stain and paint it to almost any colour. The water-based H3 treatment doesn’t affect the colour of the timber, which means that you can easily match internal joinery with external joinery.
IronAsh is a great choice to finish the project. It can be easily cut, stained and painted on site. The IronAsh range offers an affordable timber choice that is stable and readily available.
BENEFITS
Water based
Insect protection
Consistent Colour
Stains well
Machines well
Sustainable resource
Very strong
H3 Durable
Low embodied energy
INFORMATION
USE
Interior/exterior cladding
APPLICATIONS
Residential, commercial
GUARANTEE
25 year durability guarantee
STABILITY
High (quarter sawn)
CUTTING
Very Good
BENDING
Satisfactory
GLUEING
Very Good
LYCTUS SUSCEPTIBLE
No
NAIL HOLDING
Very Good
PROPERTIES
- Durable
- Easy Cutting
- Blonde Color
- Available In Random Lengths, Cost-Effective
CERTIFICATION
H3 classification, AS1604 Specification for Preservative Treatment
PRODUCTION
Made In Australia
Characteristics
JANKA
- Eucalyptus Regnans : 4.9 kN (seasoned)
- Eucalyptus Delegatensis : 5.7 kN (seasoned)
COLOR
- Eucalyptus Regnans : Pale pink to straw
- Eucalyptus Delegatensis : Pale pink to brown straw
IMPACT RESISTANCE
- Eucalyptus Regnans : High – 18 joules
- Eucalyptus Delegatensis : High – 18-20 Joules
DURABILITY
- Eucalyptus Regnans : Very durable – H3 treated as per AS1604
- Eucalyptus Delegatensis : Above ground – Class 3
Below ground – Class 4 (Refer to IronAsh for clear H3 treatment)
GRAIN
- Eucalyptus Regnans : Straight open and even grained with a uniform texture
- Eucalyptus Delegatensis : Straight, open and even. Occasionally course grained or fiddle backed. Growth rings are visual and usually conspicuous
MOISTURE CONTENT
- Eucalyptus Regnans : Medium density 660 KG/m3 at 12% moisture content. Seasoned to comply with the Australian Standard AS2796 (9% – 14%) with the average moisture content ranging between 10% and 12%.
- Eucalyptus Delegatensis : Medium density 680 KG/m3 at 12% moisture content. Seasoned to comply with the Australian Standard AS2796 (9% – 14%) with the average moisture content ranging between 10% and 12%.
UNIT SHRINKAGE (KD)
- Eucalyptus Regnans : Measurable movement in service – LowRadial: 0.22% of board dimension per 1% moisture content change.Tangential: 0.35% of board dimension per 1% moisture content change
- Eucalyptus Delegatensis : Measurable movement in service – Low. Radial: 0.23% of board dimension per 1% moisture content change. Tangential: 0.36% of board dimension per 1% moisture content change
FIRE
Eucalyptus Regnans / Delegatensis
Refer Australian Standard AS1530 Part 3 and Building Code of Australia
- Ignitability index: 14
- Spread of flame index: 8
- Heat Evolved index: 7
- Smoke development index: 3
- Flooring AS/ISO 9239.1
- Critical Radiant Heat Flux: More than 2.2kW/m2 and less than 4.5kW/m2
- Smoke development Rate: Less than 750% -min
- Wall and Ceiling lining AS/NZS3837: 1998
- Average extinction area: less than 250m2/kgMaterial Group No: 3 (unless coated to meet Group 1 & 2)
- Bushfire Attack level: BAL 19 High (BAL-29 and BAL-40 in proprietary systems)
APPLICATION

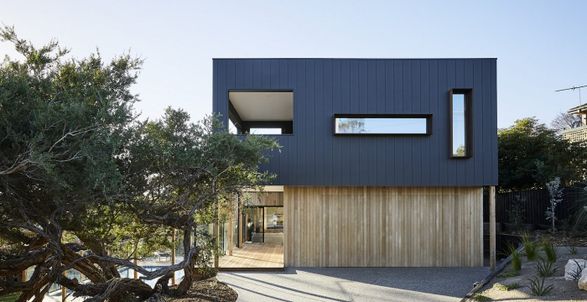

TTIMBER CLADDING
As beautiful as it is durable and guaranteed to perform – that’s IronAsh Treated to H3 classification, IronAsh timber cladding can be used externally in partnership with GoodWood Victorian ash to allow continuous flow of timber design from inside to out.
IronAsh Cladding is a great choice to finish the project. It can be easily cut, stained and painted on site. IronAsh timber cladding offers an affordable timber choice that is stable, readily available and complies with AS1604 Specification for Preservative Treatment. Available in random lengths, end matched.
MASS TIMBER
MASSLAM – your mass timber solution.
A range of glue-laminated timber systems including hardwood or softwood beams, columns, floors and roof structures
MASSLAM is Australian Sustainable Hardwoods’ (ASH) range of mass-timber solutions. Grown, owned and produced in Victoria, MASSLAM is a range of glue-laminated timber systems (including columns, beams and floors); intended for large domestic and commercial structures; designed and manufactured for assembly.
Utilising uniquely attractive Australian timbers, chosen because they have some of the best strength-to-weight ratios of any timber species worldwide, MASSLAM has advantages that allow longer spans, higher ceilings, increased floor space, lesser beam depth and lower associated installation costs. Better still, MASSLAM is cheaper to construct than concrete and steel, looks better, is safe, sustainable and efficient.
EXTERNAL PROFILES
IronAsh is the perfect exterior solution.
It allows to you seamlessly match your design from inside out. Creatively specify GoodWood Victorian ash for all interior application whilst using IronAsh external profiles to cohesively complete the build. IronAsh external profiles include cladding, battens, pergolas and more. For the structural properties of IronAsh refer to our SUPASPAN brochure here.
