Kinetic Façade Vertical Folding Shading System
Rabel 14200 is a kinetic facade shading system folding in the vertical axis.

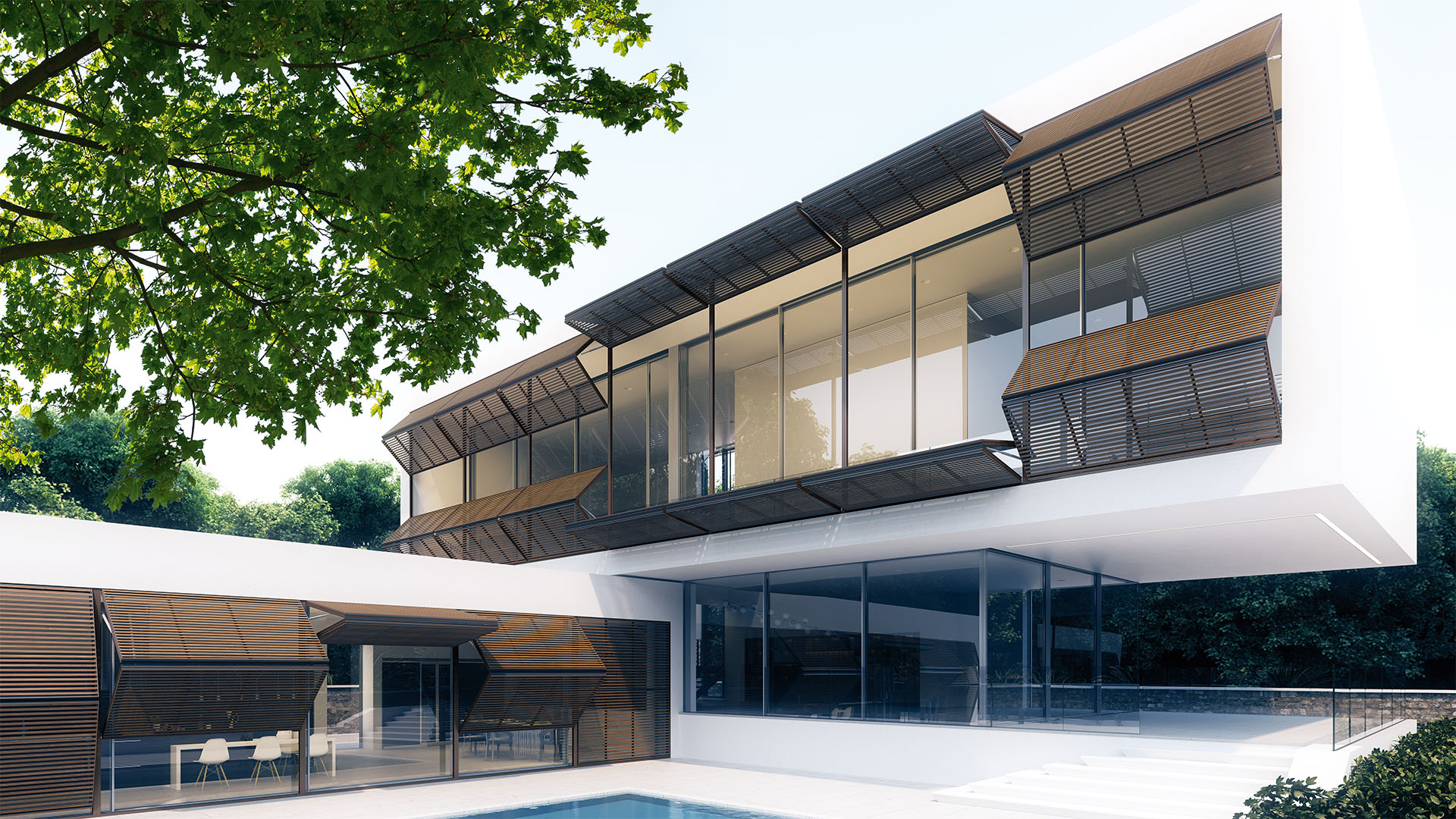

Groups of sashes in pairs can be operated electrically upwards or downwards. The sash height can be up to 1.5m and its width up to 4 meters. The system is an ideal solution for projects where it is important to allow ease of passage through the shading system.

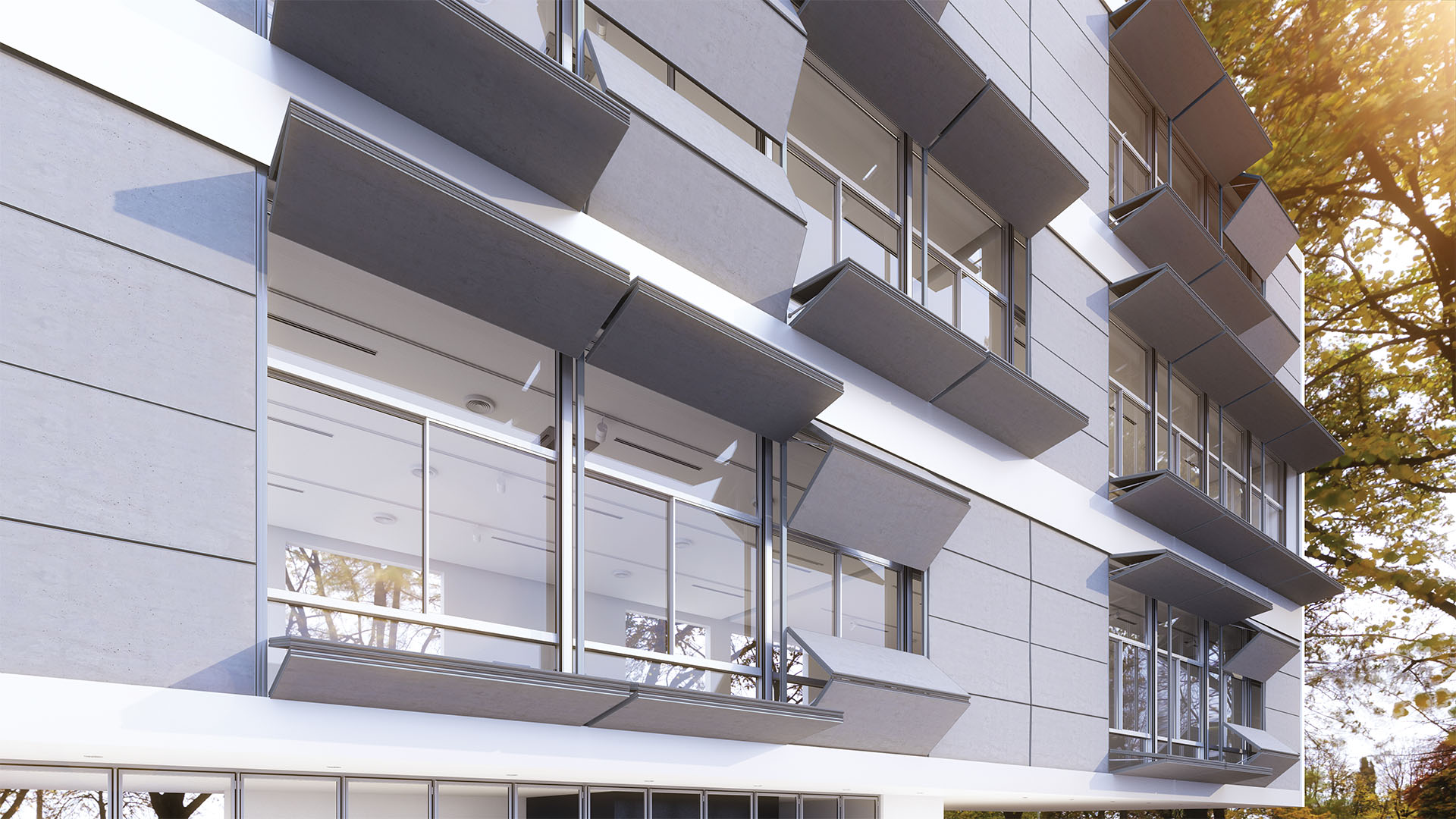

Through its projection, while in the opened position, it can provide extra shading allowing more light to pass in the building while blocking direct sunlight.
The system has been designed to allow for seamless integration with the building external cladding. Several versions are available to be used with fiber cement, HPL, Aluminium composite panels, wood, glass, ceramic and metal sheets.

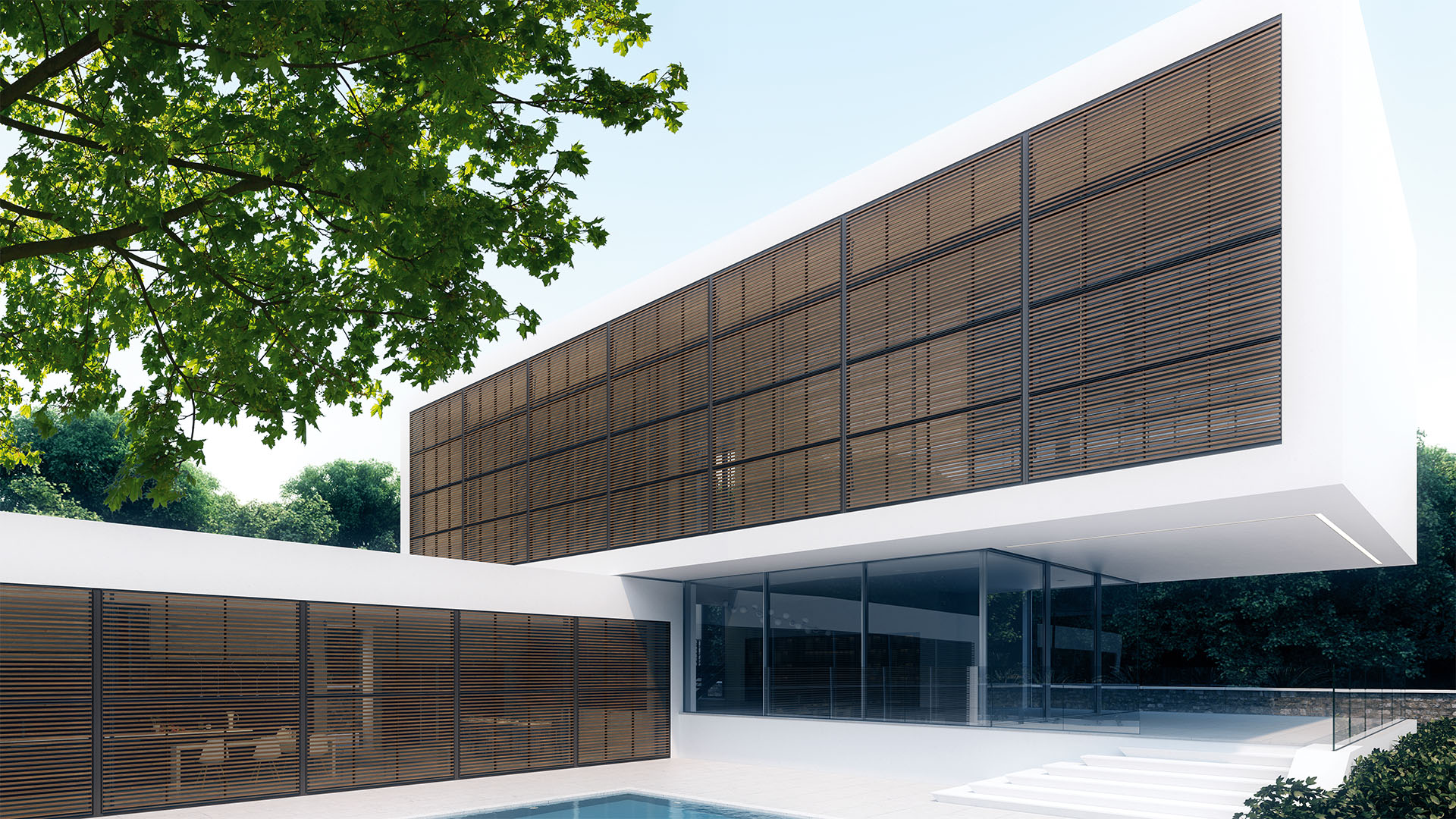

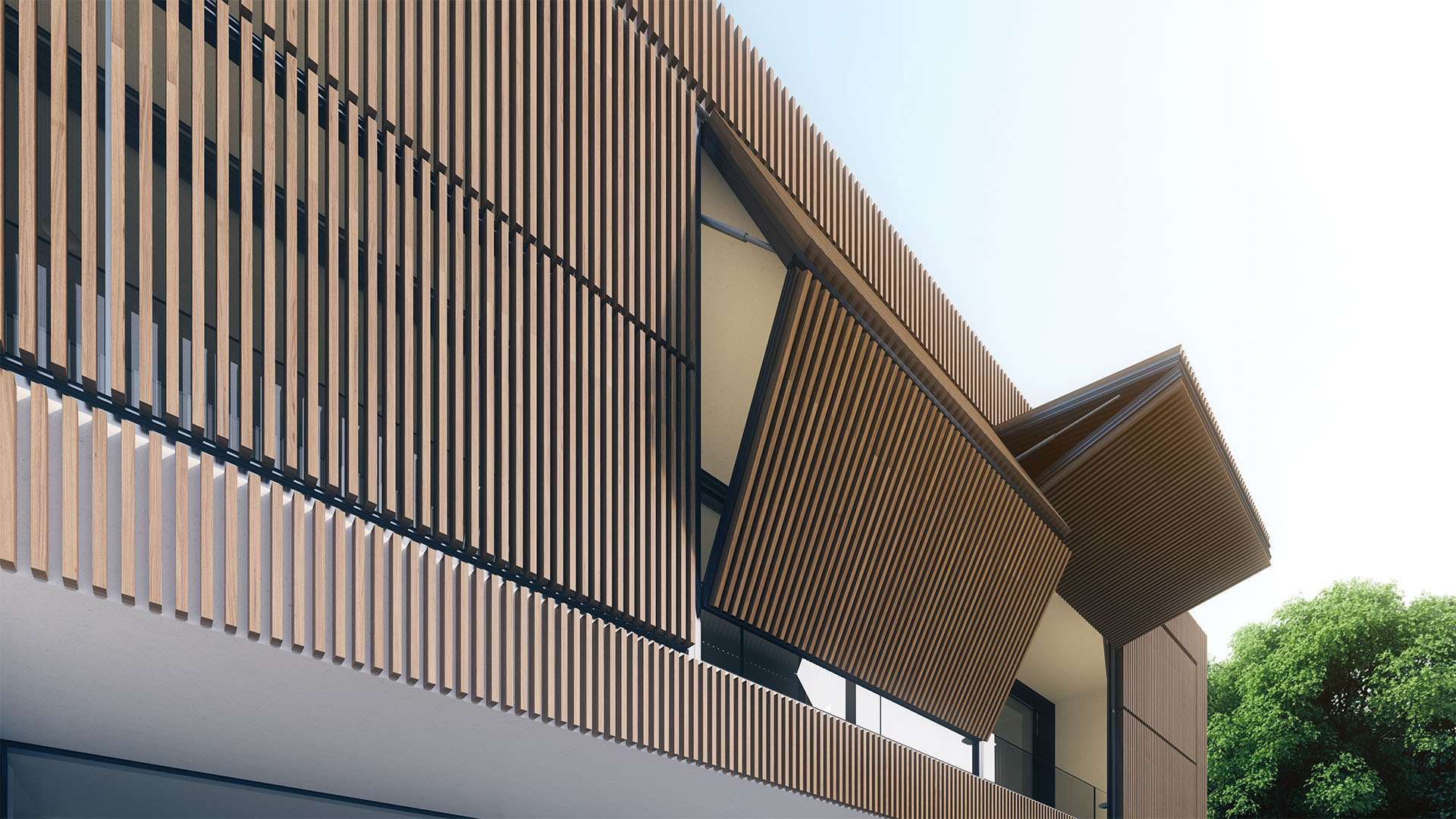

Provision has been taken to allow the use of cladding material on the shading system itself. In addition to the cladding material, the system comes with a variety of blades to be installed vertically or horizontally.
In its standard configuration provision has been taken to allow for the installation of build in fly screen. A complete black out option is also available through the sealing of all the seams. Having a track depth of only 60mm and an installation depth of 150mm makes it the ideal choice for use in tight spaces. For the system to function a top box is not required. The side tracks have been minimized to 41mm in height thus maximizing the internal view angle.
The system can be fitted on existing openings and is able to shade the whole opening from slap to slap. The control can be via a wall mounted switch or a remote control in single or group mode.
INFORMATION
CLADDING SPACE
4 / 10 mm
FRAME PROFILE DEPTH
60 mm
FRAME PROFILE VISIBLE WIDTH
30 / 43 mm
SASH PROFILE DEPTH
60 mm
SASH PROFILE VISIBLE WIDTH
11.5-28 mm
MANUAL MOVEMENT
Not Available
SEALING TYPE
-Gaskets -Nylon Brush
APPLICATIONS
-Exterior -Facades -Residential -Commercial
MANUAL LOCKING SYSTEM
Not Available
CHARACTERISTICS
-Modern Aesthetic -Durable -Weather Protection -Solar Control
SASH PROFILE
- Depth : 60 mm
- Visible width : 11.5-28 mm
DIMENSION (MAX. SASH)
- Width : 4000 mm
- Height : 1500 mm
- Weight : 100 Kg
MOTOR VOLTAGE
24 V(DC)
MOTOR CURRENT
1-20 A
ELECTRIC MOTION
Available
SLIDING ROLLERS
Stainless Steel
ALIGNMENT ROLLERS
Stainless Steel
ROLLING
Side
USE
Facade shading system
BLACKOUT
Available
FLYSCREEN
Available
CLADDING FINISHES
- Louver
- Glass
- Sheet Metal
- Aluminium Composite Panel
- HPL
- Fiber Cement
- Wood
- Ceramic
