GRILLE CEILINGS & WALLS PANELS
GRILLE CEILINGS & WALLS PANELS
Grille panels are excellent visual design elements for great-looking ceilings and walls.
Grille ceiling installation is easy using our attachment clip system to 15/16″ HD T-Bar grid, and both backered and doweled panels are 100% accessible.
Use screws for easy wall panel direct attach installation. Standard rail dimensions and spacings are available on our website.
Grilles can be stained to match a control sample, and perimeter trim options are available. The system offers design flexibility with five grille styles available. Grilles may be paired with acoustical liner for enhanced acoustics.
FEATURES
APPEARANCE & COLOR
- Available in solid wood & veneer in the species shown below*
- Backers and dowels are solid wood painted black as standard
- Rail options: solid wood or veneer; on edge or laid flat
- FSC available
- May contribute to LEED® projects
CORE
Available core materials: -Solid Wood -Particle Board or MDF -Class A Fire Rated Particle Board or MDF
ACOUSTIC ABSORPTION
- NRC varies based on rail and reveal dimension
- Optional features for sound control: Acoustical backer available in 1″ and 2″
INFORMATION
APPLICATIONS
- Residential
- Commercial
- Corporate
CERTIFICATION
Fire Rating: Class A, may contribute to LEED® credits
USE
- Interior walls
- Ceilings
SIZES
- 12″ Standard panel width
- 8′ Standard panel length, with up to 10′ custom lengths
DOWNLOADS
↓ Datasheet
↓ Sample Drawings
FINISHES
Clear lacquer top coat, Class-A varnish, or stained to match
MOUNTING OPTIONS
- Walls: Direct attach with screws
- Ceilings: attachment to 15/16″ HD T-Bar grid with factory-supplied clips
GRILLE WALL INSTALLATION - ASI ARCHITECTURAL
COMMON WOOD SPECIES
Veneer pricing varies from one species to another.
AVAILABLE OPTIONS
GRILLE -BACKER
- Standard Panel Sizes Can Be Field Cut To Fit Irregular Shaped Installations
- Attaches To Hd 15/16” T-bar Grid With Clips For 100% Accessibility
- Custom Rail Sizes And Spacing Available In 12” Modules
- Backers Are Not Visible When Acoustical Backer Is Used
GRILLE - BACKER AND DOWEL
- Panels Are Factory Made To Fit The Installations
- Attaches To Hd 15/16” T-bar Grid With Clips For 100% Accessibility
- Custom Rail Sizes And Spacing Available In 12” Modules
- Backers And Dowels Secure Larger Rail Sizes
- Dowels Are Visible
DOWEL
- Panels Are Factory Made To Fit The Installations
- Attaches To Hd 15/16” T-bar Grid With Clips For 100% Accessibility
- Custom Rail Sizes And Spacing Available In 12” Modules
- Dowels Are Visible

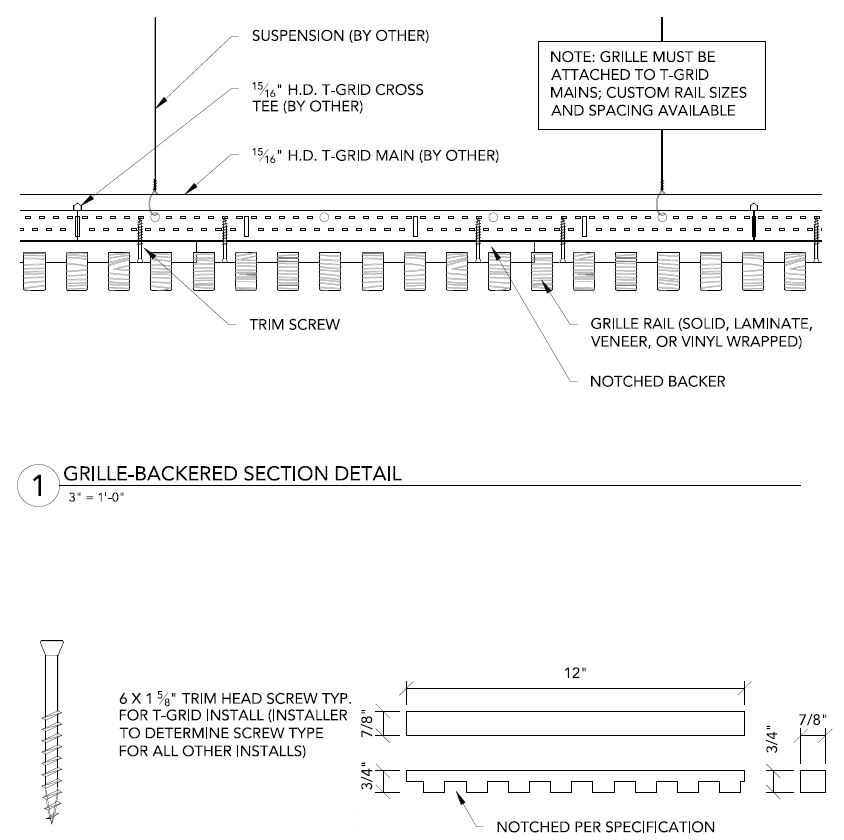

NOTCHED BACKER
- Panels Are Factory Made To Fit The Installations
- Attaches To Hd 15/16” T-bar Grid With Clips For 100% Accessibility
- Custom Rail Sizes And Spacing Available In 12” Modules
- Notched Backers Secure Larger Rail Sizes
TEGULAR LAY IN
- Standard Panel Sizes Can Be Field Cut To Fit Irregular Shaped Installations
- Lays In To Hd 15/16” T-bar Grid For 100% Accessibility
- Custom Rail Sizes And Spacing Available In 23” Modules
