GLUED LAMINATED TIMBER BLOCK
GLUED LAMINATED TIMBER BLOCK
A Strong Composite
Regarding the component width glued laminated timber offers limited possibilities - a fact which is due to the raw timber's limited width.
Particularly for those constructions which are under high static load the market standard widths often are insufficient.Therefore, we glue together timber construction parts and other composite sections to so-called blocks which we develop according to the individual project requirements in cooperation with our customers.
For the production of bigger component widths, we can glue together two or more glued laminated beams to a solid block.This is the classic method. Depending on the project and the respective component requirements we also produce sections made up from lamellas which are arranged in a staggered manner.
INFORMATION
FIRE BEHAVIOUR
- D-s2, d0
- D fl -s1 when used as floor covering
THERMAL CONDUCTIVITY
l = 0.13 W/mK
USES
- Columns
- Roof structures also as visible components
- Main beams with large spans also with special shapes
- Floor structures or as girder grid system
DIFFUSION RESISTANCE
According to EN ISO 10456 m = 50 (dry) to 20 (wet)
SURFACE QUALITIES
- Visual quality
- Industrial quality
SHRINKAGE AND SWELLING BEHAVIOUR
- Perpendicular to the grain direction : au,90 = 0.24% per 1% change in moisture content
- Parallel to the grain direction : au,0 = 0.01% per 1% change in moisture content
FORMALDEHYDE EMISSIONS
E1 according to EN 717-1 (<0.1 ppm)
STRENGTH CLASSES
- GL24h GL24c up to a beam width of 280 mm
- GL28h GL28c up to a beam width of 280 mm
- GL30h GL30c up to a beam width of 240 mm
- GL32h GL32c up to a beam width of 200 mm
STRUCTURAL FIRE RESISTANCE
0.70 mm/min in accordance to EN 1995-1-2
MATERIAL
Wood
WOOD SPECIES
- Spruce/fir
- Larch
- Pine
- Other wood species on request
SERVICE CLASSES (EN 1995-1-1)
- Service class 1 heated interior
- Service class 2 roofed outdoor area
- Service class 3 Exposed to the elements
ADVANTAGES
- Flexible component widths
- Aesthetically appealing
- Design and geometric flexibility
- Increased fire resistance due to the dimension
- Innovation at its best: direct, pre-cambered and with special shapes
- Large spans
- High loadbearing capacity with a low density
- High dimensional stability through bonding
- Can be assembled with simple tools
- High fire and chemical resistance
- High thermal insulation properties
- Natural, renewable and 100% recyclable building material
- Positive impacts on climate protection through storage of carbon dioxide (CO2)
AREAS OF APPLICATION
- Multistory timber construction
- Multistory houses made from timber
- Wide span widths
- Industrial and commercial buildings
- Constructions under a high static load
CERTIFICATION
EN 14080
DENSITY
For spruce, and depending on the strength class, approximately 400 kg/m³ to 500 kg/m³ in average
BONDING
Melamine resin adhesive with bright glue line, adhesive type I according to EN 301 approved for bonding loadbearing and non-loadbearing timber components, both indoors and outdoors
SUSTAINABILITY
The HASSLACHER Group stands for a careful use of wood as a resource. Our raw materials come from sustainable and controlled forestry. Our locations are certified according to the strict PEFC TM standards.
CROSS SECTIONS
- Height : 80 to 1,280 mm in 40 mm steps Special components up to 4,000 mm are possible
- Width : 80 mm to 280 mm in 20 mm steps Any desired extension is possible through block bonding
- Length : up to 27 m; or up to 42 m as special components
LAMELLA THICKNESS
- Maximum lamella thicknesses: 45 mm
- Maximum service class 3 lamella thicknesses: 35 mm (also, 40 mm to 60,000 mm² of cross sectional area)
- For curved/arched special components: Lamella thickness from 6 to 45 mm Rod bonding for three-dimensional shaped components
COMPONENTS
SINGLE TAPERED BEAMS
- Beam length : up to 40 m
- Width: 80 to 280 mm
- Block bonding : >280 mm possible on request
- Heights: up to 4,000 mm
CURVED BEAMS OR PRE-CAMBERED PARALLEL BEAMS
- Beam length : up to 40 m
- Width : 80 to 280 mm
- Block bonding : >280 mm possible on request
- Heights : up to 4,000 mm

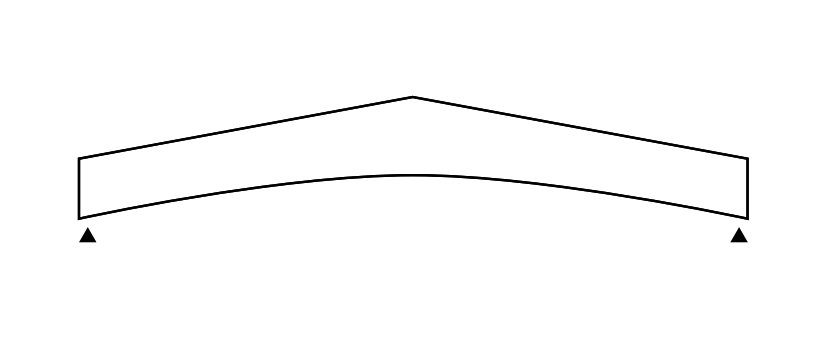

DOUBLE-TAPERED OR PITCHED CAMBERED BEAMS
- Beam length : up to 40 m
- Width 80 to 280 mm
- Block bonding : >280 mm possible on request
- Heights : up to 4,000 mm
FISH BEAMS
- Beam length: up to 40 m
- Width: 80 to 280 mm
- Block bonding: >280 mm possible on request
- Heights: up to 4,000 mm
TRUSSED GIRDERS
- Span lengths : >40 m
- Width : 80 to 280 mm
- Block bonding : >280 mm possible on request
- Heights : >4,000 mm are possible
FREE FORMS
- Lengths : up to 40 m
- Widths : up to 280 mm
- Block bonding : >280 mm possible on request
- Heights : up to 4,000 mm
