CEILING AND WALL CLADDING - LINEAR
Our Linear wood systems are available in two types, Tongue and Groove (T&G) and Reveal.
Linear T&G planks come in standard widths of 4″ or 5″ face and have three available edge options. Linear Reveal planks come in standard modules of 4″ or 6″ and have three available reveal widths. Linear Reveal includes either a felt or ABS plastic filler strip to conceal the hardware and plenum.
For projects requiring acoustical absorption, acoustical backer may be installed above. Perimeter trim options are also available. Attachment clips easily snap to 15/16″ HD T-bar grid. Direct attach clips can be used to install directly onto walls and ceilings.
information
FORMAT
Planks
PRODUCTION
Made in USA
USES
Interior walls and ceilings
MOUNTING OPTIONS
- Direct attach clip
- HD T-bar grid clip
CERTIFICATION
Fire Rating : Class A, may contribute to LEED® credits
DOWNLOADS
↓ Data Sheet
ACOUSTICAL ABSORPTION
Optional features for sound control : Acoustical backer available in 1" and 2"
APPLICATIONS
-Residential
-Commercial
-Corporate
CORE / FIRE RATING
Available core materials are :
- Class A Fire Rated Particle Board
- Class A Fire Rated MDF
- Moisture-resistant MDF for exterior applications
CHARACTERISTICS
- Light Weight
- Impact Resistant
- Rigid
- Various Finish Options
- Optional Acoustical Backer
SIZES
- Standard 3/4" thickness
- Linear planks made with solid wood have a max width of 5" and are provided in random lengths of 4' – 10'
- Linear planks made with veneer are available in 3" – 8" widths or modules in 8' – 10' lengths
APPEARANCE & COLOR
- Available in solid or wood veneer in the species shown below*
- Linear T&G is available in three edge options : V-Groove, Flat V-Groove, and Butt Joint
- Linear reveal is available in three reveal width options : 1/4", 1/2", 3/4"
- Perimeter trim up to 6" available
- Felt or ABS filler strips to enhance reveals between planks
- FSC available
- May contribute to LEED® projects
- Finishes : Clear lacquer top coat, Class-A varnish, or stained to match
- Touch-up finish available for field application
WOODS COLORS
-Caramelized Bamboo -Natural Bamboo -Ash -Maple -Beech -Walnut -Red Oak -White Oak - Hickory -Cherry
AVAILABLE OPTIONS

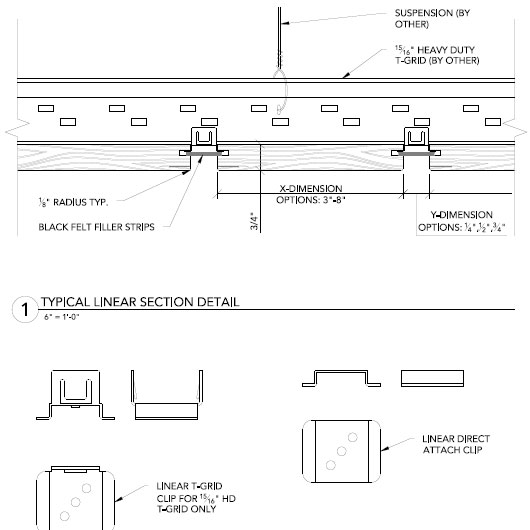

LINEAR REVEAL
For Walls And Ceilings
- Planks Are Field Cut To Fit Irregular Installations
- Planks Provide A Monolithic Appearance With Staggered End Joints
- Custom Widths And Reveals Are Available
- Custom Stains And Species Available
RESOURCE ( STANDARD )
- Linear Reveal Standard Details
- Linear Reveal Solid Wood Standard Details
RESOURCE ( INSTRUCTIONS )
Linear Reveal Installation Instructions
RESOURCE ( CSI SPECIFICATION )
- Linear Reveal Wood Ceiling Panel CSI Spec
- Linear Reveal Wood Wall Panel CSI Spec

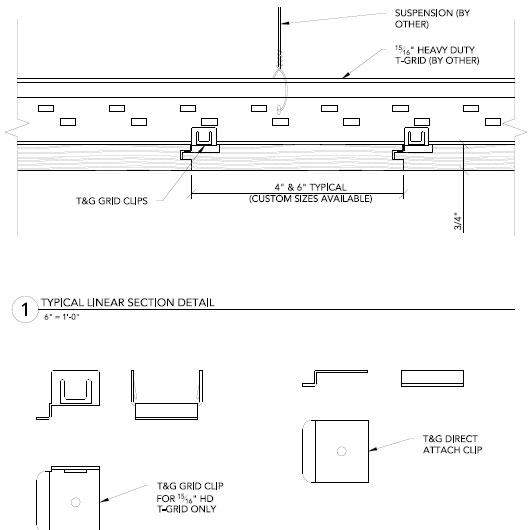

LINEAR TONGUE AND GROOVE
For Walls And Ceilings
- Planks Are Field Cut To Fit Irregular Installations
- Planks Can Provide A Traditional Look In V-groove Edge
- Planks Can Provide A Modern Look In Butt Joint Edge
- Custom Widths Are Available
- Custom Stains And Species Available
RESOURCE ( Standard details )
Linear Tongue and Groove Standard Details
RESOURCE ( Testing )
Coming Soon
RESOURCE ( Installation instructions)
Linear Tongue and Groove Installation Instructions
