CHALLENGER 7 BROOMS MACHINE
CHALLENGER 7 BROOMS MACHINE
The Challenger 7 front-mounted broom exhibits all of the high-end features you could expect from a self propelled broom. Serving as a pleasurable amenity, the quick-change core system allows the brush to be changed swiftly with no tools required.

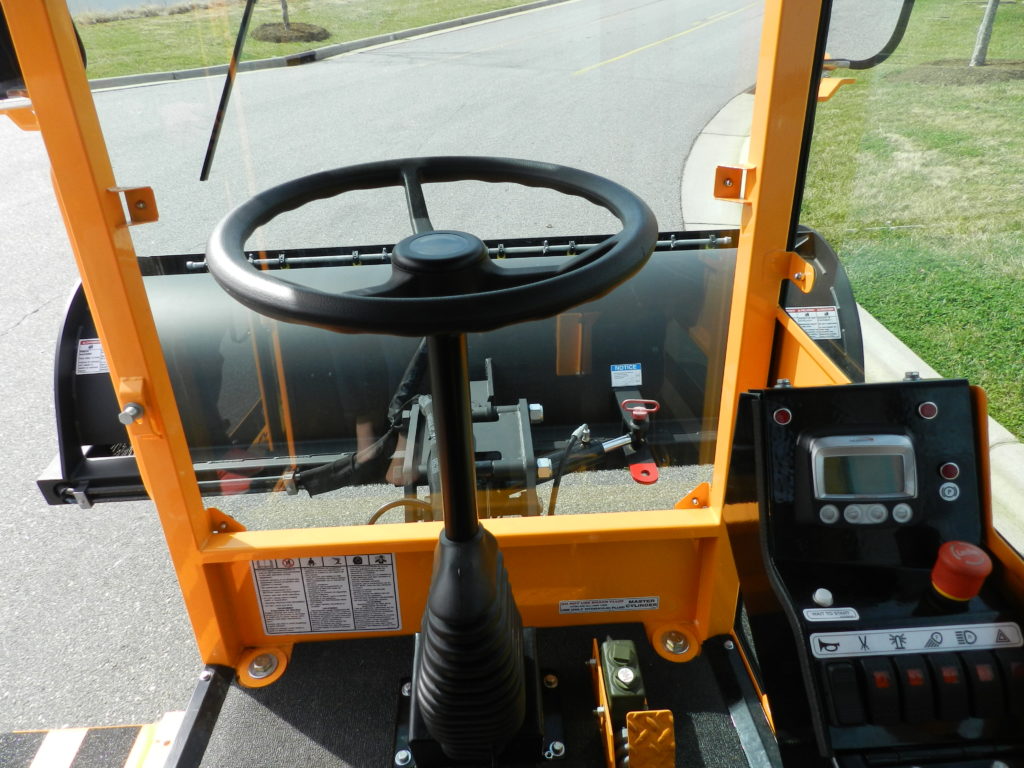

Ergonomic joystick controls provide simple-to-use travel and broom functions while also granting a 3 foot turning radius for the ultimate maneuverability. In addition to an extra-heavy duty frame, the Challenger 7 features a high-raise lift to ensure easy trailer loading and unloading.
information
ENGINE
- Cummins Turbocharged Diesel, Tier 4 Final
– 74 hp (55 kw)
REAR AXLE
- Heavy-duty Truck Type, Oscillating
FRONT AXLE
- Heavy-duty, limited slip differential
- Tires: 8.75 x 15 in, load range E, highway tread
- Rim: 4 steel disc type, 15 x 6.57 in
CAPACITIES
- Fuel : 35 gallons (132 l)
- Hydraulic reservoir : 24 gallons (91 l
INSTRUMENTATION
- PV 101 Digital Display Includes: Oil Pressure, Water Temperature, Voltmeter, Tachometer, Hour Meter
- Fuel gauge
HYDRAULIC SYSTEM
- Two separate circuits, one for travel, one for brush control and power steering
BRAKES
- Dynamic braking with two wheel drive axle disc type brakes in oil bath
- Hand operated parking brake

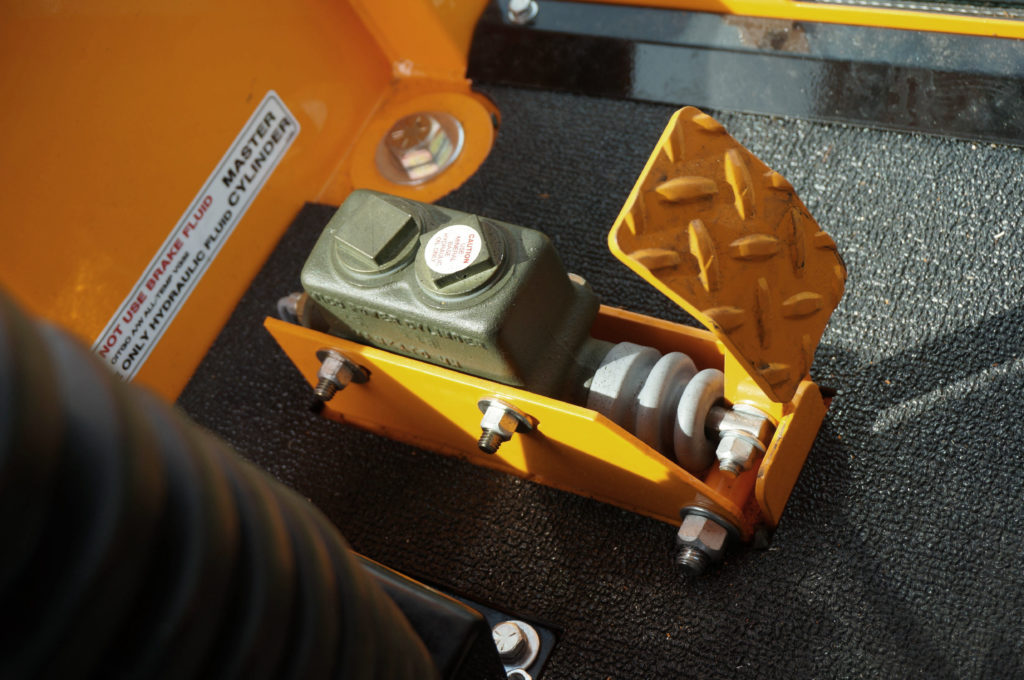

- Foot operated de-stroke breaking of the hydrostatic drive
TRANSMISSION
- Hydrostatic drive
- Speed infinitely variable, 0 to 15 mph (24 kph)
DIMENSIONS
- Length : 18’ 6” with water 15’ 3” without water
- Width : 8’ 6” not tilted
- Height : 9’ 5” with beacon
- 8’ 4” without beacon
- Wheelbase : 5’ 5”
- Turning radius : 3’
- Total weight : 7,500 lbs
MAIN FRAME
- .75 x 12” (19 x 305 mm) plate steel and 2” x 6”(51 x 152 mm) rectangular A 500 tubing with .25” (6 mm) wall thickness
BRUSH
-Joystick control of swing and up/float motions -Variable down pressure, brush rotation, speed control -Quick change design allows operator to change out brush quickly without tools -Driven hydraulic by separate pump and heavy duty motor, independent of propulsion circui
OPTIONAL EQUIPMENT
- Cab air filtration and pressure monitor system (MERV 16 rated)
- 8’ heavy-duty frame, poly/steel tube brush
- Combination poly wafers or poly/steel wafers
- Rear wiper and washer assembly
- Front windshield washer, wiper is standard
- Suspension seat assembly w/ safety belt
- Back up/reverse camera w. in-cab color display
- Radio/CD/Bluetooth w/ dual speakers & remote
- Cold weather package, block heater
- Additional options available
BRUSH LOCATION
Front-Mount Brush Location
BRUSH FRAME

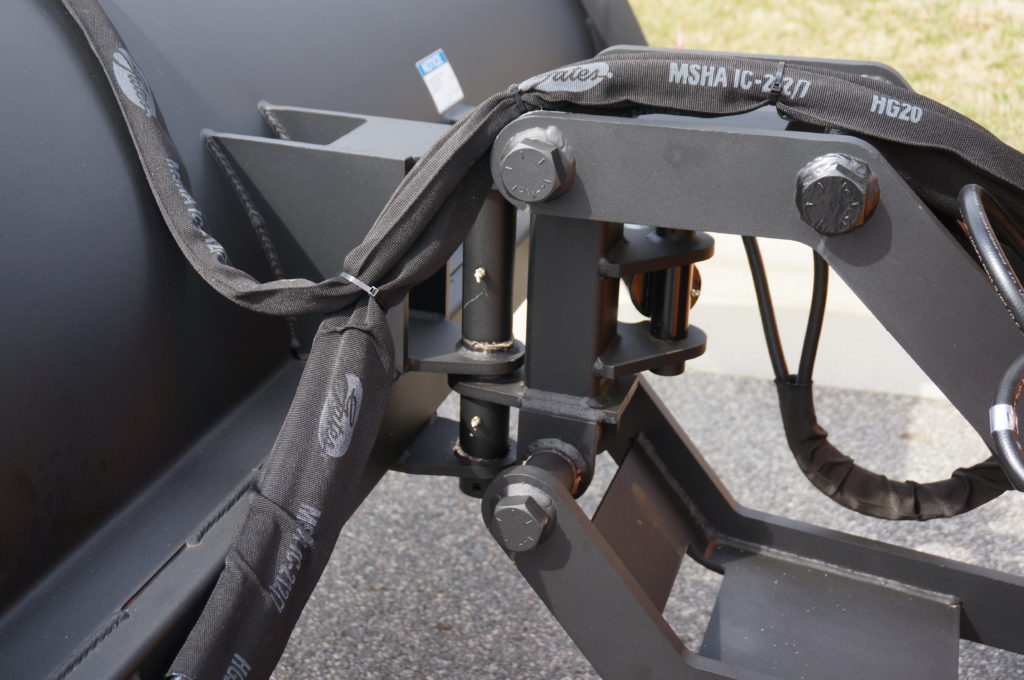

- 7’ 6” (2.28 m) heavy-duty frame with poly-steel Choices tube brush, 32” (.81 m) diameter, 7’ 6” (2.28 m) long, sweep angle: 350 left or right, variable speed 0 to 180 rpm, brush frame is welded, heavy gauge steel
- 8’ (2.43 m) heavy-duty frame with poly-steel tube brush, 32” (.81 m) diameter, 8’ (2.43 m) long, sweep angle: 350 left or right, variable speed 0 to 180 rpm, brush frame is welded, heavy gauge steel
ADDITIONAL STANDARD

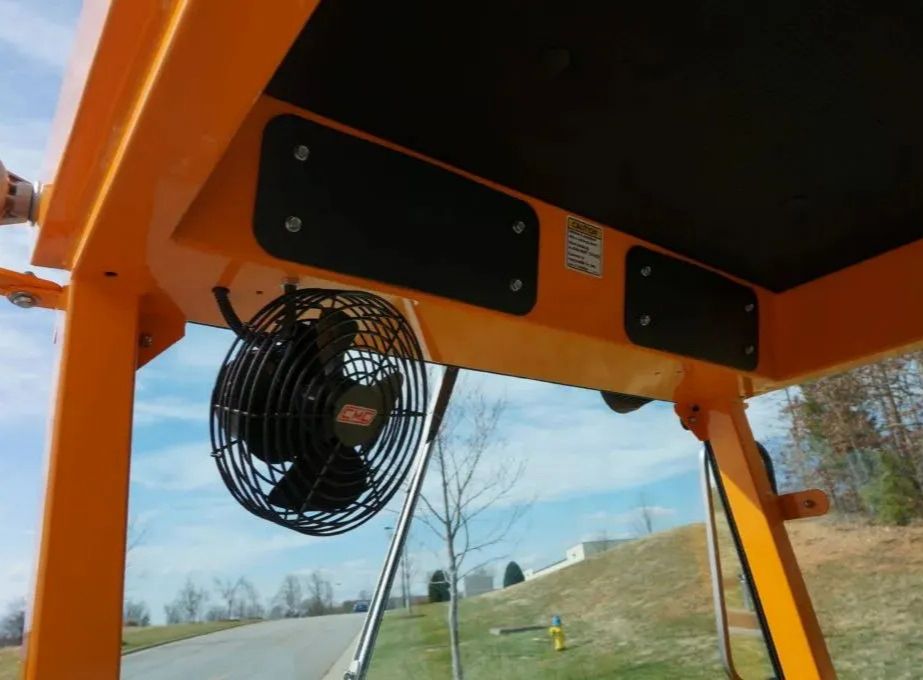

- Fully enclosed ROPS cab with air conditioner, heater and defroster
- Seat with safety belt, horn, dual west coast style mirrors and dome light
- Tinted safety glass
- Rear-mounted brush watering system, 150 gallon tank (568 l) wuth brush spraybar, electric pump and filter
- Two LED head lights, stop, turn, tail, rear working lights and amber strobe light
- Back-up alarm
- Toolbox
PERFORMANCE FEATURES
- 74 hp (55 kw) Cummins Tier 4 Final Diesel Engine
- 7,500 lbs (3,401 kg) weight
- Choice of 7’ 6” (2.28 m) or 8’ (2.43 m) Heavy-Duty Frame with Poly-Steel Tube Brush
- 150 gallons (568 l) Rear-Mounted Brush Watering System

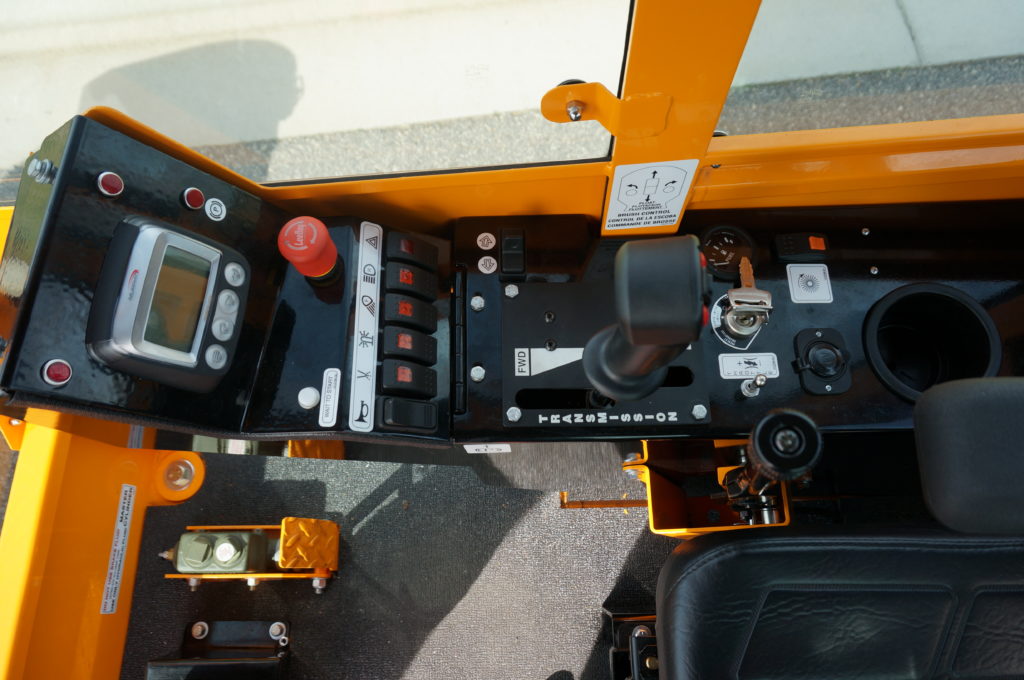

- Joystick Control for Travel and Broom Functions
- Hydrostatic Drive
- Rear Steering for 3’ (.91 m) Turning Radius
- Variable Brush Down-Pressure and Brush Speed Control
- Single Door ROPS Climate-Controlled Cab
