Piscine Laghetto Playa
PLAYA pool
PLAYA POOL
Playa is an exceedingly elegant mini-pool that exemplifies outstanding Italian design.
Refined and modular, it is perfect for a terrace. In the garden it becomes a piece of furniture and inside it is a real water-lounge.
Iconic design and Italian style, it offers moments of relaxation and pleasure with the gentle air massage, the warm water, the hand-woven fibre which is pleasant to the touch.
In fact, it offers the pleasure of total well-being which can be enjoyed both inside and outside the home.
INFORMATION
FACING
Integral external facing in hand-woven synthetic fibre over a painted aluminium frame
EQUIPMENT
Pool, filtration, LED light, isothermal cover (heater and bubbles version), pool vacuum cleaner
SYSTEMS
12V pump
MODEL
Playa
POOL LINER COLOURS
Bianco
POOL LINER
Polyester and highly resistant polymer fibres
TYPE
Mini-pool
STRUCTURE
Structure in zinc-magnesium steel and parts in Stainless Steel. ZMSV-TEC technology
OPTIONS
- Playa cushion
- Cover
INSTALLATION
Above-ground
VERSIONS
Mini-pool-Heater and Bubbles
FACING COLOURS
- Coffee
- Laghetto White
- Grey
SIZES
- 220x220 (PLAYA1)
- 320x220 (PLAYA2)
- 420x220 (PLAYA3)
DIMENSIONS
| MOD. | WATER’S SURFACE AREA (m) | OVERALL DIMENSIONS (m) | WATER HEIGHT (cm) | OVERALL HEIGHT (cm) | VOLUME (l) |
|---|---|---|---|---|---|
| Playa 1 | 1.40 x 1.80 | 2.20 x 2.20 | 55 | 70 | 1200 |
| Playa 2 | 2.40 x 1.80 | 3.20 x 2.20 | 55 | 70 | 2000 |
| Playa 3 | 3.40 x 1.80 | 4.20 x 2.20 | 55 | 70 | 3000 |
COLORS
COLORS
| MOD. | MINI-POOL | AVAILABLE COLOURS | WATER HEIGHT (cm) | OVERALL HEIGHT (cm) |
|---|---|---|---|---|
| Playa 1 | Yes | - Laghetto White - Grey | Yes | - Laghetto White - Grey - Coffee |
| Playa 2 | Yes | - Laghetto White - Grey | Yes | - Laghetto White - Grey - Coffee |
| Playa 3 | Not Available | Not Available | Yes | - Laghetto White - Grey - Coffee |
PLAYA PANELLING – COLOUR
The aesthetic finish of Playa and Playa Living is achieved with panelling in hand-woven synthetic fibre over an aluminium frame. In this model the finish integrates the vertical panel and border in one piece, for an utterly clean and modern design.

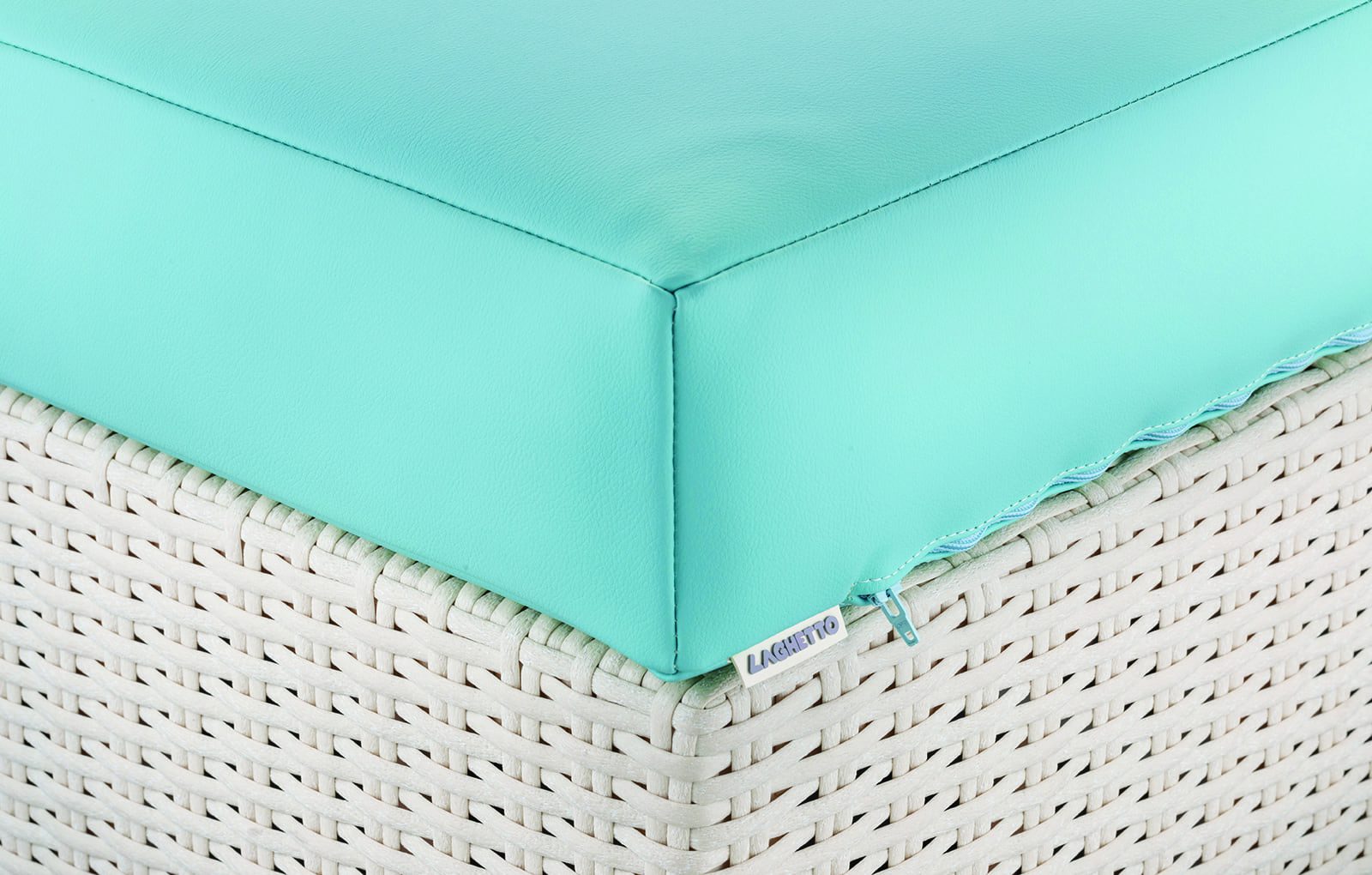

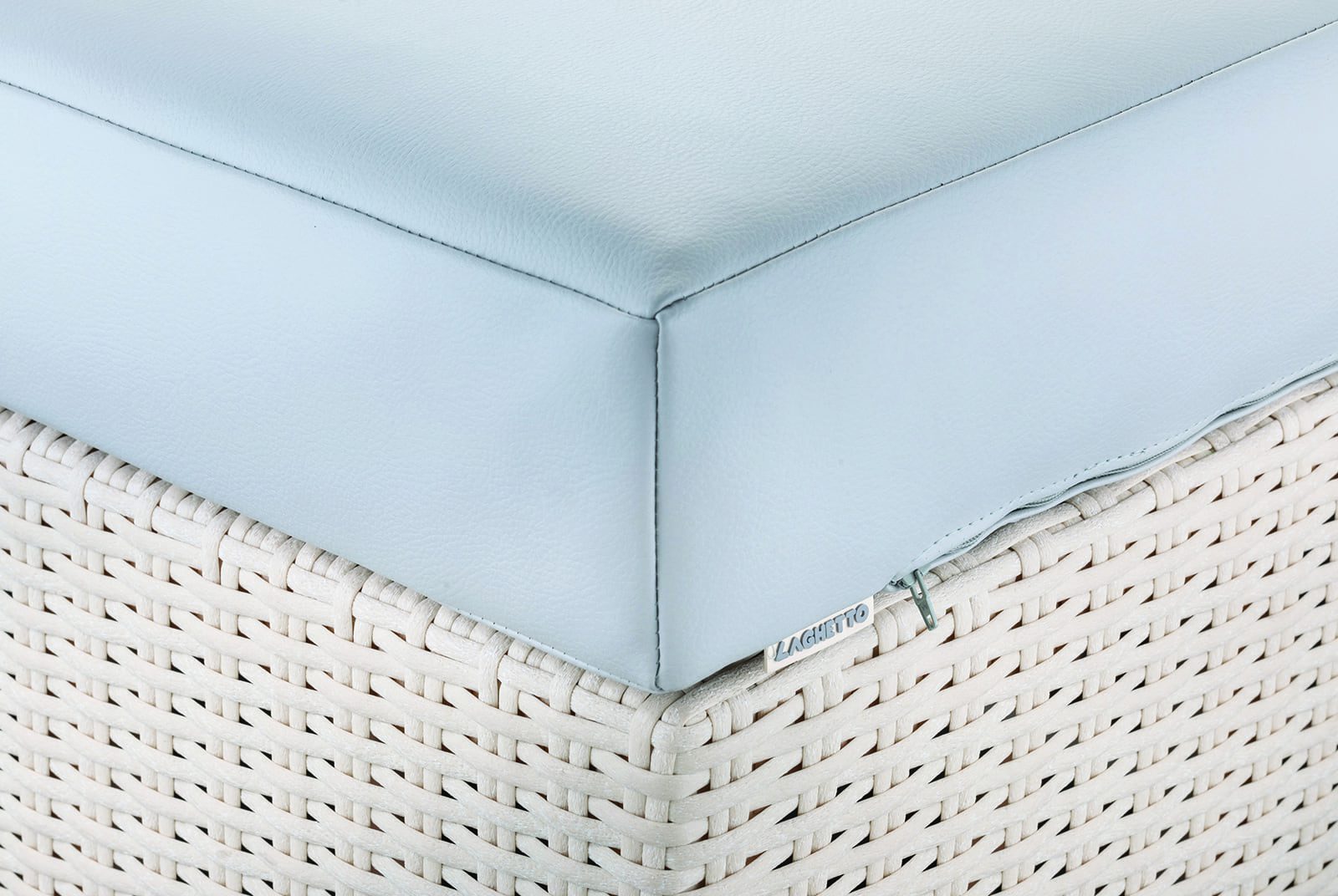

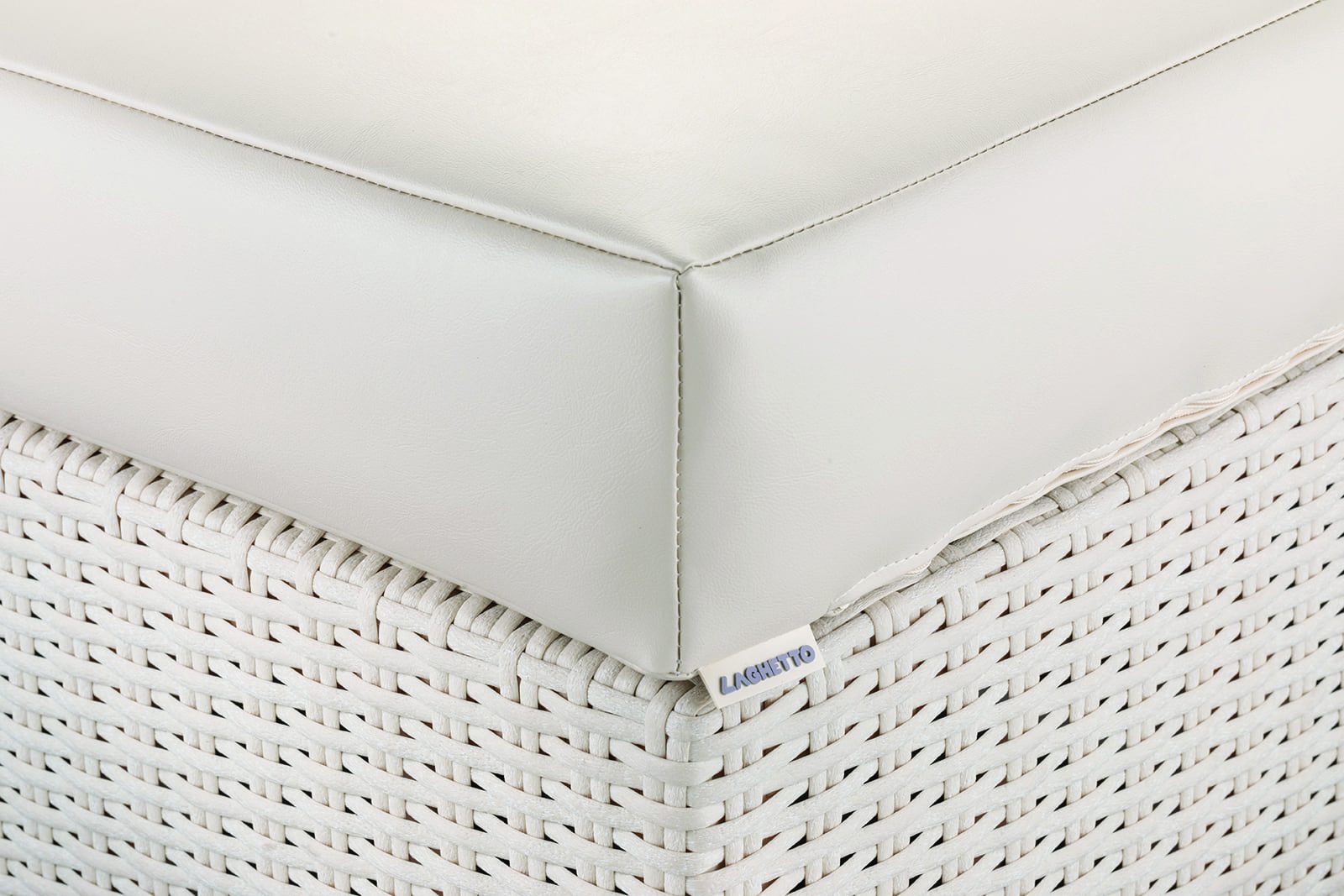

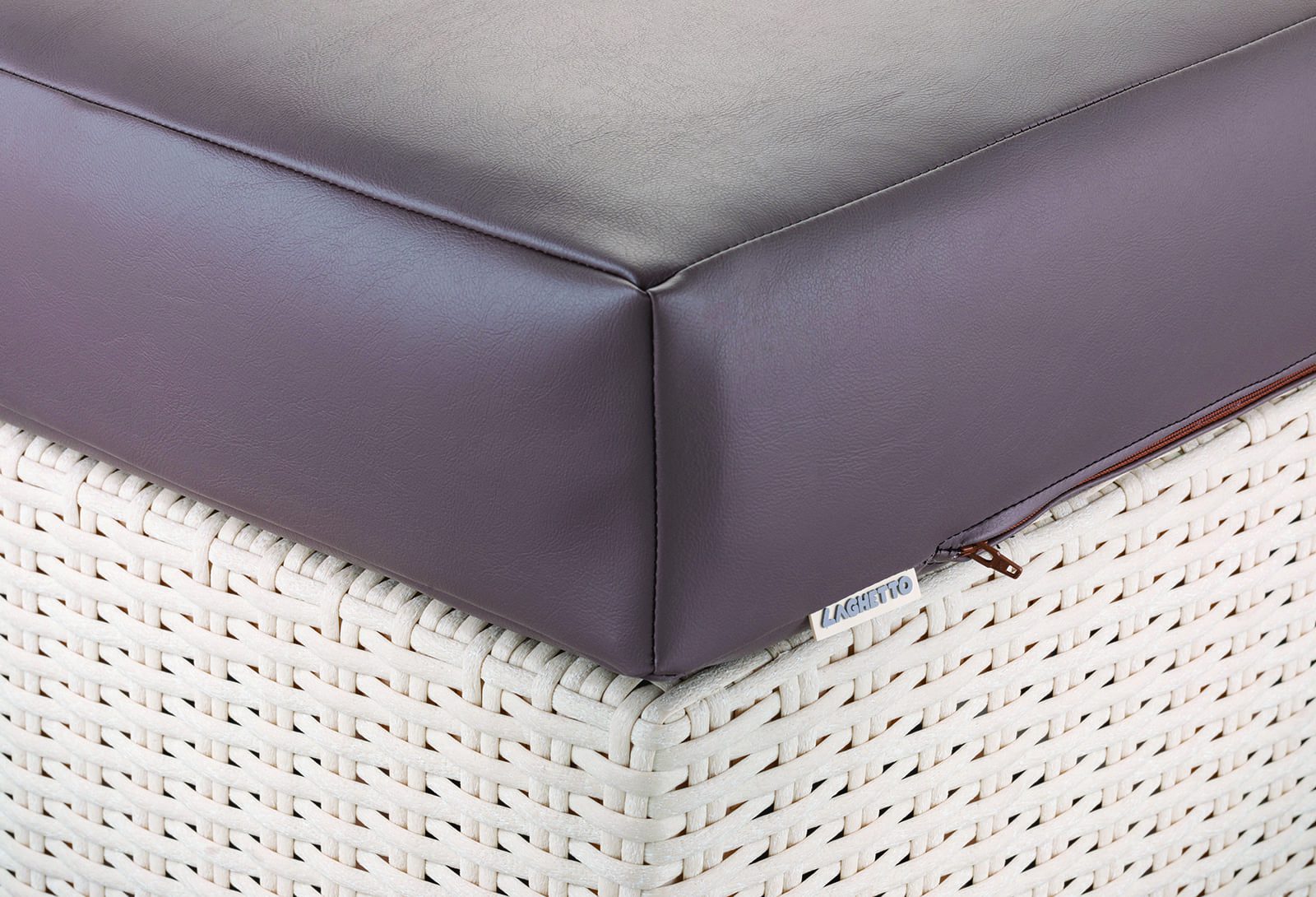

CUSHIONS COLOUR
The Playa mini-pool can be supplied, as an option, with the Playa cushion and Living cushions which make the product true outdoor furniture. The Playa cushion is positioned over the technical compartment for sunbathing, whilst all the Living elements can be covered with Living cushions in the same material.
SYSTEMS
LIGHT AND BUBBLE BUTTONS
In the more exclusive version of Playa, with the heater and bubbles, you can control the lighting and hydromassage functions using the buttons on the pool liner, even directly from in the pool, in complete safety.
HYDROMASSAGE AREA
Playa has an air massage area with a system completely hidden in the padded bottom of the mini-pool. No visible jet, no pre-constructed seat, all for the greatest freedom of movement.
SKIMMER
The Playa filtration system works through a wall skimmer with pre-filter and high capacity cartridge filter. In the mini-pool only version, without hydromassage, the water is circulated using a synchronous 12 V pump with class II permanent magnet of 120 W with a maximum capacity of 5500 l / h.
LED SPOTLIGHT
Playa comes with a white LED spotlight, diameter 55 mm, 12 V power supply, 3.6 W power consumption, IPX8 degree of protection. This type of light combines unparalleled light output with extremely low power consumption and unrivalled durability.
ELECTRONIC CONTROL UNIT BOX
In the Heater and Bubbles version, Playa has a control unit complete with keypad and display to manage the temperature, filtration cycles, blower and LED light. Technical compartment in ABS with 220 V, 115 W induction circulation pump, 230 V, 2000 W electric heater, 220 V blower with 700 W power consumption in class II IPX5.
ACCESSORIES
ISOTHERMAL COVER
Supplied as standard with the Heater and Bubbles version of Playa, the isothermal cover allows, when the heater is on, the desired temperature to be reached quickly and easily.
POOL VACUUM CLEANER SYSTEM
Like all Piscine Laghetto kits, the Playa line includes a manual pool vacuum cleaner system - to be attached to the skimmer- to keep the bottom of the pool clean. This consists of a suction head, handles and made-to-measure PVC tube.
COVER
The standard playa cover (optional) is made in pvc-coated trevira fabric and has vent valves.
