Upsideinnovations Entryway Canopy
ENTRYWAY CANOPY
ENTRYWAY CANOPY
Prefabricated Entryway Canopy
Upside Innovations manufactures prefabricated, commercial entry door canopies that feature internal drainage to keep your entryways dry. If you’re looking for an overhead canopy without posts, check out our commercial metal awnings.
FEATURES
100% ALUMINUM – LONG LASTING
The entire line of APEX products will never rust, warp, or rot. All components are low maintenance and will last much longer than wood or steel.
HPD/LEED/ESG
Prefabricated systems are typically made with 6061 and 6063 aluminum alloys containing ≥99% and ≥50% recycled content. Some prefabricated systems can help contribute to several LEED v4.1 credits and other green building rating systems.
CUSTOM LAYOUTS
Our team of engineers will design an entryway canopy configuration layout just for you, and professional engineer stamps are available.
EASY INSTALLATION
Our commercial canopies are modular and bolt together easily.
INTERNAL DRAINAGE SYSTEM
Canopies are designed with a discreet internal gutter and drainage system to divert water away from walkways.
RECONFIGURABLE
Since the system is modular, ramps, stairs, and railings can be reused or reconfigured as your needs change.
MULTIPLE COLOR OPTIONS
We offer many color options so that your covered canopy walkway can match the aesthetics of your property.
INFORMATION
CUTTER
4″
FACIA
6″
POSTS
4″ x 4″
MATERIAL

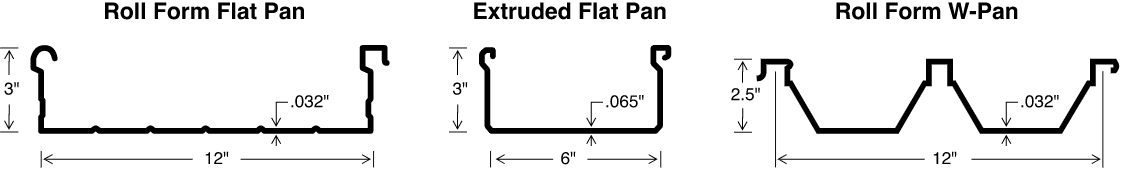

Aluminum Roll Form Flat Pan, Roll form W-Pan, or Extruded Flat Pan
POST SPACING
12″ widthwise and lengthwise between posts
COLOR
What is standard, powder coating and other colors are available
DURABLE
100% industrial-grade aluminum that won’t rust, warp, or rot.
DIRECTION CHANGE
Standard: 90 degree (custom angles available)
WEATHER
Designed to meet local snow and wind load requirements
FAST INSTALLATION
Prefabricated and bolts together on-site with no welding required.
OVERHANG
1′ overhang on both buildings (applies to canopies between buildings)
ALWAYS COMPLIANT
Designed to your needs and complies with IBC and local building codes.
CUSTOM COLORS & LAYOUTS
We can design a prefabricated entry door canopy for properties ranging from single-story to complex, multi-story applications. Professional engineer stamps are available.
INTERNAL DRAINAGE
Designed with a discrete internal drainage system to ensure that entryways stay dry.
PLAN
SPAN
10′ maximum length between buildings with no posts. Buildings must have proper supports (blocking, header board…)
WE INSTALL
Make sure your project goes smoothly with our professional installation crew.
DIMENSIONS
- Length Any Length
- Width Maximum : 12′
HOW THE DRAINAGE WORKS
With a modular design, all entry canopies have built-in gutters. Using canopy posts as downspouts, water drains from post outlets, smartly channeling water away from walkways. An integrated deflector located in the post outlet controls the water flow. Built with 100% industrial-grade aluminum, the canopy and posts will not rust, deform, or rot.
