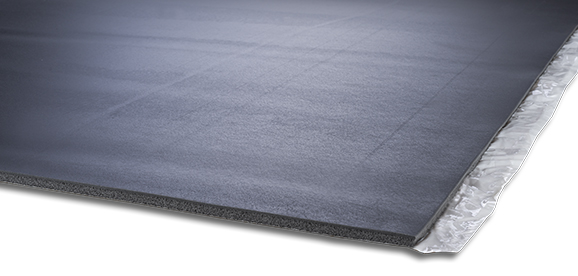

Isolmant Telogomma Tubi Insulation Cover
TELOGOMMA TUBI INSULATION COVER
ISOLMANT TELOGOMMA TUBI
Insulation Cover
Malleable product that is made of Isolmant Telogomma, suitably calibrated, and joined with a special 10 mm expanded closedcell rubber mixed with 10 mm elastic polyolefin polymers.
In particular, this Isolmant Telogomma layer gives the product a high mass that increases its soundproofing performance, while the special expanded rubber dampens vibrations and prevents rigid contact of the pipes with the wall components. Adhesive film on one layer. Total thickness 12 mm.
Isolmant Telogomma Tubi is a malleable insulation cover for pipes, drain columns and ventilation ducts. It performs well as an acoustic and thermal insulator, as well as a vibration damper. Thanks to its conformability and to the adhesive side it can easily be applied on non-planar surfaces.
INFORMATION
TYPE
Insulation Cover
PRODUCTION
Made in Italy
THICKNESS
12 mm
SOUND INSULATION
RW = 29 db (1)
THERMAL RESISTANCE
RT = 0.293 m2 k/w
PACKAGING
Single Roll
SIZE
Rolls of 1 m x 3 m (H x L) = 3 m2
DOWNLOADS
↓ Technical Data Sheet
↓ Catalogs
ITEM SPECIFICATIONS
Heavy layer elasto-dynamic layer based on special compound epdm rubber with mineral fillers, free from bitumen and halogens, with calibrated thickness coupled with expanded closed-cell rubber mixed with 10 mm elastic polyolefin polymers. Adhesive film on one layer. Nominal thickness 12 mm.
ADVANTAGES
- Inalterable over time
- Unlimited duration
- Heavy Layer, sound-insulating and soundproofing product
- Easy and quick to install on site thanks to the adhesive side and its conformability.
INSTALLATION
To prevent the noise generated by drainage ducts from passing through the walls, these pipes must be coated with sound-proofing and massive material. Isolmant telogomma tubi should be installed with the adhesive side towards the pipes. This product is ideal for wrapping pipes and ensuring high noise reduction, as well avoiding rigid pipe contact with wall components (for this function it is advisable to wrap the pipes even when using silenced pipes).

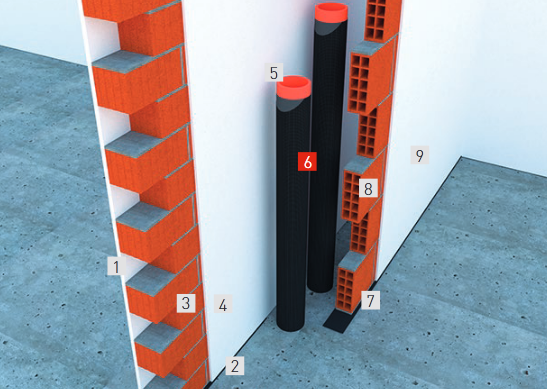

1. Plaster 2. Isolmant Fascia Tagliamuro 3. Wall 4. Mortar 5. Pipes 6. Telo soundproofing Isolmant Telo-gomma Tubi
7. Isolmant Fascia Tagliamuro 8. Wall 9. Plaster
