PolySto FRP Sheets
FRP SHEETS
FRP SHEETS
The PolySto FRP sheet is a Fibreglass Reinforced mono composite Polyester sheet, opaque, available with a smooth or embossed surface. The PolySto FRP sheet is the base for the products InsuPanel, RenoPanel, RenoCemPanel, HygiCeiling and HygiWall.
The PolySto FRP sheets are available with different surfaces:
- Embossed
- Smooth
- Smooth Extra Matt
- Smooth Extra Glossy
INFORMATION
COMPRESSION STRENGTH
750 Kg/cm²
COMPRESSION UNIT
7240 Kg/cm²
LENGHT/WIDTH TOLERANCE
0.2 x 0.5 %
BENDING UNIT
17360 Kg/cm²
IMPACT STRENGTH
180 J/m
LINEAR EXPANSION RATE
0.025 mm/m°C
TRACTION STRENGTH
314 Kg/cm²
TENSIL STRENGTH
36273 Kg/cm²
FLEXURAL STRENGTH
694 Kg/cm²
DOWNLOAD
FIRE CLASS
Euro class E
or Euro Class B-s2, d0
TEMPERATURE RANGE
-60 °C / +100 °C (suitable profiles are required above 60°C)
ELONGATION
1.55 %
THICKNESS TOLERANCE
Approx. 10 %
COLORS
Standard Ral 9016 (Hygienic White), Other Colours On Demand
FEATURES
-Food Safe -Chemical Resistant
-Bacteriostatic -Water Resistant -Strong -Quick and Easy to install -Non-corrosive -Resistant to high Pressure Cleaning
PHYSICAL PROPERTIES
- Hardness ASTM D-2583 : 30 - 40 Barcol
- Thermal conductivity ASTM C-177 : 0.23 W/m°K
- Water absorption ASTM D-570 : 3/24 hrs. at 25 °C %
- Opacity : 96.5 minimal %
SQUARENESS
Panels Are Within 3.18mm of Square
OTHER LENGTHS
On Demand, Coils Of 250m Available
ELECTRICAL PROPERTIES
- Dielectric constant (60 Hz) ASTM D-150 : 5.2
- Loss tangent (60 Hz) ASTM D-150 : 0.03
- Electrical strength ASTM D-149 : 35 KV / inch
- Arc resistance ASTM D-495 : 120 seconds
FIRE PROPERTIES
Fire classification,UNE-EN 13501-1:2019 :
- Standard FRP = Euroclass E
- Fire retardant FRP = B,s2-d0
(Euroclass EN-13501-1)
CHARACTERISTICS
-Food safe -Chemical resistant -Economical Ecological -Anti-fungal Anti-bacterial -Water- and dirt resistant -Easy to clean -Assumes no odors -Non-corrosive -High impact-and scratch proof -Quick and easy to install -Cooled and heated spaces -Optional fire retardant, standard Euroclass E -Anti-graffitiDoesn’t discolour -All RAL colours, standard RAL 9016 (Hygienic white) -Easy reparable

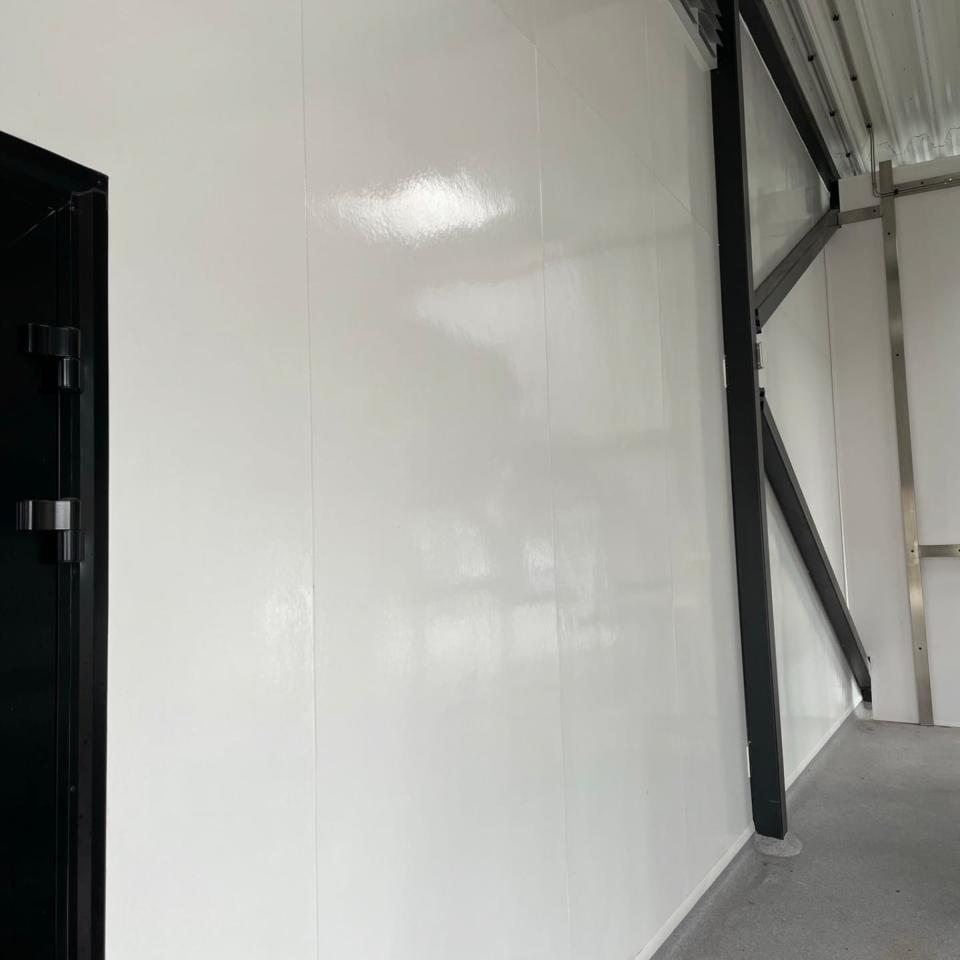

APPLICATIONS
Hygienic protection for smooth or slightly damaged walls in: food processing plants, bakeries, meat processing, industry and butcheries, restaurants and mass caterings, fish factories and stores, milk and chees industrie, slaughter houses for cattle and poultry, hatcheries and egg processing companies, clean rooms, cold rooms, hotels, hospitals, public buildings (schools, kitchens, toilets,...), transportation (bus stations, subway, train stations, airports, ...), health clubs and amusement parks, sports and training facilities (changing rooms and showers), commercial buildings (shopping centers...), fuel stations, car and truck wash, garages, chemical and petrochemical industry, hygienic locks, laboraties, beer and beverage industrie, marine applications like fisher vessels, oil platforms, truck
lorries, containers, traffic signs,...)
SMOOTH MATT FRP SURFACE
| STANDARD DIMENSIONS | LENGTH(M) | WIDTH(M) | SQM(M²) | POLYESTER THICKNESS |
|---|---|---|---|---|
| Euro class E (D1) | 2.6 | 1.2 | 3.12 | 2.3 |
| Euro class E (D2) | 3 | 1.2 | 3.6 | 2.3 |
| Euro Class B-s2, d0 (D5 ) | On Demand | 1.2 | - | 2 |
| Euro Class B-s2, d0 (D6 ) | On Demand | 1.2 | - | 2.3 |
EMBOSSED FRP SURFACE
| STANDARD DIMENSIONS | LENGTH(M) | WIDTH(M) | SQM(M²) | POLYESTER THICKNESS |
|---|---|---|---|---|
| Euro class E (D1) | 2.5 | 1.2 | 3 | 2.3 |
| Euro class E (D2) | 2.75 | 1.2 | 3.3 | 2.3 |
| Euro class E (D3) | 3 | 1.2 | 3.6 | 2.3 |
| Euro class E (D4) | 3.5 | 1.2 | 4.2 | 2.3 |
| Euro class E (D5) | 4 | 1.2 | 4.8 | 2.3 |
| Euro Class B-s2, d0 (D6 ) | 2.5 | 1.2 | 3 | 2.3 |
| Euro Class B-s2, d0 (D7) | 3 | 1.2 | 3.6 | 2.3 |
SMOOTH (+ FILM) FRP SURFACE
| STANDARD DIMENSIONS | LENGTH(M) | WIDTH(M) | SQM(M²) | POLYESTER THICKNESS |
|---|---|---|---|---|
| Euro class E (D1) | 2.5 | 1.2 | 3 | 2.3 |
| Euro class E (D2) | 3 | 1.2 | 3.6 | 2.3 |
| Euro class E (D3) | 3.5 | 1.2 | 4.2 | 2.3 |
| Euro class E (D4) | 4 | 1.2 | 4.8 | 2.3 |
| Euro Class B-s2, d0 (D5 ) | 2.5 | 1.2 | 3 | 2 |
| Euro Class B-s2, d0 (D6 ) | 3 | 1.2 | 3.6 | 2.3 |
