Zaun ArmaSade Retrofit Palisade Framework
ARMASADE RETROFIT PALISADE
ARMASADE RETROFIT PALISADE
Framework

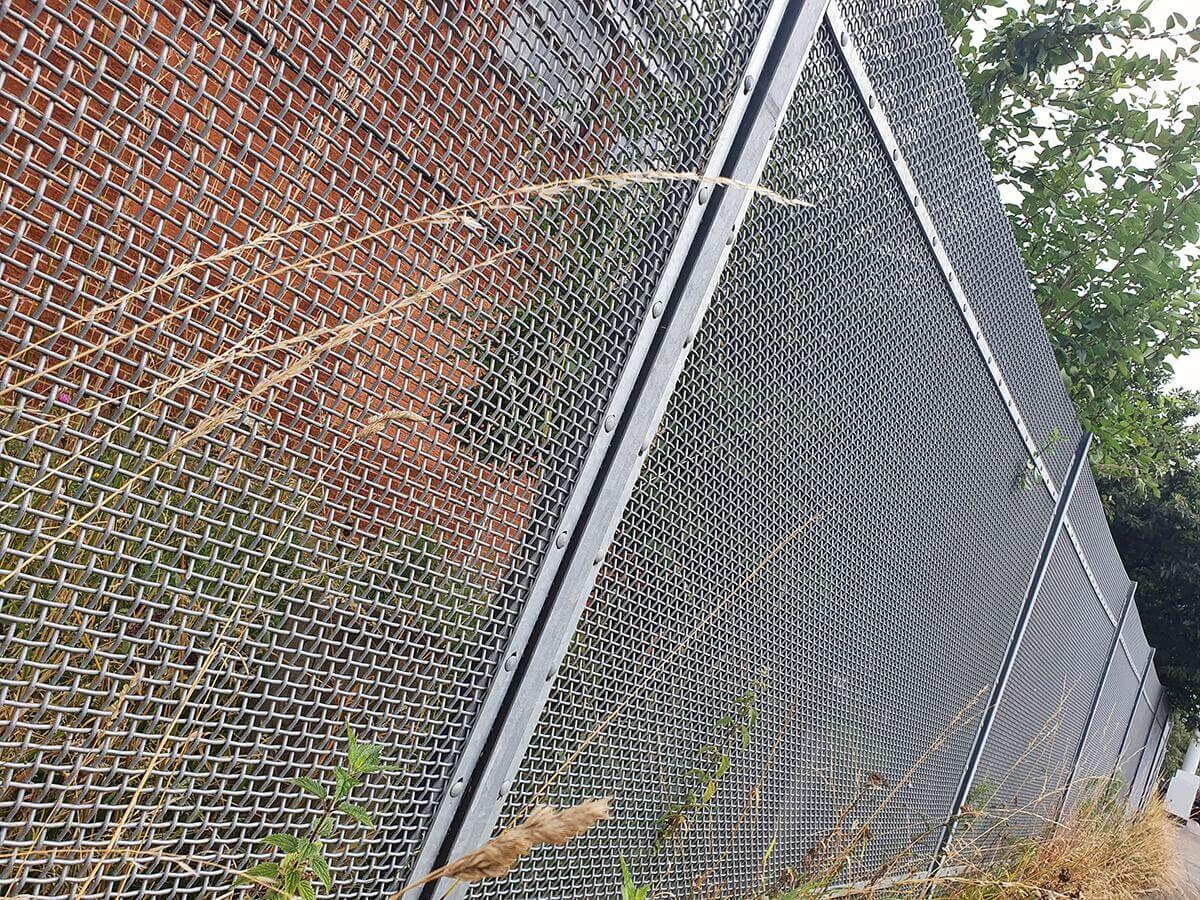

Armasade Is A Retrofit Palisade Fencing Solution, Designed Using Existing Palisade Framework And Posts And Replacing The Pales With Zaun’s Unique High Security Woven Mesh Armaweave.
This Innovative High-security Upgrade To Steel Palisade Fencing Has Been Designed, Developed And Manufactured In Our Own Factory In Wolverhampton Using An Ingenious Fastening System which allows installers to fix ArmaWeave high-security mesh fencing panels to the existing posts, without any civils required.
The vertical members can be extended to allow for a wide range of toppings, including concertina razor wire and electric fencing. As ArmaWeave is self-raking, it mimics the functionality of the Palisade, and the panels can be manufactured to match the height of the existing Palisade fencing.
ArmaSade retrofit palisade is also eco-friendly and highly cost-effective. It requires minimal groundwork, no spoilage and no plant to dig holes due to the utilisation of the existing posts and concrete foundations, making installation quicker and easier. This retrofit palisade solution can also be installed bay by bay, ensuring the site is safe and secure during the installation.
ArmaSade retrofit Palisade is ideal for sensitive sites in the rail, utilities, nuclear, data centre and industrial sectors and where costs and access are restricted. The removal of the palisade pales, and replacement of ArmaWeave provide the site with a highly secure fenceline with superior visibility for CCTV and intrusion detection.
INFORMATION
HEIGHT
1800, 2000, 2400, 3000 mm
PANEL WIDTH
2700 mm
MESH SIZE
17 x 17 mm
POST CENTRES
2750 mm
WIRE DIAMETER
4mm Verticals X 4mm Horizontals
FIXINGS
- Nuts
- Bolts
- Washers
FIXING CENTRES
Max. 152.4 mm
PANEL WEIGHT
12 Kg Per Sqm
APPLICATIONS
- High Security
- Utilities
- Transport
- Industrial
- Emergency Services
POSTS & FIXINGS
The Armasade Perimeter Security Fencing System Features A Post And Clamp Bar Configuration, Providing A Simple And Easy Installation Method. Supplied With Bolts, Nuts And Washers And Installed Using Either Power Or Hand Tools.
TOP EDGE PROJECTION
Minimal Projections
FEATURES
- Simple Installation Over Pre-installed Palisade Systems
- Provides A Cost And Time-effective Alternative To Replacing An Entire Palisade System
- Increased Security To Palisade Fencing
- No Groundwork Required
- No Additional Concrete Required
- Installed Bay By Bay, Leaving The Site Secure During Installation
-No Structural Engineers Are Required Due To Matching Wind Loadings
- Ability To Rake To Match The Existing Gradient On Site, Just Like Palisade
- Superior Security To Existing Palisade Pales, Creating A Virtually Impenetrable Fenceline
- Fast Installation Time, Only Works Required On-site Are The Drilling Of The Posts And Cutting Down Bays Where Necessary.
