MULTIFUNCTION: MULTIVITI FRAME
MULTIFUNCTION: MULTIVITI FRAME
A choice of three chassis for all kinds of vineyard work!
With MULTIVITI, you can hitch all PELLENC vineyard tools onto the same chassis in just 3 minutes! The range includes three chassis: MULTIVITI 20 and 40 chassis on an in-row tractor, and a 1 or 2-row MULTIVITI straddle chassis on a straddle tractor.

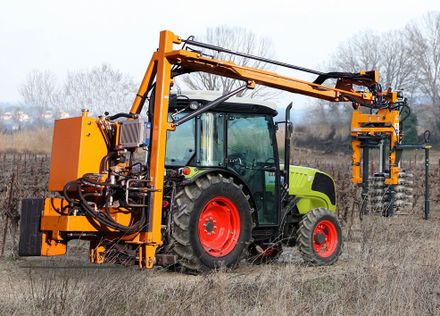

MULTIVITI 40 3 POINT REAR COUPLING
New chassis that provides optimum visibility! The ideal weight distribution makes it possible to work quickly and safely on uneven ground. This chassis offers the modularity and ergonomics MULTIVITI, with stability that is optimal for all the tools in the range. Comes standard with its own hydraulic unit.
INFORMATION
COST-EFFECTIVE
-Five Pellenc functions: pre-pruning, pruning, trellising, leaf stripping, and topping. -Works with other equipment.
COMFORT
-All settings are within reach. -The ergonomic, backlit PELLENC Multiviti joystick and screen incorporate all of the functions and self-diagnostics for each tool.
SAFETY
- Only one person required for coupling and uncoupling.
- Coupling plate with safety pin.
- Simple and intuitive connectivity:
- 3 push-pull connectors
- 2 electrical sockets
- MULTIVITI 20, 40 or Straddle:
- 3 versions available for working comfortably and safely in all situations
- Tool with exceptional work stability.
- Change tools in record time!
FEATURES
COUPLING WITH THE MULTIVITI STRADDLE CHASSIS
This chassis incorporates the same coupling system as the MULTIVITI 20 and 40 chassis, with optimum stability for all tools. Available as a 1 or 2-row version and compatible with the following MULTIVITI tools: MULTIVITI trimmers, wire lifters, and pre-pruners by PELLENC.
PELLENC MULTIVITI HYDRAULIC UNIT
More power without changing the tractor:
- 60 L capacity
- Two hydraulic pumps of 28, 48 or 76 L/min
- Oil cooler
- Optional central or lateral weight holder
DISCO PRE-PRUNER
-Working speed: up to 5 km/h even in dense vegetation -Extremely resistant boron steel discs (no sharpening required) -Cleanly cuts vine shoots -Automatic opening around posts with the artificial visioning system (optional) -The mulching discs eliminate wood removal.
VISIO PRUNER
-Working speed: up to 8 km/h. -Mulching discs eliminate the need for wood removal. -Pradines blades provide the same cutting quality as that of the pruning shears. -Automatic opening around posts thanks to the artificial visioning system (optional)
THE PRECISION PRUNER
-Working speed: up to 3 km/h, day or night. -Up to 90% less time spent pruning. -Cordon tracking with the visioning system: quality, comfort, and fatigue-free. -Intensive daily productivity.
WIRE LIFTER
Lift, trim, and trellis all at once
-Working speed: 4 to 5 km/h. -The perfect tool for vines with dense vegetation.-The canopy is even, wind-resistant and the work is comparable to that done by hand. -Wide range of biodegradable clips.
CUTTER BAR TRIMMER
- Sturdy, lightweight, and quiet with no projections.
- Unobstructed view.
- Extremely lightweight machine.
- Cut branches of any diameter.
- Reciprocating self-cleaning blades.
- Safety mechanism in case of shock.
TRIMMER WITH BLADES
Rotary cutting with no fouling
- Pivoting lower cutting module .
- Safety mechanism in case of shock.
- Blades with low sap accumulation.
