Adexsi Bluetek Lightube Sun Tunnel
BLUETEK LIGHTUBE SUN TUNNEL
BLUETEK
Ideal for naturally lighting a dark office, a corridor, a windowless room etc. 98% of the outside light is brought in.
LIGHTUBE
- Aluminium tube with silver treatment, without film, reflective over the whole tunnel (including bends) - Ceiling units that comply with fire classification regulations (public-access buildings) - Easy opening diffuser that allows cleaning (Home & Office versions)
ENERGY SAVING
The use of daylight reduces electricity consumption due to artificial lighting.

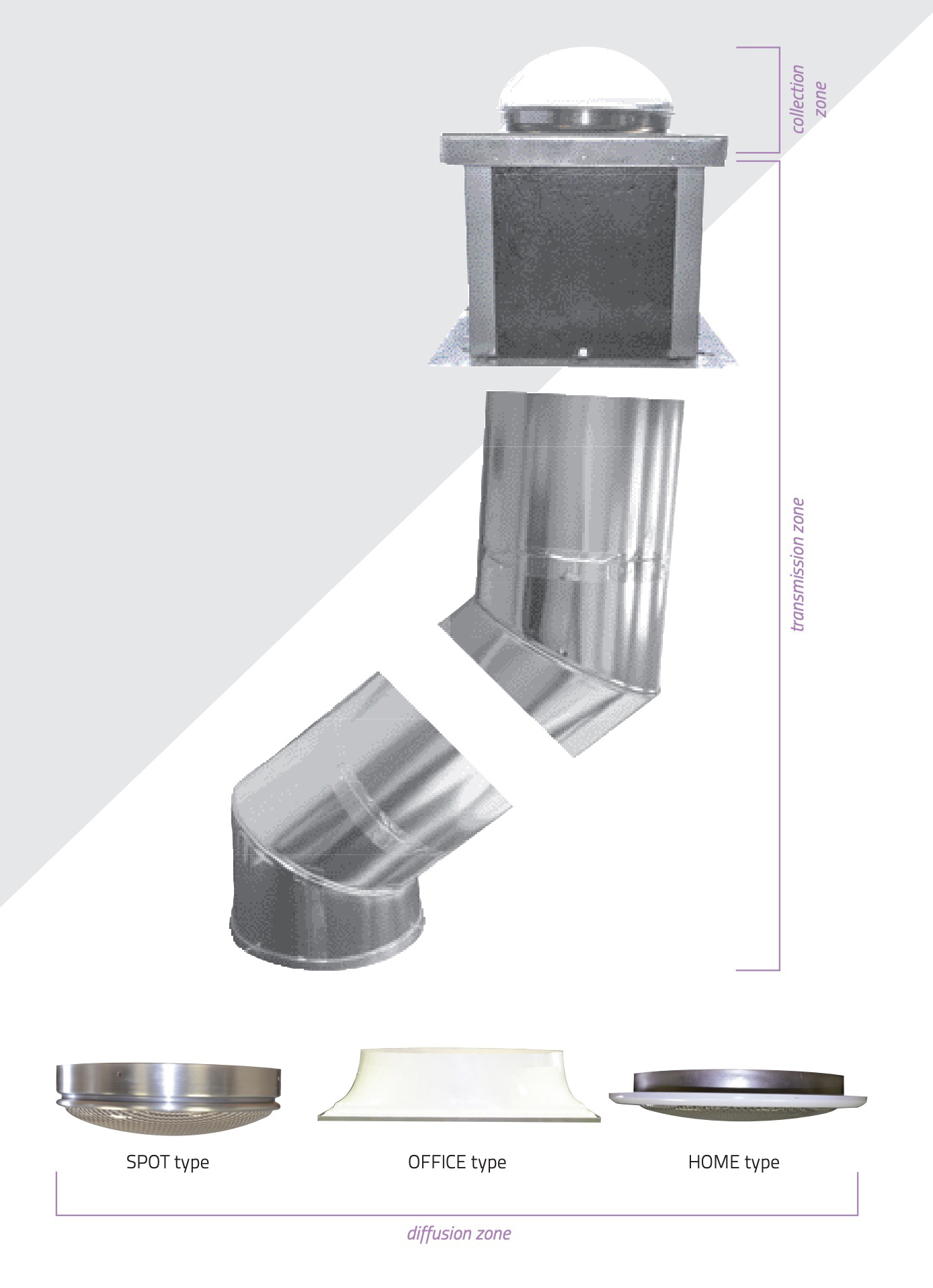

INFORMATIONS
DIAMETER
- SPOT type (33cm/53cm)
- OFFICE type (53cm)
- HOME type (33cm/53cm)
FINISHING
- Lightube SPOT (Visible Tube)

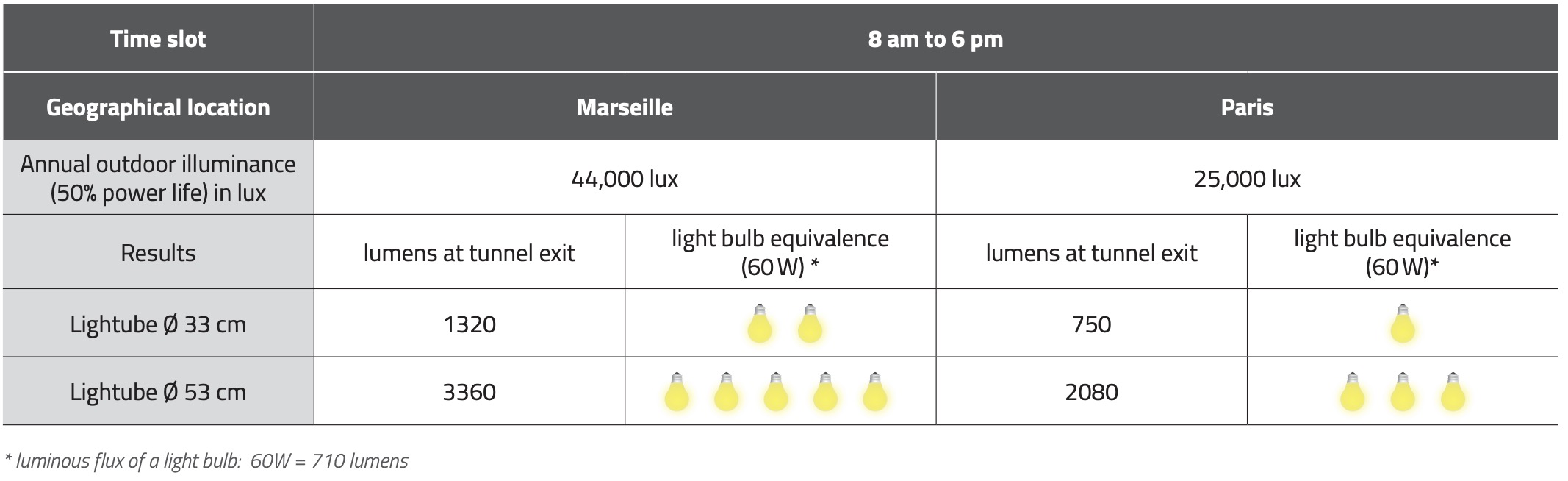

LUMINOUS EFFICACY
Tests carried out by the CSTB on standard kits (containing 1 dome + diffuser plate, 2 straight pipes, 1 ceiling diffuser).
The values were obtained using IEC Method 173:2012 Tubular daylight guidance systems.

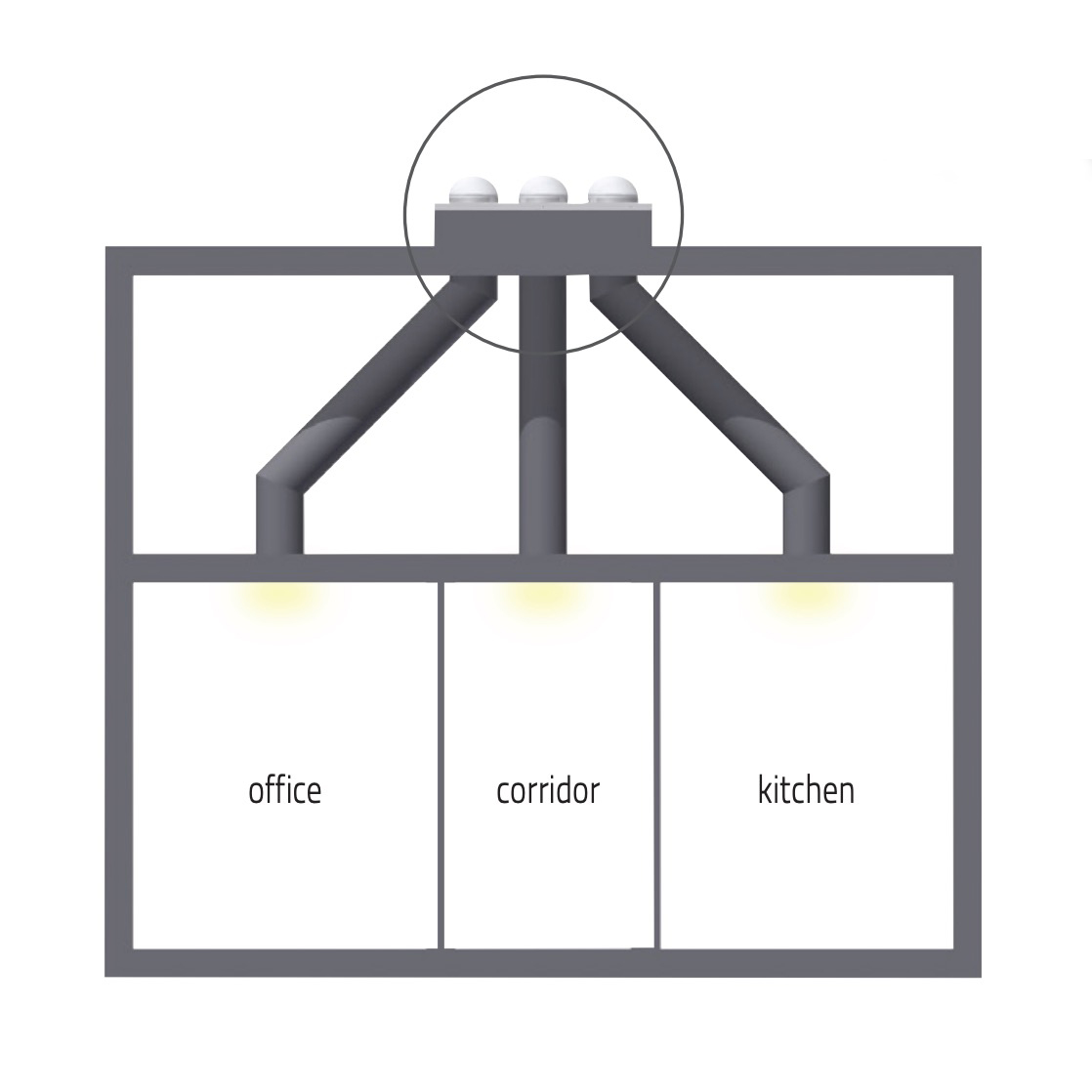

USE

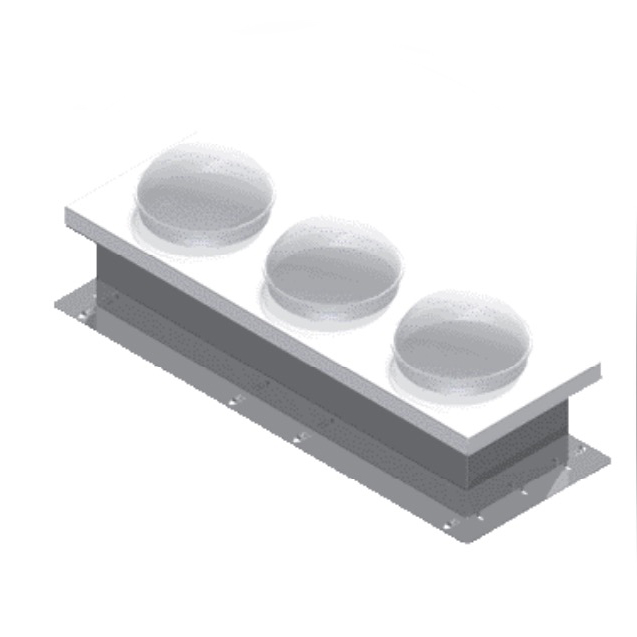

Only one frame, several Lightube tunnels

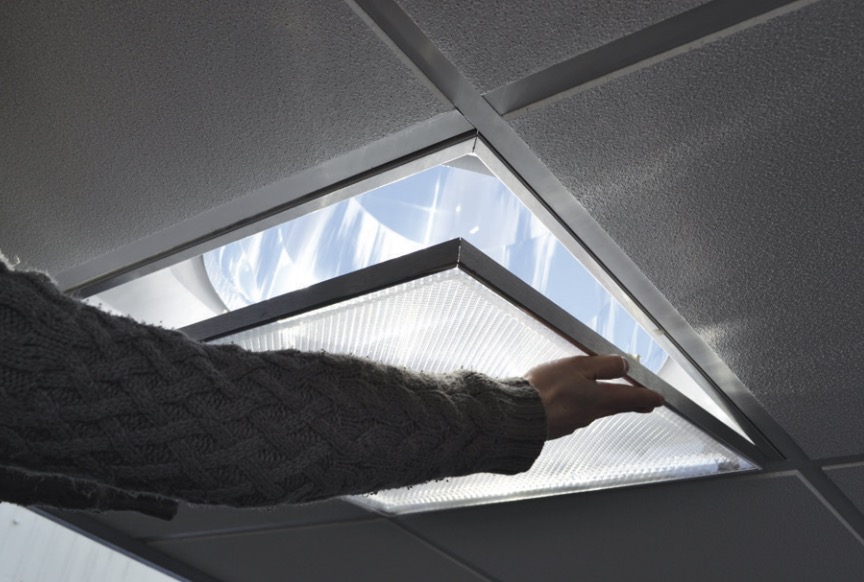

MAINTENANCE
Clean the diffuser regularly.
OPTIONS - STRAIGHT FRAME
Height 350 mm
OPTIONS - PVC WATERPROOFING
- Non-bituminous insulation
STYLE

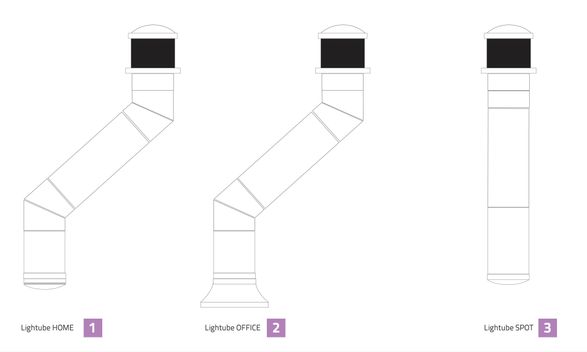

SECTIONAL VIEW
1. Lightube HOME
LIGHTUBE HOME:
Round ceiling diffuser unit, full integration into a plasterboard suspended ceiling. Ideal for buildings intended for housing.
LIGHTUBE OFFICE
Ceiling diffuser in a 600 x 600 tile, full integration into a suspended ceiling. Ideal for public-access buildings such as sports halls, schools, town halls, stores.
LIGHTUBE SPOT
suspended tube, brings light closer to its users. Ideal for industrial buildings.
