X-LAM ESSEPI PANEL
X-LAM ESSEPI PANEL

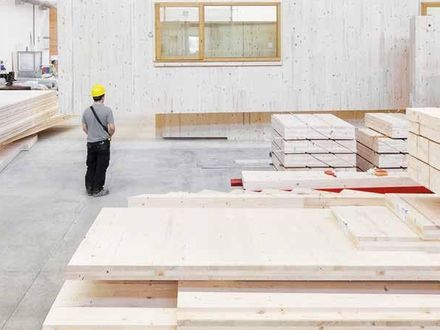

The Essepi XXL is a wood-based structural panel obtained from thin layers that are crisscrossed and glued (X-Lam), starting from EN 14081 tables classified according to mechanical resistances.
Essepi XXL uses exclusively wood that originates from forests provided with a certification of sustainable management (PEFC, FSC) with a preference for local sources of supply, that is, from the forests of Trentino-Alto Adige.
All of the processing steps, from the raw boards to the finished panel and to integrated systems, are aimed at the highest level of quality by means of of technological solutions that are implemented ad hoc.
In particular, with the raw materials and the production processes being equal, the planing and grading systems – obtained by mechanical equipment that has been designed and developed by the Essepi team – and the special gluing procedure bring about a net improvement in the performance of the final product with respect to the normal X-Lam panels.
Thanks to the operational tools with guaranteed precision and a production cycle that is entirely automated, Essepi XXL
furthermore ensures the greatest execution speed and a constant monitoring of the process and the quality at every phase.
The Essepi industrial methodology is capable of manufacturing X-Lam structural panels exclusively to measure according to requests from the customer and adapted to each project necessity.
Versatile, solid, ecological, economic, suitable for every type of building: the Essepi XXL panel is the construction element of the future that still includes the ancient soul of wood.
INFORMATION
DOWNLOAD
FEATURE
Essepi is not only a dynamic entrepreneurial reality oriented towards the principle of environmental sustainability, but a constantly expanding brand of excellence, the result of aesthetic research and strictly homemade technological innovation. Today Essepi is a leading company in the field of high energy efficiency windows and constructions in X-LAM in compliance with all environmental indicators. A company that looks to the future with a passion as old as wood.
TYPOLOGY AND STRATIGRAPHY
WALL PANEL - STRUCTURAL ENGINEERING CHARACTERISTICS OF THE FULL SECTION
All types of the Essepi XXL panel are always available and produced to measure on the basis of orders. The maximum production dimensions are 3,150 mm (width) by 12,750 (length) with thicknesses up to 300 mm.
T: Transverse layers
L: Longitudinal layers
Peso: Dead weight
A (1): Area of full section
A (2): Area of effective section
I (1): Moment of inertia with full section
I (2): Moment of inertia with effective section
W (1): Resistance module with full section
W (2): Resistance module with effective section
R.F. Rigidity
FLOOR PANEL - STRUCTURAL ENGINEERING CHARACTERISTICS OF THE FULL SECTION
T: Transverse layers
L: Longitudinal layers
Peso: Dead weight
A (1): Area of full section
A (2): Area of effective section
I (1): Moment of inertia with full section
I (2): Moment of inertia with effective section
W (1): Resistance module with full section
W (2): Resistance module with effective section
R.F. Rigidity
WALL PANEL - STRUCTURAL ENGINEERING CHARACTERISTICS OF THE EFFECTIVE SECTION
T: Transverse layers
L: Longitudinal layers
Peso: Dead weight
A (1): Area of full section
A (2): Area of effective section
I (1): Moment of inertia with full section
I (2): Moment of inertia with effective section
W (1): Resistance module with full section
W (2): Resistance module with effective section
R.F. Rigidity
FLOOR PANEL - STRUCTURAL ENGINEERING CHARACTERISTICS OF THE EFFECTIVE SECTION
T: Transverse layers
L: Longitudinal layers
Peso: Dead weight
A (1): Area of full section
A (2): Area of effective section
I (1): Moment of inertia with full section
I (2): Moment of inertia with effective section
W (1): Resistance module with full section
W (2): Resistance module with effective section
R.F. Rigidity
STRUCTURAL ENGINEERING
All types of the Essepi X-Lam panel are always available
and produced to measure on the basis of orders.
kmod = 0,8;
kdef = 0,6;
γm = 1,45
Service class: 1
Instantaneous deformation limit: L/400
Final deformation limit: L/300
Weight of X-Lam panel already included
