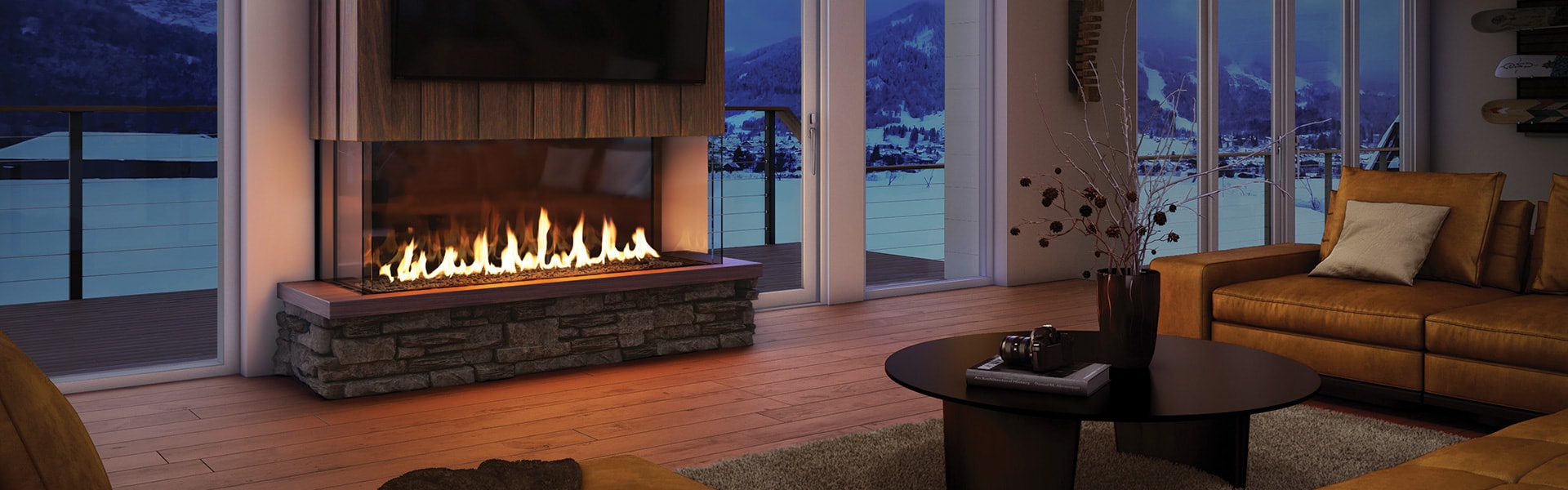

A fireplace showpiece with a captivating presence. Modern in form and luxurious by design the FOUNDATION Series was created with profound consideration for the whole space, bringing everything seamlessly together.
Trend-defining innovation embraces multi-sided visual enjoyment in a Foundation Series Bay fireplace, where first glances become lasting looks—from every vantage point.
CAPTIVATING PRESENCE
- Big bold flames that elevate the senses
- Clear view of the beautiful fire
LUXURY BY DESIGN
- Customize to your style
- Multiple interior options
- Available in 4’, 5’, 6’ and 7’ lengths in Single-Sided, See-Through, Bay, Pier
- Can be connected to home automation systems. Contact your home automation expert for information specific to your home.
FEATURES
CO-LINEAR DIRECT VENT SYSTEM
Co-linear design utilizing B-vent with choice of standard powervent or inline powervent exhaust system, which allows for installation flexibility.
MECHANICAL INTAKE DAMPER
Keeps cold air out; reversible collar allows air to come in from the side or bottom of fireplace.
SAFE SURFACE GLASS
Patented SafeSurface™ double-pane glass - proprietary cooling system keeps heat away from outer glass surface with no safety screen needed.
LED LIGHTING
Each Foundation Series fireplace comes standard with multi-colored chromotherapy LED lighting. Set and easily change the lights to different hues to match whatever mood or color scheme you’d like. Chromotherapy uses light in the form of color to balance energy in a person’s body by enhancing relaxation or invigoration.

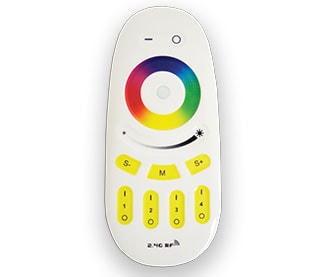

REMOTE CONTROL
Each Foundation Series fireplace comes standard with multicolored chromotherapy LED lighting and remote control. Set and easily change the lights to different hues and patterns to match whatever mood or color scheme you’d like. Chromotherapy uses light in the form of color to balance energy in a person’s body by enhancing relaxation or invigoration.
REVERSIBLE MIRRORED INTERIOR PANELS
- Change the look of the fireplace with enhanced infinite flame option.
- Change the look of the fireplace with subtle infinite flame option.

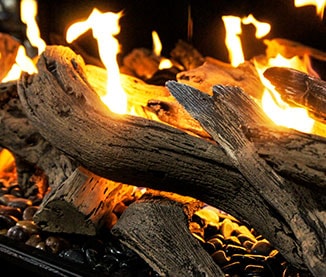

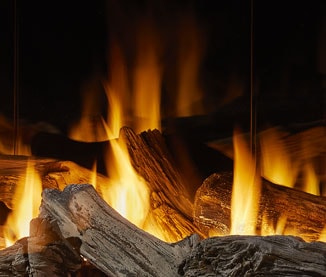

DRIFTWOOD LOGS
Authentically replicated and hand-painted driftwood log sets perfectly sized for each fireplace

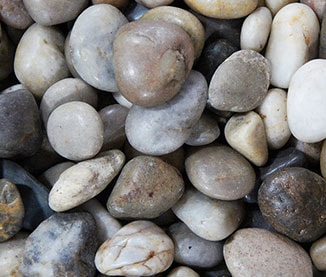

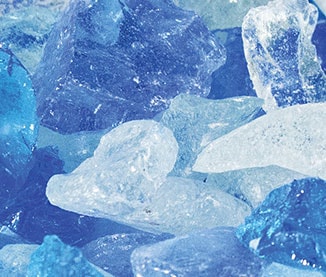

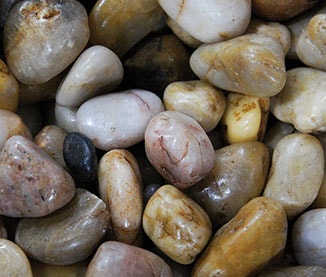

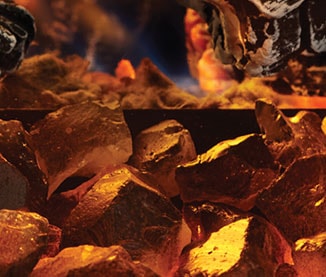

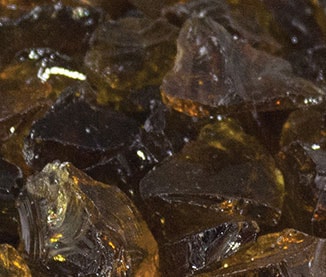

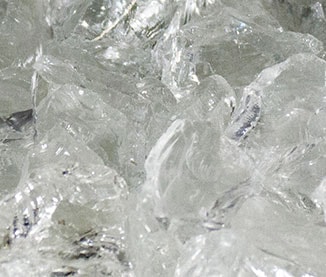

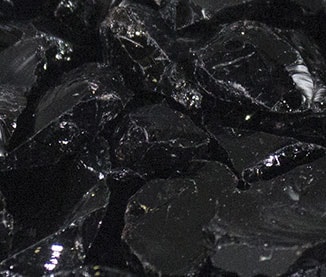

MEDIA

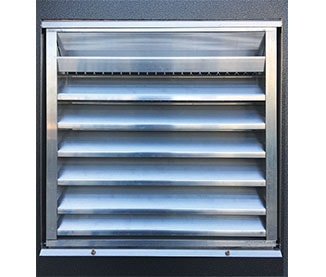

LOUVERED VENTING
Optional universal flush mount intake and/or exhaust louver
INFORMATION
FDN-4-BAY
- Size: 4'
- Appliance Width: 53-3/4"
- Appliance Height: 50"
- Appliance Depth1: 24"
- Appliance Rear Width: 53-3/4"
- Framing Width: 52-3/4"
- Framing Height: 56"
- Framing Depth: 25"
- Framing Front Width: 52-3/4"
- Framing Back Width: 52-3/4"
- Fuel Type: Natural Gas
- BTU/hr Input: 60,000
- Viewing Area: 53-5/8" x 24"; small pane: 24" x 24"
- Ignition System: HSI - Hot Surface Ignition
FDN-5-BAY
- Size: 5'
- Appliance Width: 65-3/4"
- Appliance Height: 50"
- Appliance Depth1: 24"
- Appliance Rear Width: 65-3/4"
- Framing Width: 64-3/4"
- Framing Height: 56"
- Framing Depth: 25"
- Framing Front Width: 64-3/4"
- Framing Back Width: 64-3/4"
- Fuel Type: Natural Gas
- BTU/hr Input: 80,000
- Viewing Area: 65-5/8" x 24"; small pane: 24" x 24"
- Ignition System: HSI - Hot Surface Ignition
FDN-6-BAY
- Size: 6'
- Appliance Width: 77-3/4"
- Appliance Height: 50"
- Appliance Depth1: 24"
- Appliance Rear Width: 77-3/4"
- Framing Width: 76-3/4"
- Framing Height: 56"
- Framing Depth: 25"
- Framing Front Width: 76-3/4"
- Framing Back Width: 76-3/4"
- Fuel Type: Natural Gas
- BTU/hr Input: 100,000
- Viewing Area: 77-5/8" x 24"; small pane: 24" x 24"
- Ignition System: HSI - Hot Surface Ignition
FDN-7-BAY
- Size: 7'
- Appliance Width: 89-3/4"
- Appliance Height: 50"
- Appliance Depth1: 24"
- Appliance Rear Width: 89-3/4"
- Framing Width: 88-3/4"
- Framing Height: 56"
- Framing Depth:25"
- Framing Front Width: 88-3/4"
- Framing Back Width: 88-3/4"
- Fuel Type: Natural Gas
- BTU/hr Input: 120,000
- Viewing Area: 89-5/8" x 24"; small pane: 24" x 24"
- Ignition System: HSI - Hot Surface Ignition
- Appliance Depth includes entire unit including depth of firebox and extension onto hearth.
- Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame may differ from image shown. Refer to the owner's manual for complete clearance requirements and specifications. Product specifications and pricing subject to change without notice. For testing and listing information please refer to the owner's/installation manual.
*For select products: Heating capacity to be used as a guide only. See your local dealer for help in determining the product that best suits your heating needs based on climate and home efficiency.

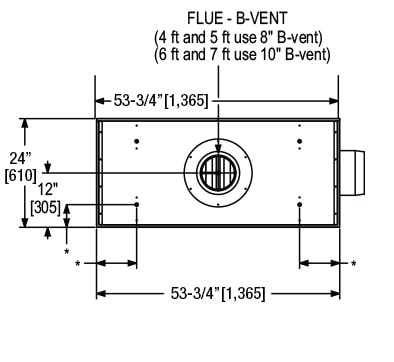

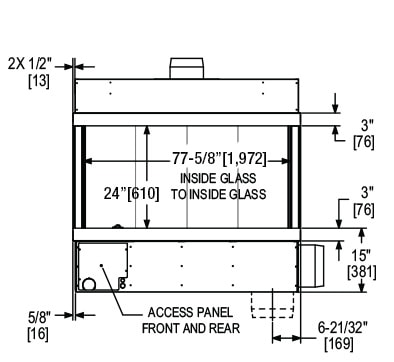

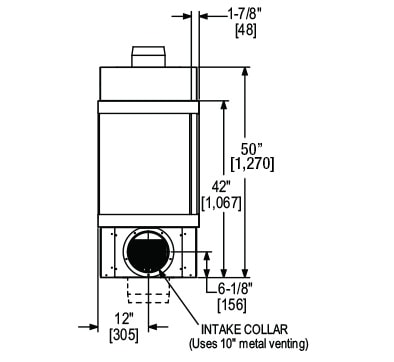

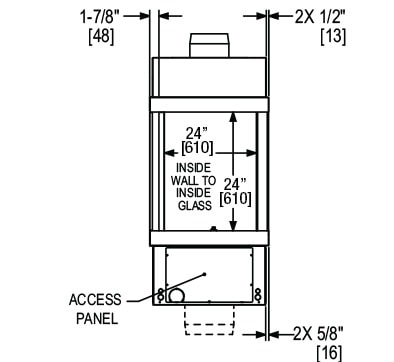

DIMENSIONS
