Isolmant Isoldrum N
ISOLDRUM N
ISOLDRUM N
Underlay Insulation (Roll)

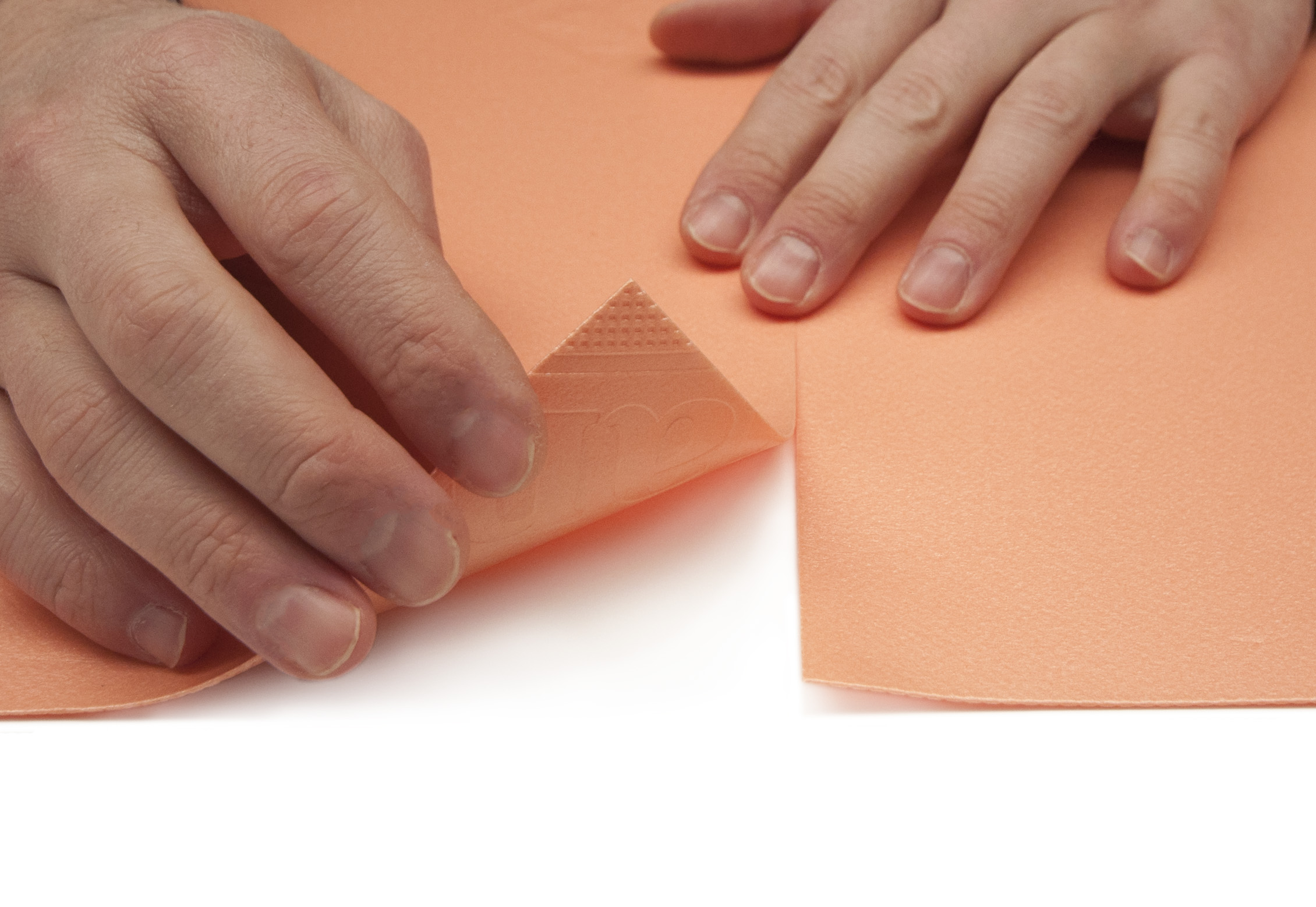

Embossed and screen-printed high density HQPO polyethylene insulating underlay.
INFORMATION
TECHNICAL INFORMATION
- Drum sound insulation in sone : 23
- Compressive Creep : 30 kPa (0,5 mm di deformazione)
- Compressive Strength : 110 kPa (0,5 mm di deformazione)
- Dynamic Load : 100000 cicli (a 25 kPa)
- Resistance To Large Ball (mm) - Large Ball Test : 650
- Thermal Resistance (m2K/W) : 0.032
- Water Vapour Resistance (m) : 12
THICKNESS IN MM (APPROX.)
1
IMPACT SOUND INSULATION (DB)
19
DIMENSIONS
Length (m) : 20
Height (m) : 1
DOWNLOADS
↓ Brochure Slim structures
↓ Brochure Structure de planchers minces
↓ Catalogue Système Plancher Isolmant - édition 2019
↓ Compressive creep
↓ Compressive strength
↓ Dynamic load
↓ Impact sound reduction
↓ Reflected walking sound insulation
↓ Resistance to large ball
↓ Thermal resistance
↓ Technical Sheet
APPLICATION AREAS
IsolDrum N is specifically recommended to achieve a high acoustic comfort inside the room. This product is suitable for hot water underfloor heating. Check: Rt (finishing + Isolmant layer) ≤ 0,15 m2K/W.
ITEM SPECIFICATIONS
Resilient layer installed under the wooden flooring made of embossed high density HQPO polyethylene (type IsolDrum N). Thickness approx. 1 mm.
REFERENCES
THERE IS EVEN MORE SILENCE IN ANTARCTICA
Isolmant IsolDrum N for Italian research bases In the renovation and modernization works of the Mario Zucchelli Station, on the coast of the Earth Northern Victoria bathed by the Ross Sea in Antarctica, a IsolDrum N is entrusted with the task of ensuring the best underfloor sound insulation. Mission accomplished. >>> Read More
