B-Hygienic HygiCeil FRP Ceiling Tiles
HYGICEIL FRP CEILING TILES
HYGICEIL FRP CEILING TILES
The B-Hygienic Hygiceil FRP ceiling tile is produced from a special type of FRP sheet.
This type of FRP sheet contains a higher percentage of glass fibre, which prevents the tiles from bending.
This type of FRP sheet is also a glass fibre reinforced composite polyester sheet, opaque, available with a smooth or embossed surface. The B-Hygienic Hygiceil FRP ceiling tiles are suitable for all standard structured ceilings with dimensions 0,6 x 0,6 m and 0,6 x 1,2 m.
INFORMATION
STANDARD FINISHING
- Embossed
– Smooth
FIRE CLASS
- Euro Class E
CHARACTERISTICS
- Food safe (HACCP, EU, BRC, FDA, USDA, ...)
- Economical (less cleaning product is needed) and ecological
- Chemically resistant (e.g. blood, acids, brine, milk, ...)
- Water- and dirt resistant, anti-fungal and antibacterial
- High impact- and scratch proof
- Anti-static - Easily and simply cleanable
- Quick and easy to install (modular system)
- Suitable for heated and cooled spaces.
- Does’t discolour and assumes no odors
- Non corrosive - Easy reparable
- Available in all RAL colours (standard RAL 9010 = hygienic white)
SPECIFICATIONS
- Flexural Strength: 1,267
- Flexural modulus: 45,76
- Tensile strength: 634
- Tensile Modulus: 70,4
- Extension: 1,5
- IZOD Impact strength: 695
- Linear expansion: 0,025
- Bracol Hardness: 40
- Thermal conductivity: 3,41
- Water absorption: 0,3 (24 tot 25°C)
- Density:1,4
- Temperature: 60°C / + 60°C
- Polyester thickness: 2,3 mm
TOLERANCE
-2+2 mm
WEIGHT / M2
+/- 3,25 kg
STANDARD COLOUR
- RAL 9016 (white)
COMPOSITION
| SURFACE | PROPORTION OF FIBER IN % | SHARE IN FIBERGLASS(GR/M2) | WEIGHT (KG/M2) |
|---|---|---|---|
| Smooth Surface | 23 | 781 | 3.39 |
| Embossed Surface | 30 | 920 | 3.06 |
APPLICATIONS

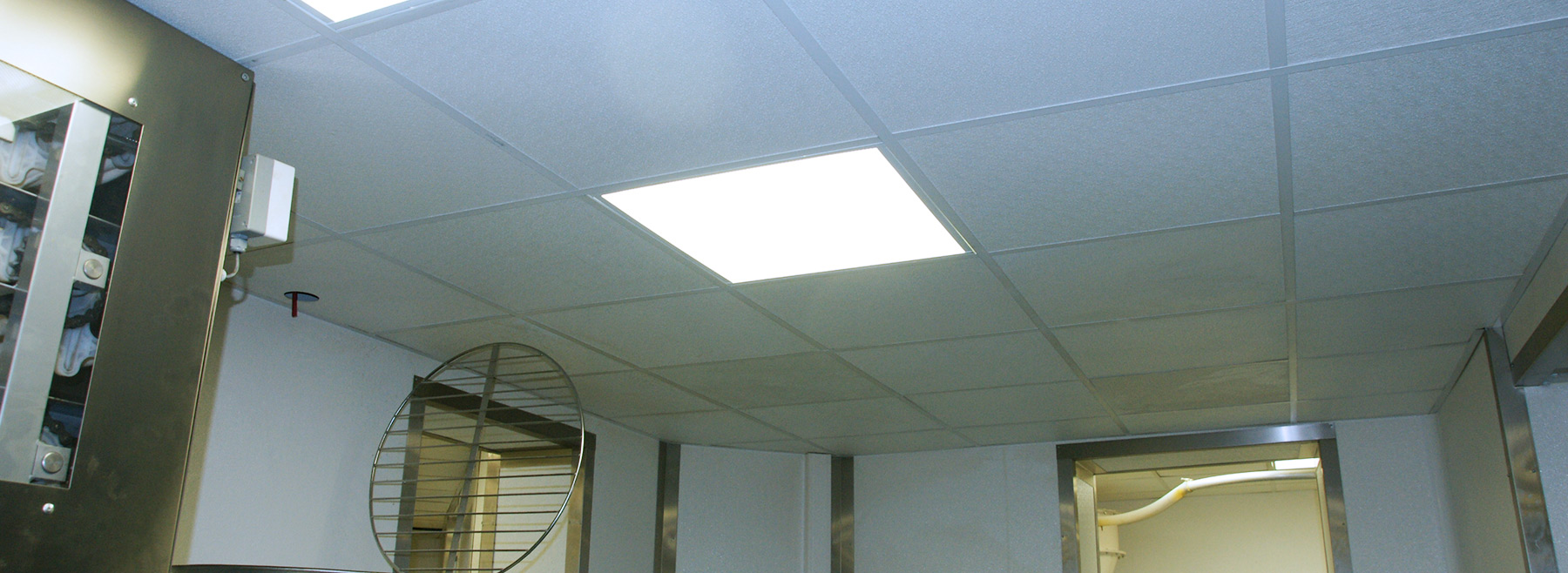

Hygienic protection for structured ceilings in: food processing plants, bakeries, meat processand cheese industrie, slaughter houses for cattle and poultry, egg processing companies, clean rooms, cold rooms, hotels, hospitals, public buildings (schools, kitchens, toilets, ...), transportation (bus stations, subway, train stations, airports, ...), health clubs and amusement parks, sports and training facilities (changing rooms and showers), commercial buildings (shopping centers. ..), fuel stations, car and truck wash, garages, chemical and petrochemical industry, hygienic locks, laboratories, beer and beverage industry
