Anyway Strip Window Modern Interior Doors with Glass Inserts
STRIP WINDOW INTERIOR DOORS
STRIP WINDOW INTERIOR DOORS

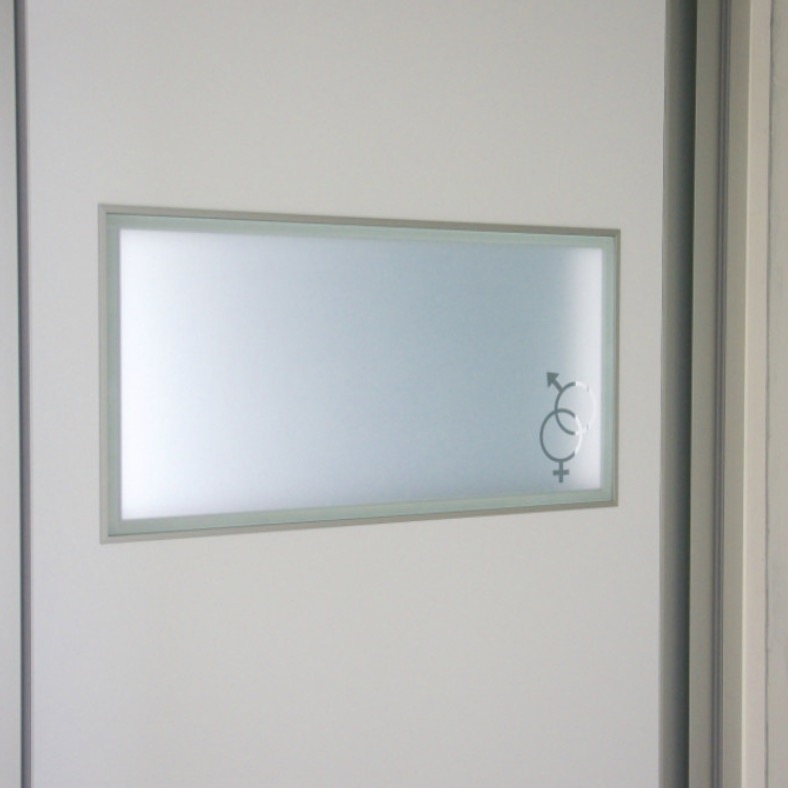

Modern interior doors with glass inserts - "strip windows"
In the full door leafs, oblong glass panes over the width of the door can be integrated.
The standard strip window height is 250mm; the centre height is always 1,650mm from the bottom of the door leaf.
After installing the 4mm thick glass on the interior and exterior sides, an aluminium edge of +-5mm remains visible. This lies 2mm on top of the door surface.
It is a ‘double’ glass application, relatively acoustic and thermal due to the gap between the two glass panes.
INFORMATION
GLASS
- Clear glass
- Frosted glass
- Etched glass
MATERIALS
- Wood
- Glass
THICKNESS
Glass: 4mm
Aluminium edge of +-5mm
FINISHES
MEASUREMENT
- Strip window height: 250mm
- Centre height: 1,650mm from the bottom
DOWNLOAD

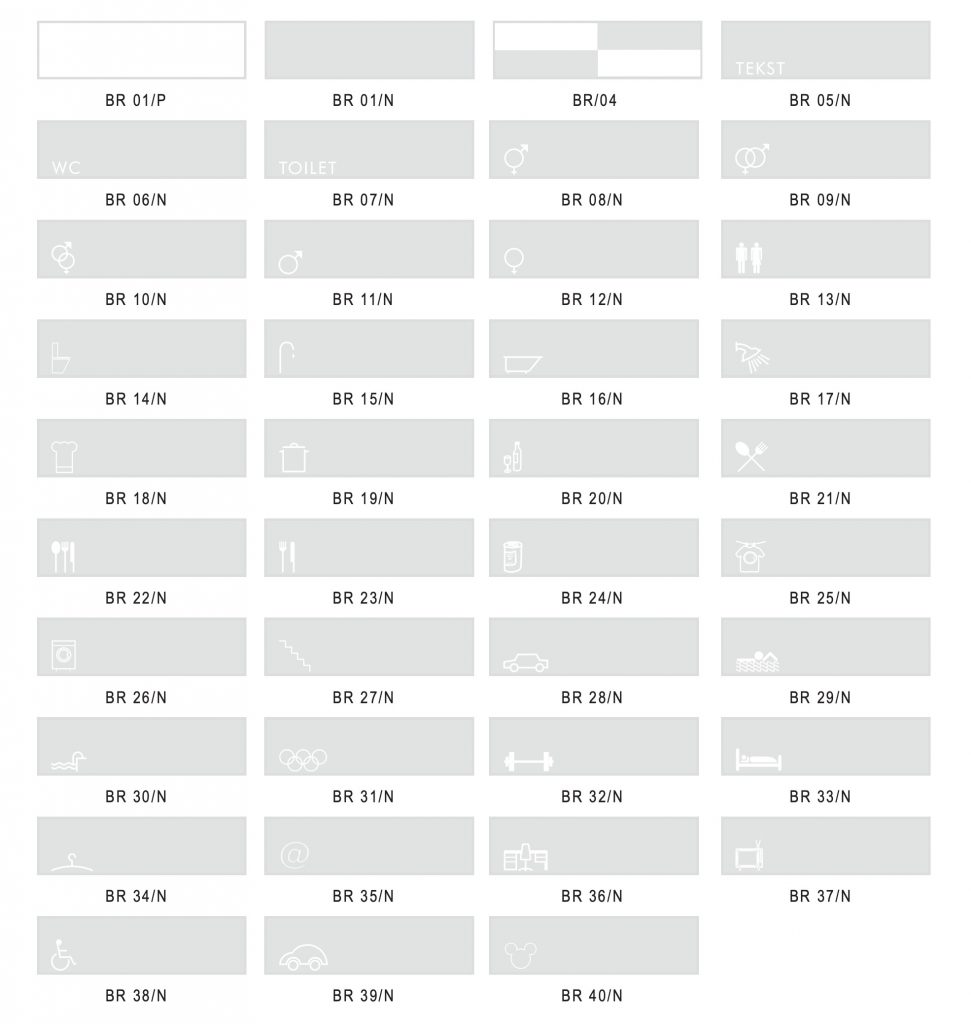

PATTERNS
These stylized patterns are sandblasted on one side of the glass surface and finished with a coating to simplify maintenance. We provide you with an overview of Anyway’s patterns (PDF), but also personalised texts or geometric patterns are available on request.
