EXTERNAL ECOCOOLER – LARGE
EXTERNAL ECOCOOLER – LARGE

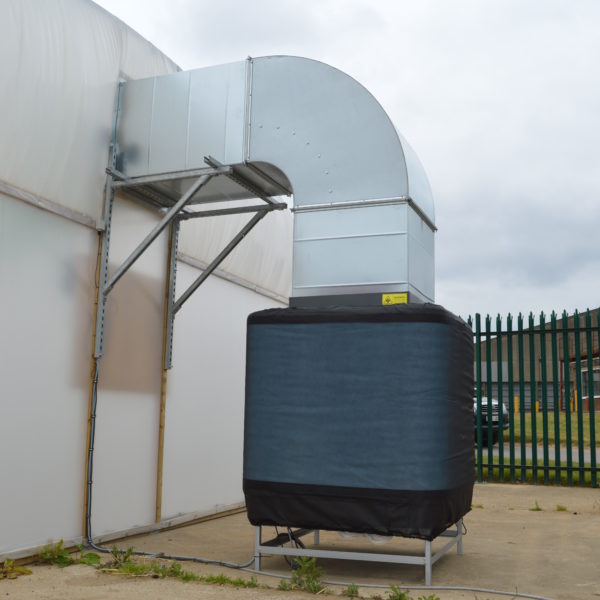

EcoCoolers contain an inbuilt fan and evaporative cooling pads. The evaporative coolers are designed to be externally mounted and should be used as part of a mechanical ventilation system with a paired extract fan.
The standard configuration is down flow, where air is supplied from the base of the cooler into the area that requires cooling. A 2-speed wall control is supplied as standard with the evaporative cooler, this is normally connected to a thermostat to give automatic control. There is also a facility to connect to a timer, humidistat and fire alarm contact. An internal relay is also available to drive an external fan.
INFORMATION
MATERIAL
- Cabinet components are injection moulded in polypropylene.
- The cabinets are UV stabilised and corrosion resistant.
VOLTAGE
3~ 400V 50Hz
CURRENT
6.25 A running
MAXIMUM POWER DRAW
3.75kW
PROTECTION
External isolator supplied
CABINET
Injection moulded from polypropylene, UV stabilised and corrosion free
ELECTRICAL REQUIREMENT
3~ 400V 50Hz, 6.25A (soft start). External isolator fitted
WATER REQUIREMENT
Water supply minimum 1 bar max 7 bar. Minimum supply 500l/hr
WARRANTY
Two years parts only warranty subject to the cooler being maintained by EcoCooling approved service engineers

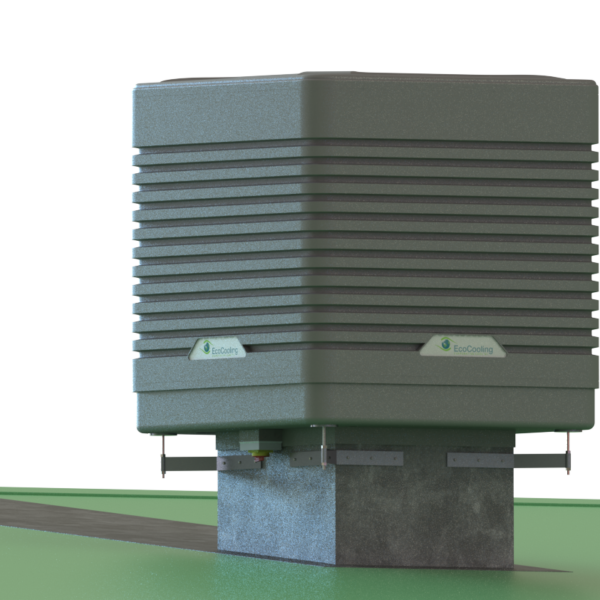

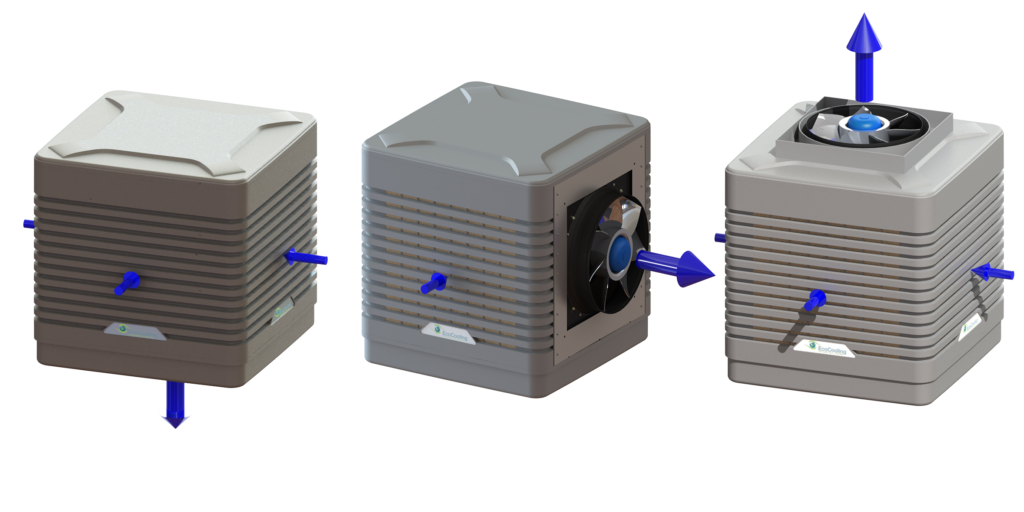

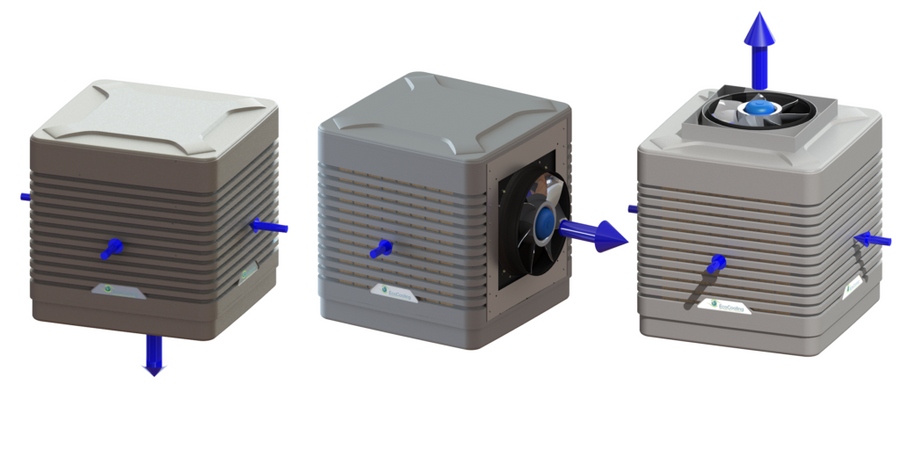

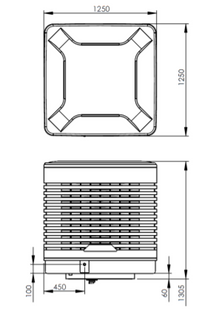

DOWN FLOW
- Height : 1300 mm
- Width : 1250 mm
- Depth : 1250 mm
- Weight : Dry: 147kg
- Weight : Wet: 232kg
SIDE FLOW
- Height : 1300 mm
- Width : 1368 mm
- Depth : 1250 mm
- Weight : Dry: 148kg
- Weight : Wet: 233kg

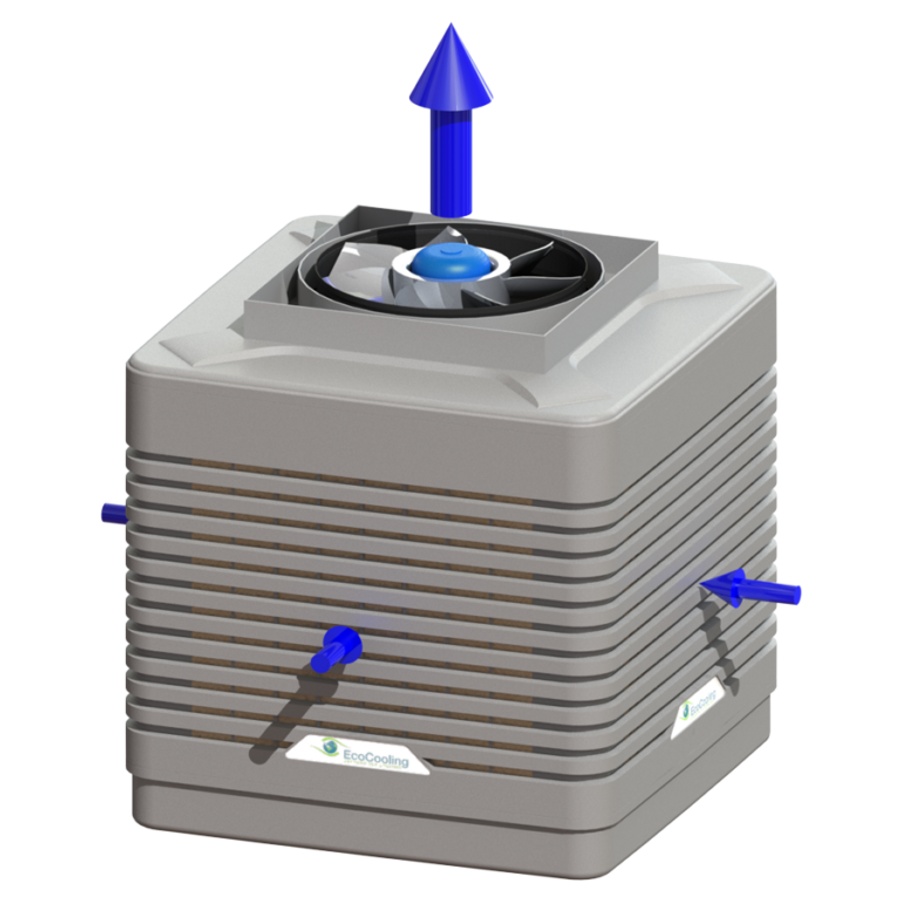

TOP FLOW
- Height : 1400 mm
- Width : 1250 mm
- Depth : 1300 mm
- Weight : Dry: 150kg
- Weight : Wet: 195kg
AIR FILTERATION
- Integrated Insect Screens
- Optional EU4 filtration
MAINTAINANCE
- Integrated testing sequence
- Recommended interval of 3-6 months
VENTILATION MODE
In ventilation mode, the water circulation system is not in operation. The coolers supply fan is used to bring external ambient air into the building.
COOLING MODE
In cooling mode, the water circulation system is in operation and the cooling pads are wetted. The evaporation of water from the pads results in a reduction in air temperature.
ALTERNATIVE OPTIONS
External EcoCoolers are also available in a smaller size (up to 12,000m3/hr), please see the ECP EcoCooler Small product page for more details. Alternatively, if you are looking at an installation where there is no outside plant space, call our installations team for advice about plant rooms or have a look at our ECT product ranges.
CONTROL
A 2-speed wall control is supplied as standard with the evaporative cooler, this is normally connected to a thermostat to give automatic control. There is also a facility to connect to a timer, humidistat and fire alarm contact. An internal relay is also available to drive an external fan. The controller provides an integrated commissioning and maintenance cleaning sequence which provides a fault alarm code. For more details on advanced controls options please visit our Controls(link) product page.
