Casagrandegroup B200 Xp-2
B200 XP-2
B200 XP-2

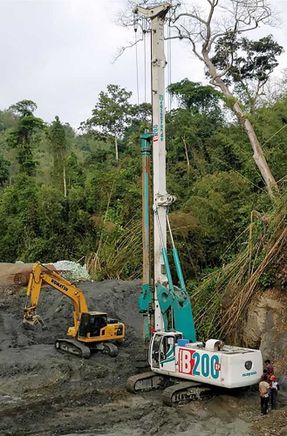

The Casagrande B200 XP-2 is a machine dedicated to giving the specialist contractor equipment to perform large diameter rotary and CFA piling. It is the result of research and innovation based on over 50 years of experience and success of the company in the field of foundations and geotechnical engineering
The Casagrande B200 XP-2 is a multifunction machine designed to drill boreholes, to insert and extract casings, to power a casing oscillator, for piling by the continuous flight auger method and ready for conversion in diaphragm wall equipment.
Designed to work on the most difficult sites and has excellent technical characteristics 240 kN high speed winch for fast work, the H22 rotary head has a maximum torque . Output of 210 kNm and speed up to 34 rpm, it is ideal for drilling large and small diameter boreholes and for driving long casings.
“Keep the operator happy in a comfortable working environment” is our formula for added productivity. The B200 XP-2 is designed to satisfy the European Union standards on safety and is manufactured to comply with the ISO 9001 requirements on quality
INFORMATION
PERFORMANCE AND PRODUCTIVITY
The Smart Power Management (SPM) is an intelligent engine power management system that improves performances and productivity of the machinery. The SPM system monitors the momentary power flows and immediately allocates the available power to the different jobs, so the operation function has always the maximum power available.
MAXIMUM DEPTH
68 m, 220 ft
MAX DIAMETER
1800 mm, 87 in
ENGINE POWER
246 kW, 330 HP
WIDTH OF CRAWLER
2500÷3900 mm, 8.2÷12.8 ft
SHOES WIDTH
700 mm, 28 in
LINE PULL
240 kN, 54,000 lbf
SAFETY & TECHNOLOGY
The B200 XP-2 has a very low sound emission level as a result of the of sound-absorbing materials and oil heat exchangers, designed for reducing the overall noise level. The layout of the machine and the wide openings of the canopy offer comfortable and easy access for inspection and maintenance. The machine conforms to the last international standards to guarantee the maximum safety of the operations.
FULL LOAD SENSING TECHNOLOGY
The XP-2 hydraulic power system uses the Full Load Sensing (FLS) technology. Unlike the common hydraulic managing systems, the FLS pressurizes only the required amount of oil requested by users thanks to the back-action between pumps and distributors. It allows to manage the power demands and reduces dissipations, achieving up to the 25% of fuel saving (calculated on the basis of a theoretical working cycle).
EXTRACTION FORCE
260 kN, 58,450 lbf
CROWD FORCE
180 kN, 40,500 lbf
STROKE
6000 mm, 19,7 ft
EXTRACTION FORCE
280 kN, 63,000 lbf
TORQUE
210 kNm, 154,900 lbf·ft
DRILLING SPEED
34 rpm
FLEXIBILITY
The XP-2 control system offers the following advantages for the operator and the supervision of the work: monitoring of all working function, diagnostic of the working systems to ensure the constant monitoring of the status of sensors and components, easy conversion in any drilling arrangement, friendly customization of working functions e.g. mappings of torque and speed for EP rotary head, remote rigs assistance, diagnostic, monitoring of working parameters.
