Garaventa Lift Xpress II
XPRESS II STAIR LIFTS
XPRESS II STAIR LIFTS
Inclined Platform Lift
The Garaventa lift Xpress II inclined platform wheelchair lift is designed to provide economical access between two landings.

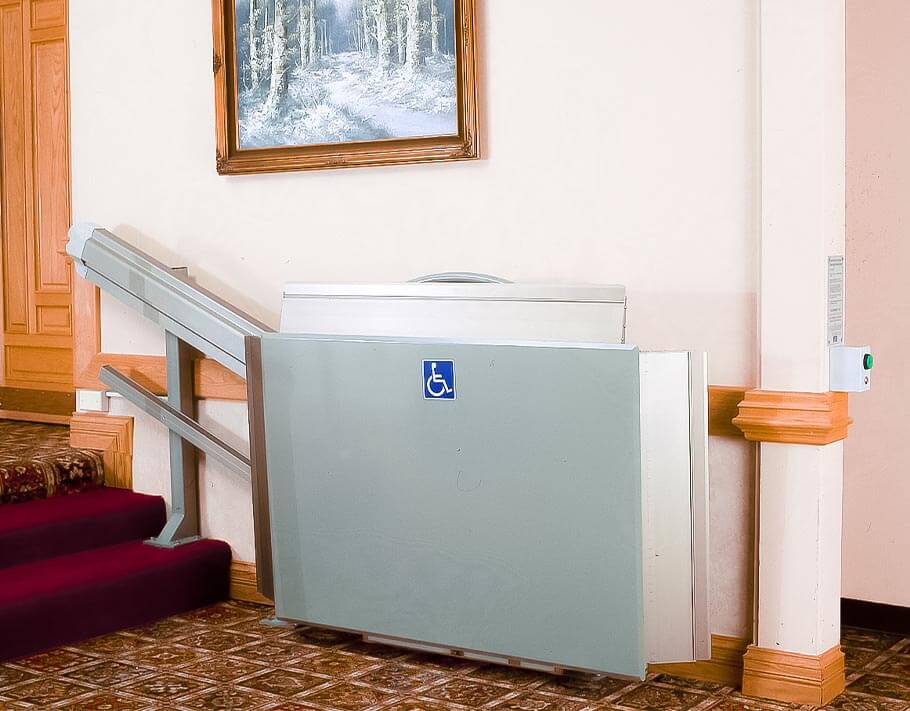

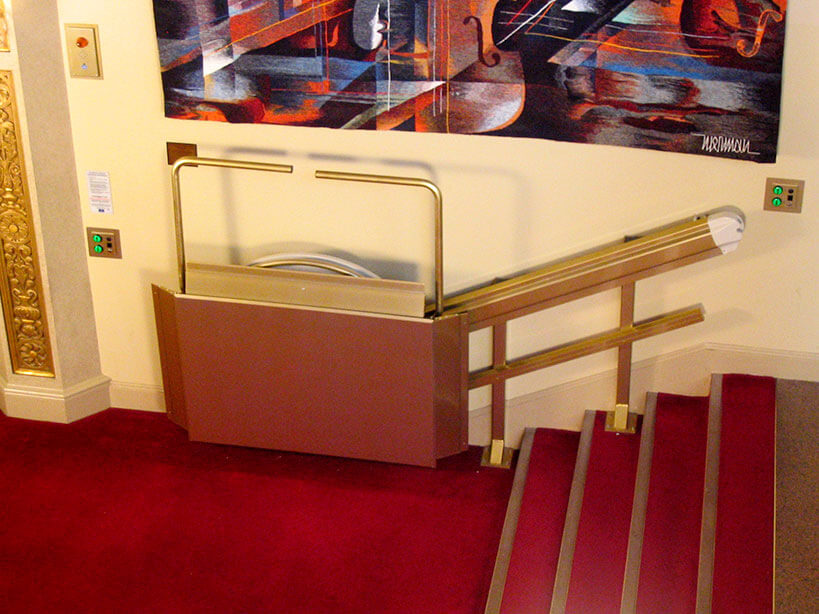

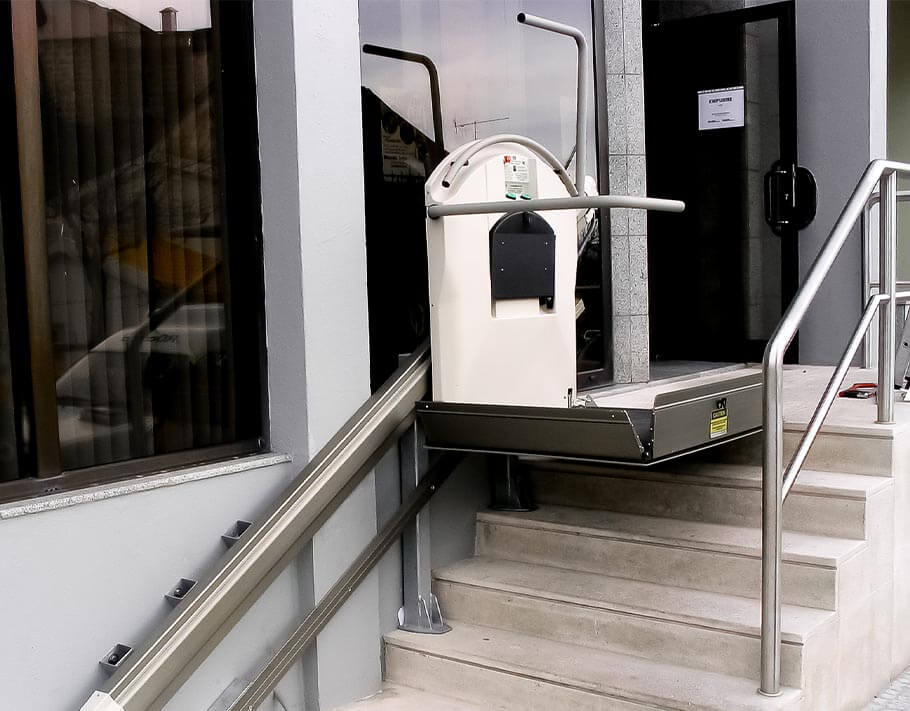

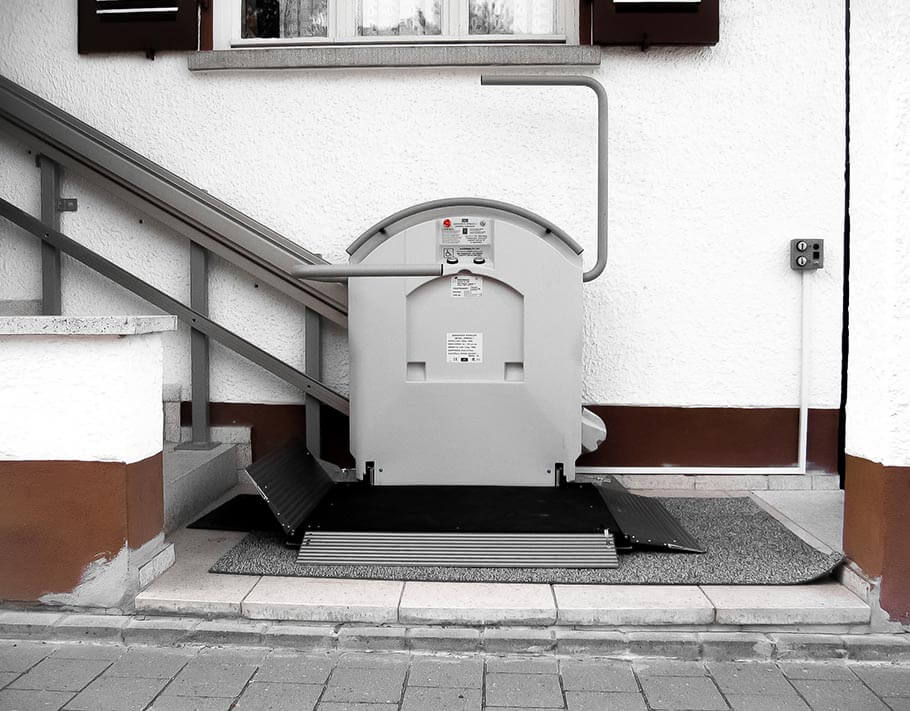

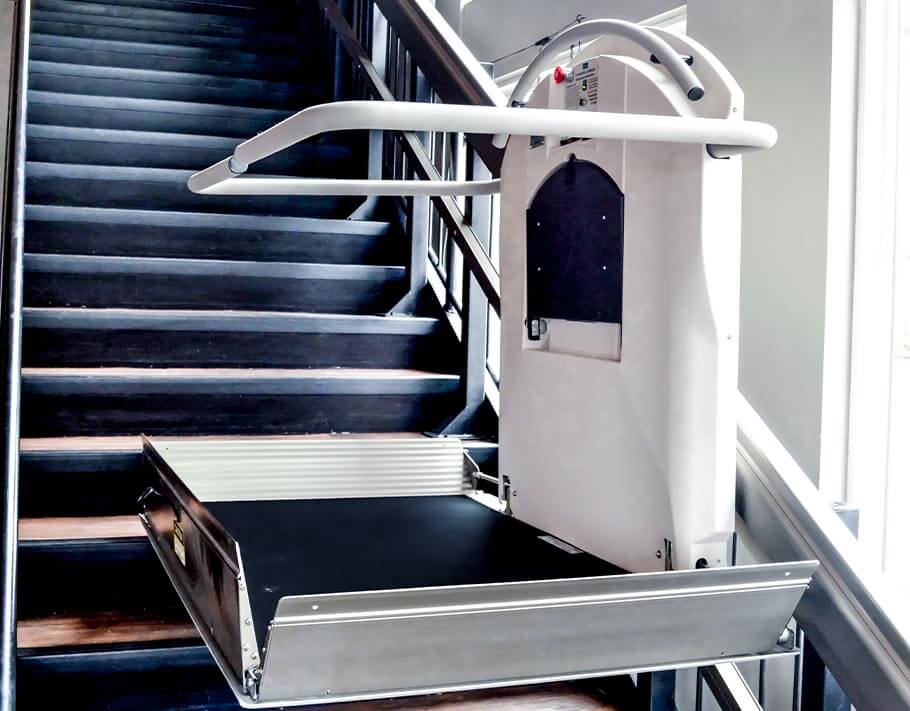

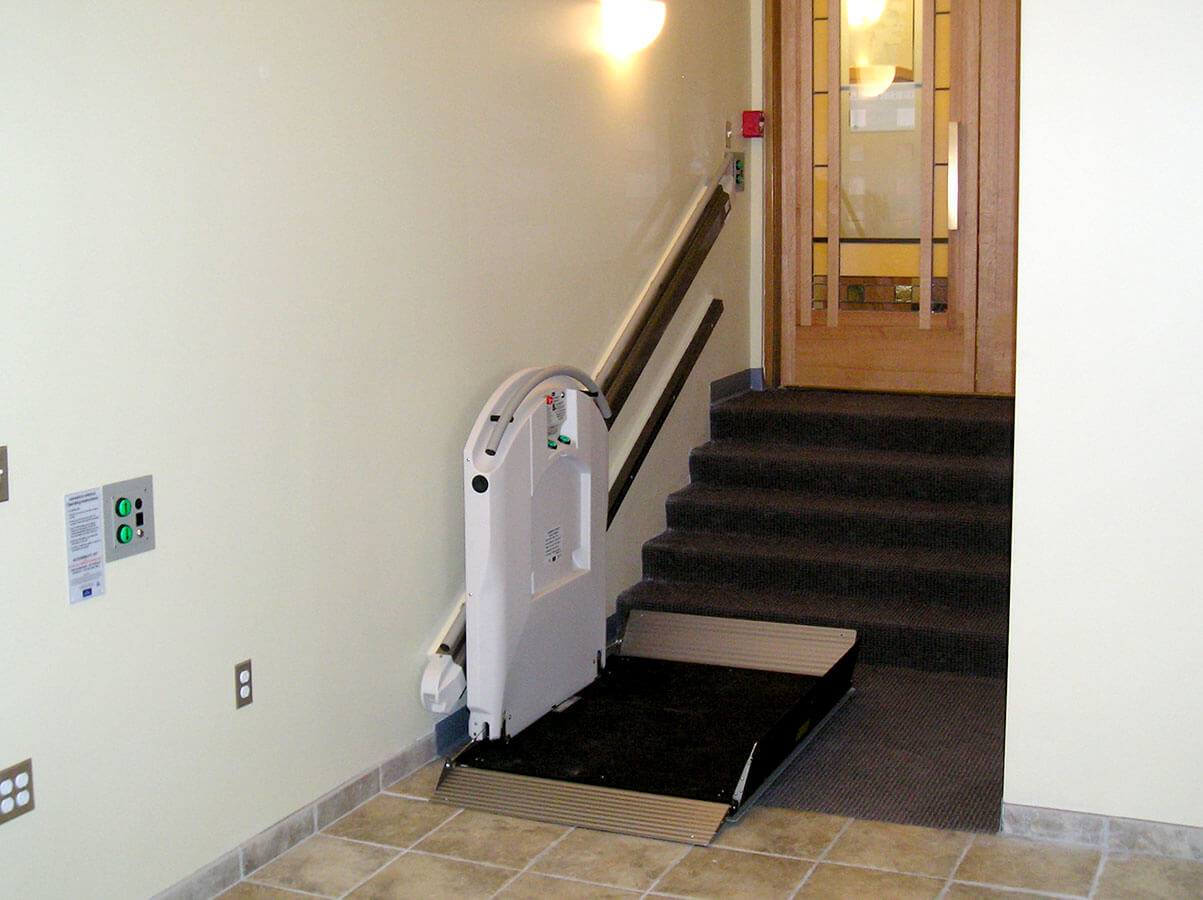

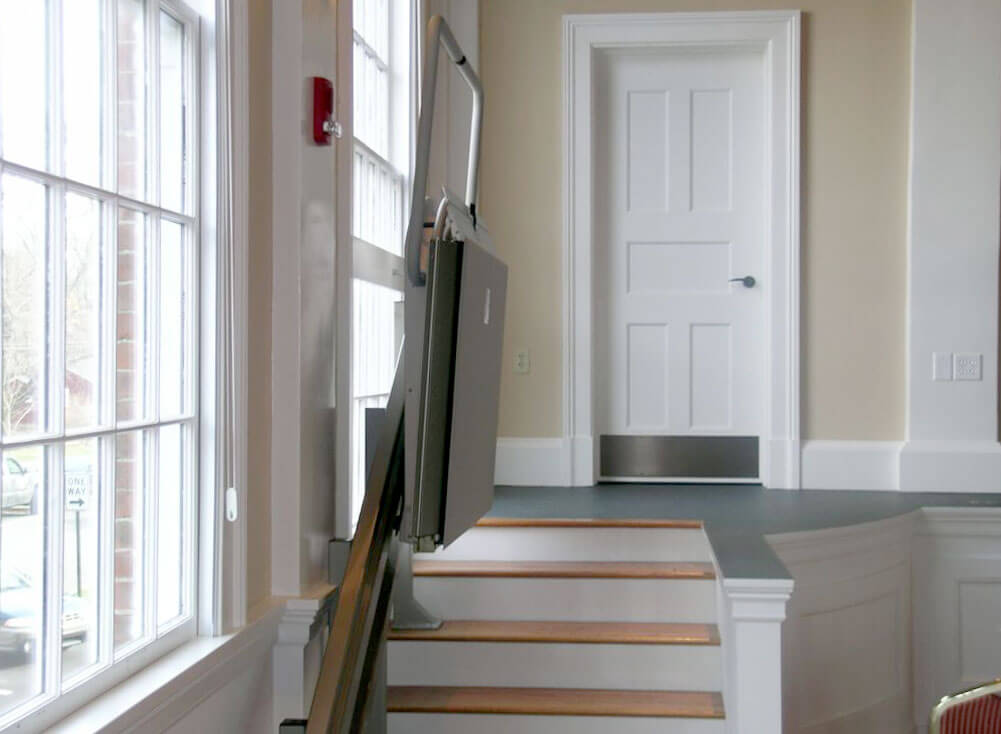

The platform travels on two rails which are secured directly to the wall or to support towers and is propelled by means of a carriage mounted rack and pinion drive system. When the platform is not in use it is folded, taking up minimal space on the stairway. The Xpress II is cost-effective and is ADA compliant. With a variety of standard and optional features available, it can be designed to suit the needs of the user and building owner.
INFORMATION
PLATFORM SIZE
- 800mm x 1250mm (31 1/2” x 49 1/4”)
- 800mm x 1000mm (31 1/2” x 39 3/8”)
- 750mm x 900mm (29 1/2” x 35 1/2”)
OPTIONAL PLATFORM SIZE
- 675mm x 1000mm (26 1/2” x 39 3/8”)
- 725mm x 1000mm (28 1/2” x 39 3/8”)
SPEED
- Up: 4m (13 ft) per minute
- Down: 4.9 m (16 ft.) per minute
USE
A handwheel is provided. Auxiliary power system available.
STANDARD FEATURES
Highlighted below are some of the many standard features available. For more extensive information, consult the Xpress II Design & Planning Guide or contact your local Garaventa Representative.
OPTIONAL FEATURES
The items li sted below are additional optional features available on the Xpress II. For more extensive information, consult the Xpress II Design and Planning Guide or contact your local Garaventa Representative.
HIGHLIGHTS
- Low cost
- Space saver
- ADA access
DOWNLOAD
RATED LOAD
250 kg (550 lbs)
OPERATING CONTROL
Continuous pressure switches, 24 VDC.
POWER REQUIREMENT
208-240 VAC, 50/60 HZ single phase on a dedicated
(North America = 20 amp, International = 15 amp) circuit.
RAIL SYSTEM
Champagne anodized aluminum extrusion with integrally mounted zinc plated gear rack.
OVER SPEED SAFETY
Mechanical overspeed sensor and lock, with electrical drive cut-out protection.
GALLERY
