ADJUSTABLE CIRCULAR FORMWORK BIRAMAX
ADJUSTABLE CIRCULAR FORMWORK BIRAMAX

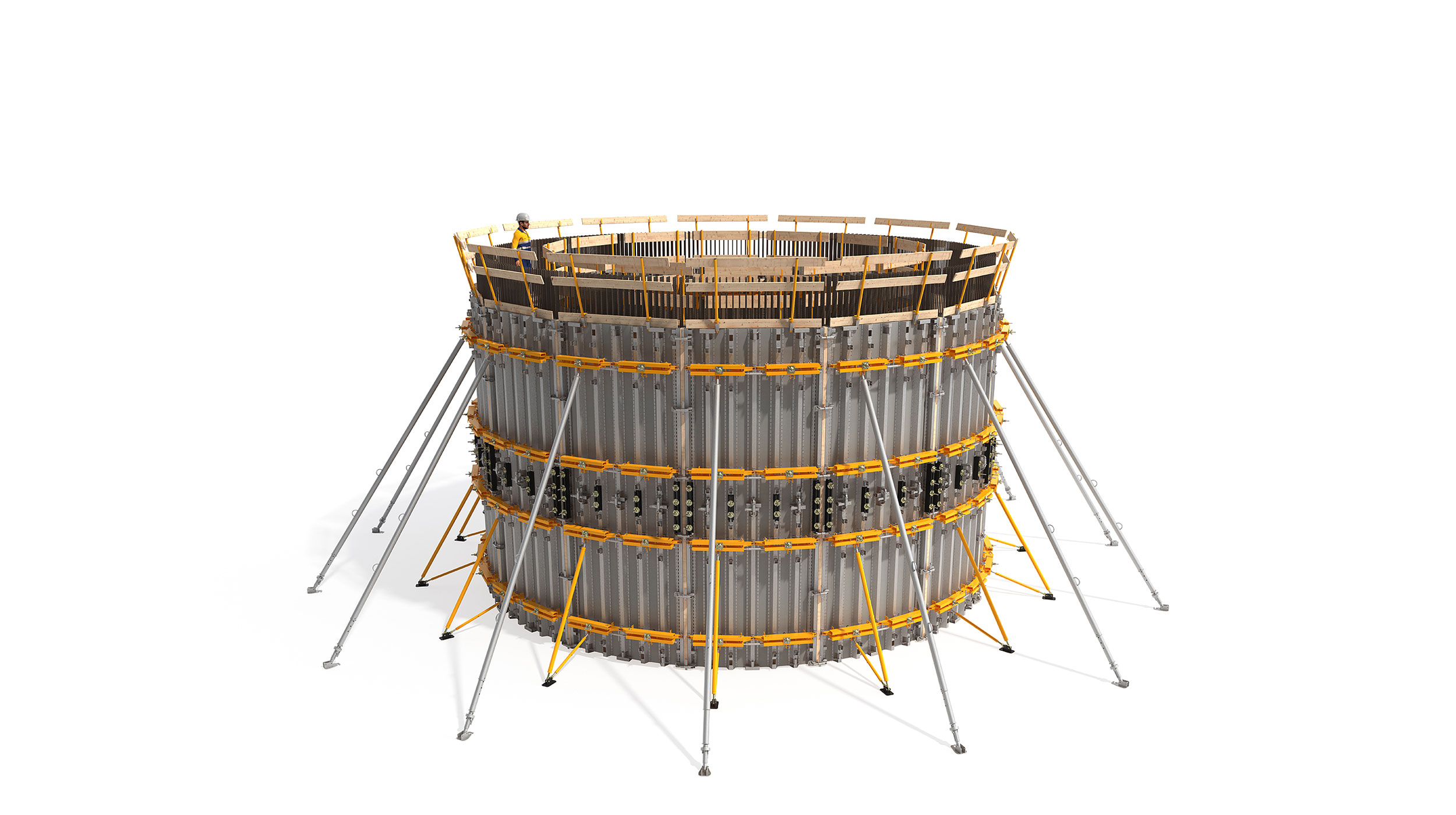

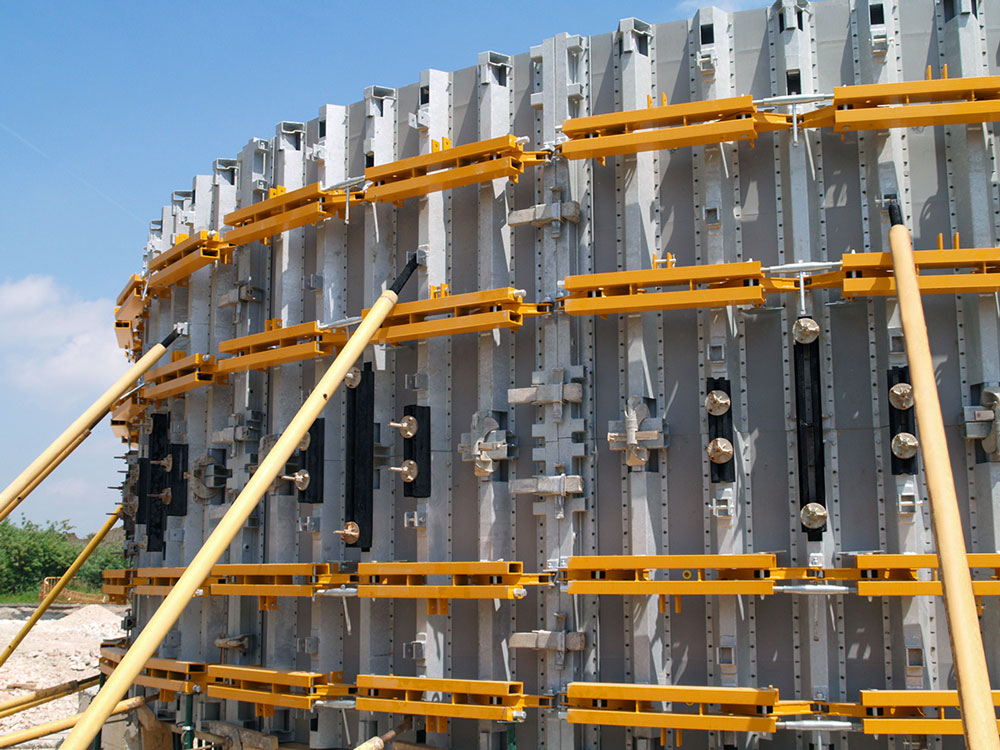

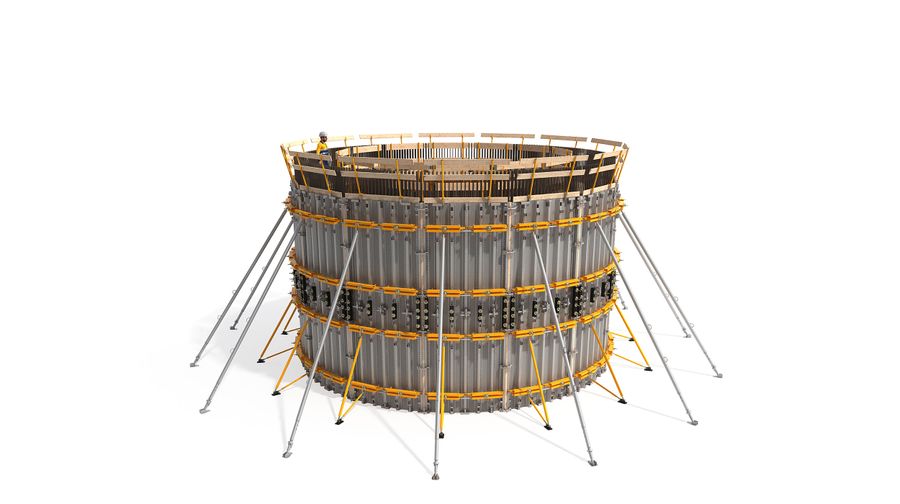

Adjustable modular circular formwork for the construction of curved walls.
Optimised for energy sector constructions, such as water tanks, gas tanks, etc.
INFORMATION
FINISHES
This is a high-strength durable circular formwork, with fast curving system and excellent concrete finishes.
COMPONENTS

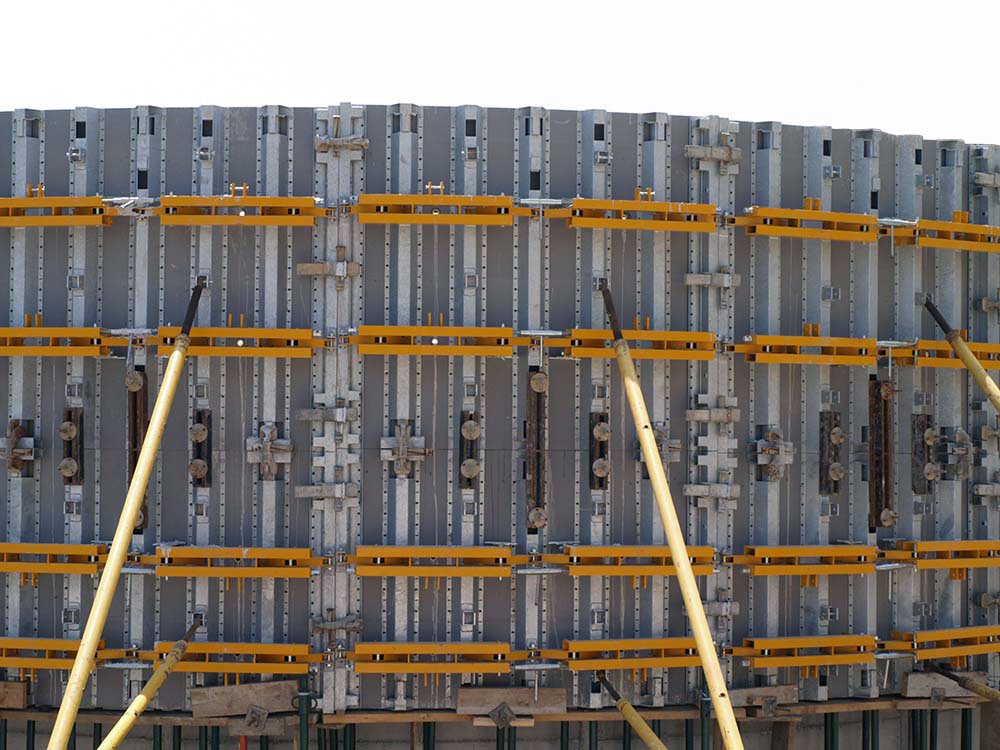

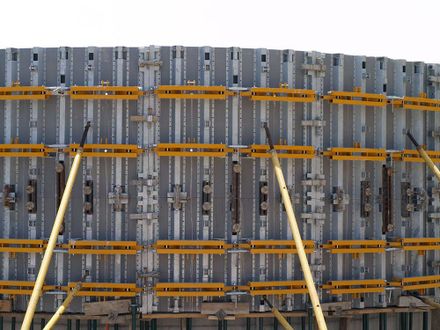

Basic components of the BIRAMAX formwork system: outside panel, inside panel and clamp.
MAXIMUM PRESSURE
60 kN/m2 (line 6, tab. DIN 18202)
MINIMUM CURVE RADIUS
2 m
HEIGHT
Models with varied panel height: 3 m; 2 m; 1.5 m
ANCHORS
Only 2 anchors at height
WIDTH
Models with varied panel width:
- Exterior panel: 2.25 m and 1.125 m
- Interior panel: 2.2 m and 1.1 m
WARRANTY
Guaranteed safety in the assembly and concrete pouring phases by means of different safety platforms.
FEATURES
- Durable, robust panels made of galvanized steel
- Reusable plywood is easy to maintain and repair
EFFICIENT
Excellent concrete finish thanks to the plastic-coated plywood panels
ADJUSTABLE

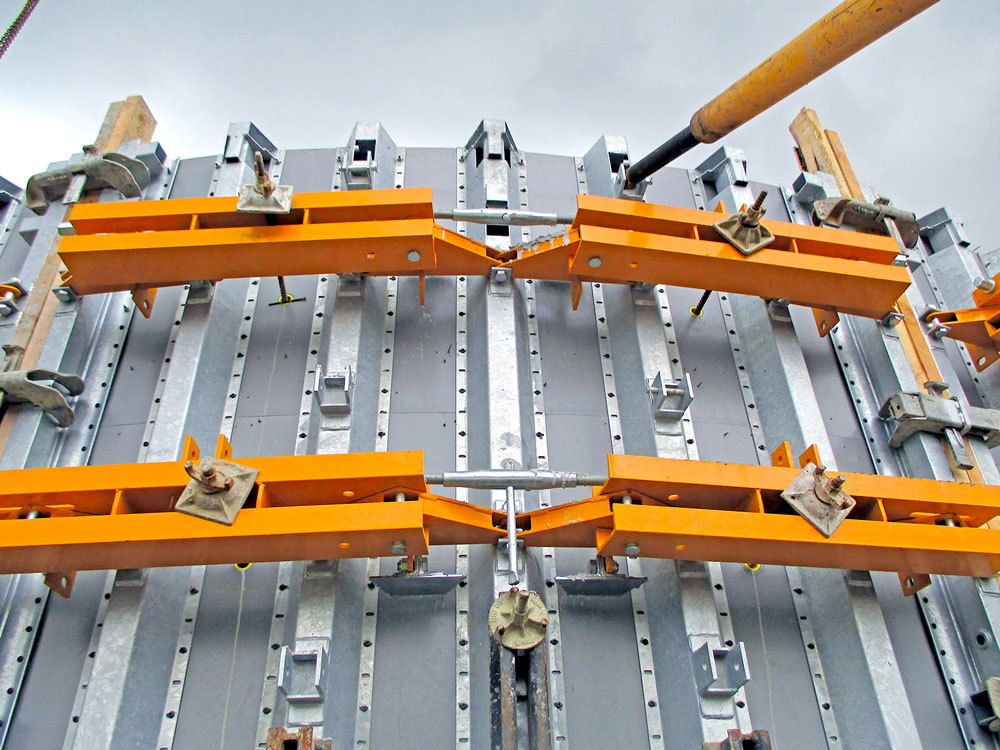

- Easy curving system with only 4 adjustment points
- Simple placement of compensation plates between panels
ELEMENTS
The same elements are used for vertical and horizontal joints
COLORS
A wide range of panels for all circumferences and heights. Interior and exterior panels are differentiated by colour
ASSEMBLE
Assemblies are easy to handle with different lifting systems

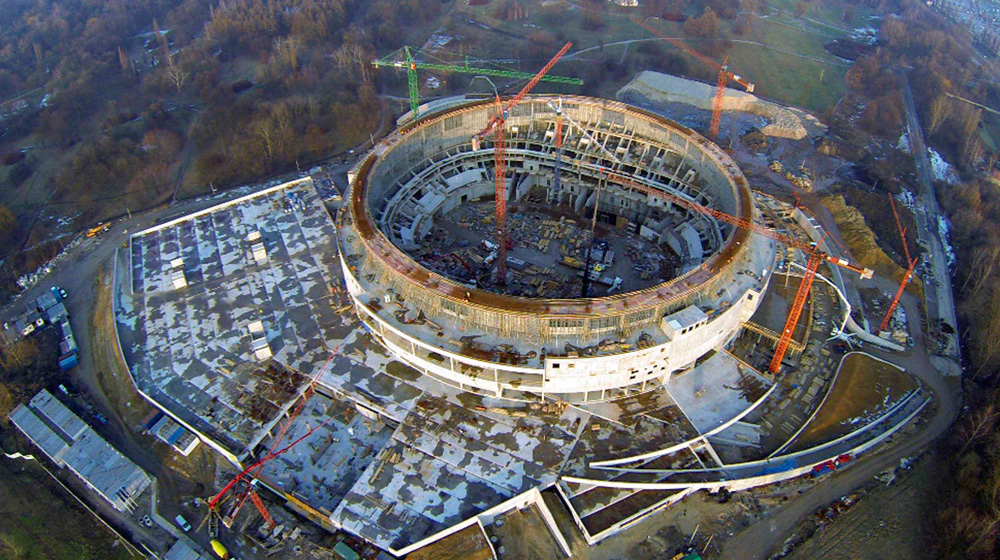

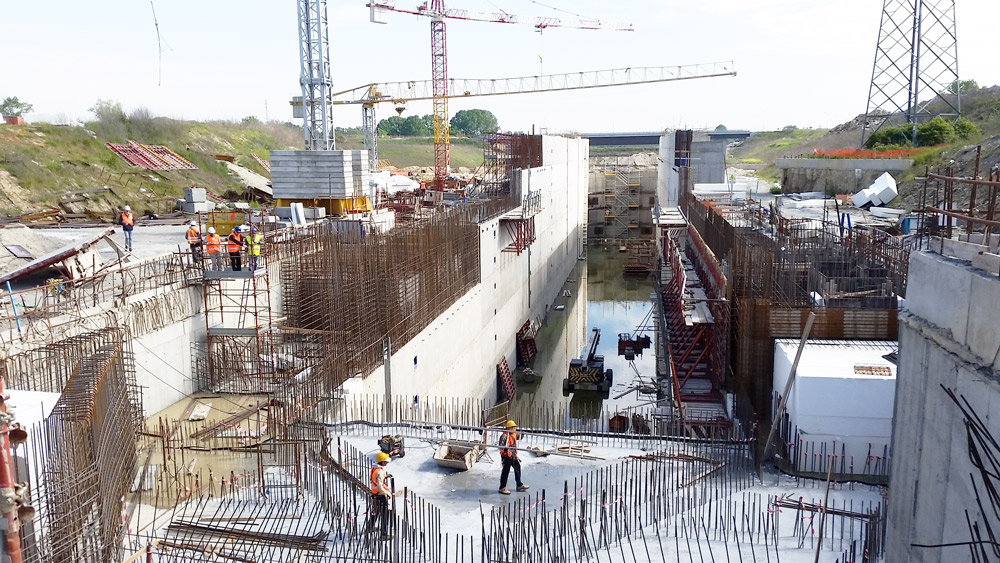

PROJECTS
