NEXCLAD 14 TILES
NEXCLAD 14 TILES
NeXclad 14 is a single-skin, small module terracotta cladding system that is available in a variety of surface textures and boundless color possibilities. NeXclad 14 can be installed directly to wall sheathing or in a rain screen application. Available with a variety of corner options – with exact field tile color matching for a harmonious finish.
INFORMATION
DIMENSIONS(INCH)
- Center To Center Module : 8.25" x 11"
- Tiles : 9" x 14" x .875"
UNIT WEIGHT (LBS)
5.06
DOWNLOAD
QUANTITY PER SQ FT
1.59
WEIGHT (LBS) PER SQ FT
8.05
RAINSCREEN BENEFITS
- Improves structure life expectancy by protecting primary wall with second skin
- Energy savings
- Low maintenance costs
- Lightweight
- Can be installed year-round in all weather conditions
TERRACOTTA PANEL ATTRIBUTES
- Warm, all-natural material provides superior aesthetics
- Variety of colors, textures, and sizes
- Color permanent façade Class A fire rated
- Sustainable material that will last 100 years
- Maintenance free
CERTIFICATIONS
- ASTM C67-07A Breaking Load Test (passed)
- ASTM C67-07A Efflorescence Test (passed)
- ASTM C67-07A Freeze Thaw Test (passed)
- ASTM C67-07A Water Absorption Test (passed)

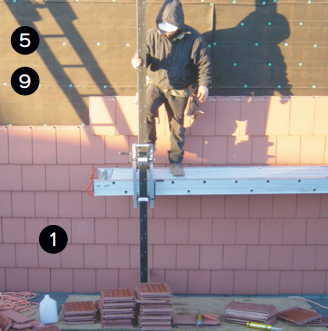

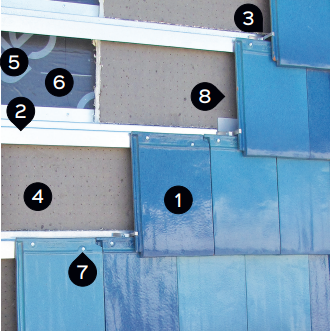

INSTALLATION DETAILS
- NeXclad
- NeXclad system rail
- Restraining clip
- Insulation (rigid or mineral wool) 5
- Air and moisture barrier
- Exterior grade sheathing
- Stainless steel fasteners
- Air cavity
- Nailable exterior grade sheathing
COLORS

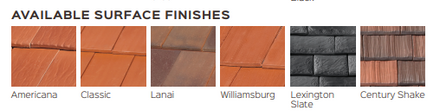

FINISHES
- Americana -Classic -Lanai -Williamsburg -Lexington Slate -Century Shake
