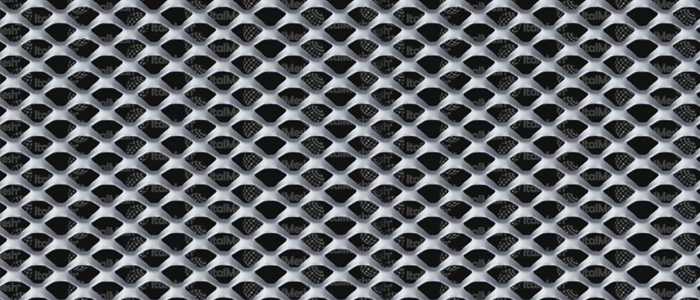

AQUILA PANELS
AQUILA
Net Panels
INFORMATION
MAXIMUM WIDTH OF SHEET / COIL MM: (AQUILA 15 )
- 1,5 Width 1000 – 1250 – 1500
- 2 Width 1000 – 1250 – 1500
ALUMINIUM
- 1,5 Width 1000 – 1250 – 1500
- 2 Width 1000 – 1250 – 1500
AQUILA 5-DETAIL
- Steel Kg/m2 : 4,15
- Aluminum Kg/m2 : 1,50
- Panel Thk mm : 1,5
- Frontal open area aprox : 36%
- Mesh mm : Q6 x 4,5 – 1,2 x 1 Mesh suggested for pressed panels
AQUILA 8-DETAIL
- Steel Kg/m2 : 3,15
- Aluminum Kg/m2 : 1,10
- Panel Thk mm : 2
- Frontal open area aprox : 54%
AQUILA 10-DETAIL
- Steel Kg/m2 : 3,20
- Aluminum Kg/m2 : 1,10
- Panel Thk mm : 2
- Frontal open area aprox : 57%
AQUILA 15-DETAIL
- Steel Kg/m2 : 5,80 ,8,60
- Aluminum Kg/m2 : 2,25, 3,00
- Panel Thk mm : 4
- Frontal open area aprox : 46%
