SKYLINE
SKYLINE
The trunking system for architectural highlights
- Variable in equipment and construction
- Skyline ELS - industry-wide highest energy efficiency
- Skyline ELS sunbloc - sun protection, glare protection and climate control
- Skyline glass - design-oriented, innovative, functional
FEATURES
SKYLINE GLASS - DESIGN-ORIENTED, INNOVATIVE, FUNCTIONAL
Where unmistakable, straight-line glass optics and a high daylight quotient are required, Skyline in glass design shines with an impressive light show and leaves nothing to be desired by architects, planners and civil engineers in terms of innovative design options. All products in the Skyline line can be equipped with a combination sash. This enables efficient smoke extraction that opens upwards and simple ventilation that opens downwards - even in bad weather.
VARIABLE IN EQUIPMENT AND CONSTRUCTION
With its diverse equipment features, Skyline can be integrated into almost any daylight concept - whether it is a new building or renovation project. In the standard variant with glazing made of multi-skin polycarbonate sheets, Skyline is characterized by a high degree of economy and durability.
FALL PROTECTION AND FALL THROUGH PROTECTION
Light strips and skylight domes that are structurally not permanently fall-through must be designed with suitable overlays or undervoltage that prevent people from falling through or falling. INDU LIGHT protection systems are available for light strips and skylights and can also be retrofitted to current INDU LIGHT products.
SKYLINE ELS - INDUSTRY-WIDE HIGHEST ENERGY EFFICIENCY
With the double-shell ELS variant, Skyline sets technological standards with a total thermal insulation value U of up to 0.9 W / m 2 K and excellent sound insulation values of up to 33 dB that is unmatched in the industry .
SKYLINE ELS SUNBLOC - SUN PROTECTION, GLARE PROTECTION AND CLIMATE CONTROL
The ELS sunbloc shading system, which can be integrated into the double-shell structure, not only ensures optimum lighting control, but also a balancing room temperature, depending on the season and needs.
INFORMATION
COATING
We deliver all aluminum profiles on request in RAL colors, according to the DB color card or other common systems. The coloring is done with a durable powder coating - and can also be made seawater-resistant on request. The aluminum profiles can also be anodized.
MATERIAL
- Polycarbonate (PC)
- Acrylic glass (AC)
- Real glass
DOWNLOAD
U GLASS (W / M 2 K)
- 2.9-1.1
- 2.5 - 1.6
- 1.1-0.7
DETAIL
- Shading: inside / outside
- Sound insulation value: up to 33 dB
- Building material class: Bs1dO to E
- Hail protection class: HW3, optional HW5
- Light transmission: variable according to daylight calculation
PROTECTION
Fall-through protection: During installation, optionally permanent
SHEV AND VENTILATION
LEO VENT
With 100 tested device sizes for roof and wall, the INDU LIGHT roof light can be used in a variety of ways and sets standards with an increased snow load of over 500 N / m 2 . With slight structural changes in accordance with DIN 4426 as well as GS-Bau18 and the Swiss SUVA, it is fall-through-proof.
LYRA VENT_A
The LLA louvre fan is equipped with aluminum louvres. It is preferably used as a supply air device in the facade or in the facade light strip or as a ventilation device integrated in light strips.
DRACO VENT

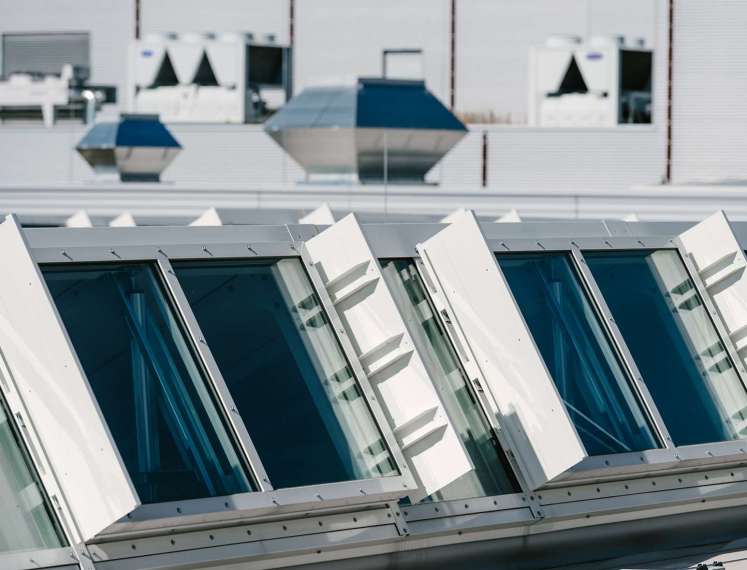

The sophisticated ventilation and RWA sash in the light band with RPV technology (rain-proof ventilation).
