IHC FUNDEX CD20D
IHC FUNDEX CD20D

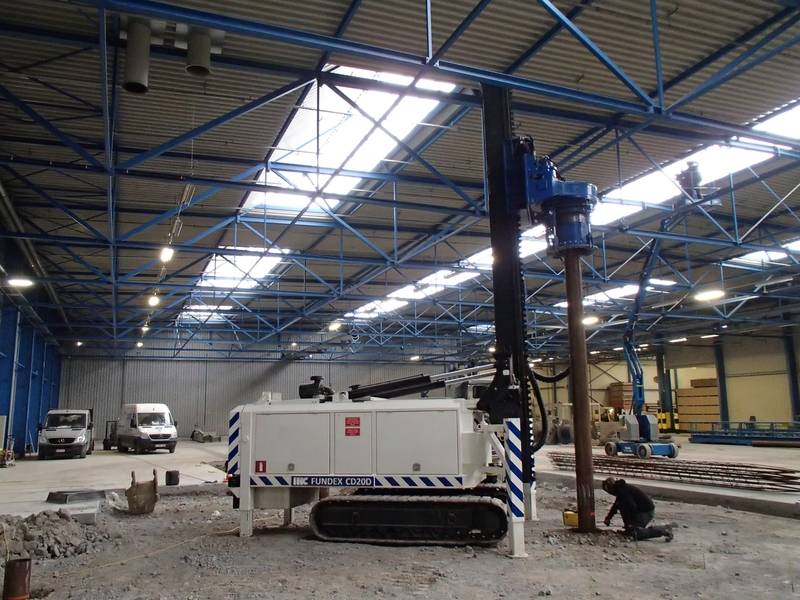

The IHC FUNDEX CD20D is a compact foundation machine for making various piles in places where space and height are limited.
Despite the compact design the machine is powerful and can be equipped with different rotary heads up to 200kNm. The four outriggers enable the machine to be lifted up to rotate the undercarriage in the driving direction to avoid spragging and damage to the working platform.
INFORMATION
EQUIPPED
One machine can be equipped with a 120kNm, 160kNm and 200kNm rotary head
DOWNLOAD
SAFETY
- Suitable for restricted access sites
- Deployable for jobs within buildings
MODULAR SYSTEM
Modular leader set-up enables optimum leader length for every job site
REMOTE CONTROL
Machine is available with remote control unit
OPERATOR
Optimum view for the operator on the working process
DRILLING SYSTEM
Broad scope of pile techniques including soil displacement and CFA drilling
ROTATE SYSTEM
Rotary head stays on the machine during transport
FEATURE
Four outriggers for stability and to lift the machine
HAMMER
Machine can also be equipped with other tools like a vibratory hammer and hydraulic impact hammer.
