PERGOSOLAR
PERGOSOLAR
Range of biovoltaic carports | pergolas for electricity generation and solar protection.
PERGOSOLAR ensures a high level of climatic and thermal comfort all year round. Wall mounted or free-standing PERGOSOLAR enables the creation of an additional living space or a sheltered parking space.
This innovative pergola has a waterproof and modular roof. You can choose from either an electricity-producing roof composed of photovoltaic panels, or the option to open-up the roof to provide ventilation whilst still shading your outdoor living space.

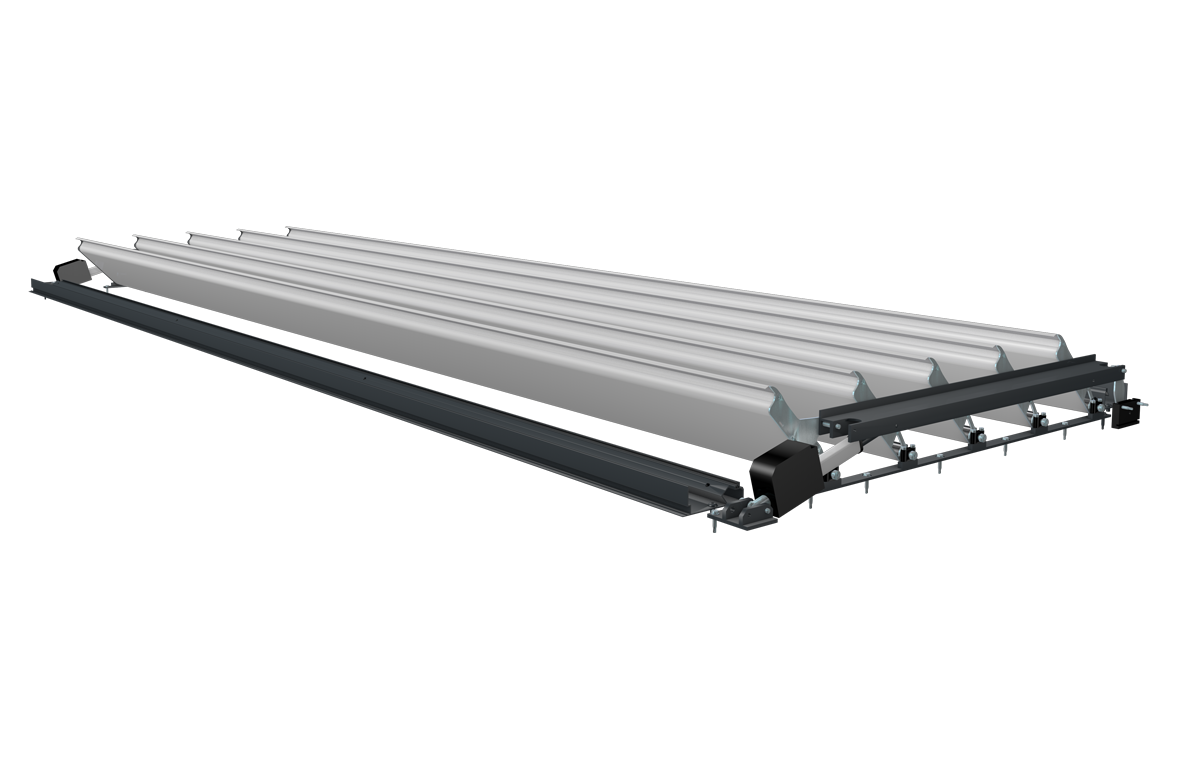

This can be achieved with motorized adjustable blades. Depending on your requirements, you also have the possibility to combine one or more lines of photovoltaic panels with the roof blades to create a truly bespoke feel.
INFORMATION
MULTI APPLICATIONS
- Residential: Terrace, Sundeck, Balcony, Patio, Pool House, Carport, Canopy
- Commercial: Large Patio, Outdoor Shopping Area, Awning
- Public Building: Entrance, Lobby, Smoking Area, Bikes Shelter, Stations
- Industrial Buildings: Shelter, Lean To, Industrial Outlet
A CONCENTRATE OF TECHNOLOGY
- Shed house structure with a customizable roof, PV module slope of 7.5° for extreme energy efficiency whatever the geographical area
- Rainwater harvesting down the supportive feet of the shed,
- Compatible with micro inverters,
- Ground AND / OR wall mounted installations,
- Side and depth junctions possibilities,
- Fully mechanical assembly method,
- Compatible with almost all framed PV modules¹ ²
SIZE
- Each pergola can be wall mounted to a building or simply installed with 4 feet. This free standed configuration is the ideal solution to protect a vehicle. Then choose the size according to the surface to be protected from the sun.
- Foot height: 2400 mm
VERSIONS
PERGOSOLAR 2×2
- Dimensions (A * B) : 2845 * 3676 mm
- Maximum number of PV panels : 4
- Maximum number of adjustable blades kit : 2
- Surface : 10 sqm
PERGOSOLAR 2×3
- Dimensions (A * B) : 2845 * 5376 mm
- Maximum number of PV panels : 6
- Maximum number of adjustable blades kit : 2
- Surface : 15 sqm
PERGOSOLAR 3×2
- Dimensions (A * B) : 4095 * 3676 mm
- Maximum number of PV panels : 3
- Maximum number of adjustable blades kit : 2
- Surface : 15 sqm
PERGOSOLAR 4×2
- Dimensions (A * B) : 5345 * 3676 mm
- Maximum number of PV panels : 8
- Maximum number of adjustable blades kit : 4
- Surface : 20 sqm
PERGOSOLAR 3×3
- Dimensions (A * B) : 4095 * 5376 mm
- Maximum number of PV panels : 9
- Maximum number of adjustable blades kit : 3
- Surface : 22 sqm
PERGOSOLAR 4×3
- Dimensions (A * B) : 5345 * 5376 mm
- Maximum number of PV panels : 12
- Maximum number of adjustable blades kit : 4
- Surface : 28 sqm
COLORS
Pergolas adapt to the architecture of your home and are available in matt anthracite grey RAL 7016 or white RAL 7010.
DETAIL
- PV panels are not included within the PERGOSOLAR kit.
- Compatible with framed PV panels ranging from 1640 to 1700 mm, width: 962 to 1030 mm, thickness: 30 to 50 mm.
