EASY ROOF EVOLUTION
EASY ROOF EVOLUTION
The most reliable in roof mounting system for all energy modules on the market.
INFORMATION
CONCEPT

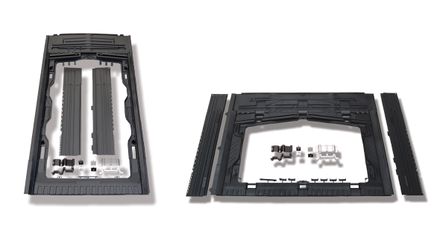

EASY ROOF EVOLUTION is a revolutionary ventilated in roof mounting system for photovoltaic, thermal, aerothermal and hybrid modules. Thanks to an ingenious patented interlocking process, the various parts of the EASY ROOF EVOLUTION fits perfectly together, without cutting, into each other.
TYPES OF ROOF
ADVANTAGES
“Single frame” solution for adjustable assemblies to several MW,Each module can be replaced or removed separately, Installation formats: portrait, pyramid or free (contour of window …),Possible integration at the edge of the roof,Compatible with the EASY ROOF solution for VELUX® (MK06 et MK08) roof window
SYSTEM RELIABILITY
Installation without sealing, Fits all roofs, even distorted, with slopes from 10° to 50°, UV, hail, rust, heat, snow and wind resistant (valid for zone 4: snow and wind according to NV-65 and Eurocode standards), Vents under each module: optimised energy efficiency.
AVAILABLE IN PORTRAIT AND LANDSCAPE
- L-1: PORTRAIT / 1638-1705 * 982-1002 * 30-50
- M-1: LANDSCAPE / 1638-1692 * 982-1002 * 30-50
- P-1: PORTRAIT / 1661-1730 * 1002-1023 * 30-50
- O-1: PORTRAIT / 1535-1559 * 1027-1046 * 30-50
EASY TO INSTALL AND TIME SERVER
- Installation without any cutting needed,
- Top flashing integrated,
- Fixing clamp with a single screw and anti-rotation EASY ROOF technology,
- Speed of mounting : 3kW with 2 fitters installed in 6 hours whatever the PV field.
STORAGE AND EASY TO CARRY
- Common parts in Portrait and Landscape lay-out (except frame),
- Weight (2.5 kg) and not bulky.
GALLERY
