THE INDUSTRIAL FREIGHT LIFT
THE INDUSTRIAL FREIGHT LIFT

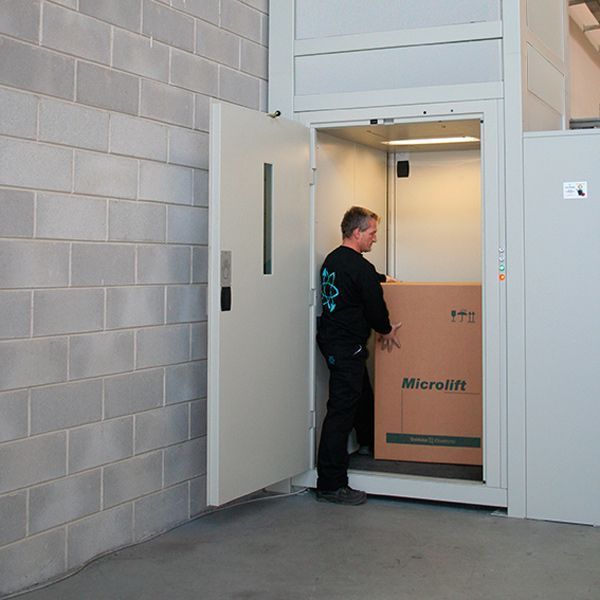

Freight Lift For Goods Only And For Goods With An Attendant
The experience gained and know-how acquired in 60 years in the lift industry operating in the most important markets worldwide, has led to the development of a highly modern range of elevators which feature cutting edge space-saving technology with a pleasing aesthetical design.
Microfreight is designed to offer the simplest, quickest, most economical and reliable solution to heavy lifting problems for goods only or for goods with an attendant in warehouses, industries, supermarkets, shops and in any environment in which it is necessary to move pallets, loads, trolleys, containers, heavy goods, etc.
INFORMATION
TECHNICAL INFORMATION
- Drive system : Traction type.
- Rated load : Microfreight Classic 500-750-1000-1500-2000 kg. , Microfreight Plus 500-750-1000-1400-1800 kg.
- Operation : Fully automatic.
- Max. no. of stops : Up to 8.
- Max. travel. : Up to 15 m (for a longer travel check feasibility).
- Speed : Microfreight Classic max. 0.19 m/s. , Microfreight Plus max. 0.15 m/s.
- Power supply : 3-phase electric motor.
- Motor power : 3 kW for rated load up to 1500 kg. , 4 kW for rated load more than 1500 kg.
- Safety Features : Microfreight fully complies to the Machinery Directive 2006/42/EC and obtained the Type Examination Certificate released by the Notified Body Liftinstituut.
FEATURES
- Goods only lift with rated load from 500 to 2000 kg;
- Goods lift with an attendant with rated load from 500 to 1800 kg;
- Supplied with its own robust structure supported frame which enables it to be installed virtually everywhere and it does not rely on a load bearing wall or a lift shaft for support;
- Especially suitable for transporting goods between floors.
DIMENSIONS
Available in different models offering a wide choice of car sizes. All the models operate inside a rapidly erected structure supported frame baked enamel RAL 7038.
PRODUCT LINES
Microfreight range is composed by two product lines, Microfreight Classic for goods only and Microfreight Plus, with car operation panel, for goods with an attendant. Rated load from 500 to 2000 kg (1800 kg for Microfreight Plus), always supplied with structure supported frame which enables it to be installed virtually everywhere. Especially suitable for transporting goods between floors.
COLORS
Landing doors, single or double hinged, are finished in baked enamel RAL colours (RAL 7038 as standard), or in stainless steel AISI 304. The landing push button station is fitted with "lift arrival", "lift occupied" and "lift position" indicators. Constant pressure push button control in the car and automatic operation at landing for Microfreight Plus model.
INSTALLATION
Range can travel up to a maximum 15 meters and up to two entrances can be fitted on each floor. Thanks to the reliable electronic 3-phase control, efficient motor with high quality
reduction gearbox and electromagnetic disk brake with flywheel for emergency operation, the functioning is extremely quiet and safe in any type of installation.
DOWNLOAD
↓ Brochure
APPLICATIONS
- Industry : Warehouses. Stores, Laboratories, Supermarkets Etc.
- Warehouses
- Supermarkets
- Shopping Centres
OPTIONS
Ultra Compact Headroom UCH (CH+800mm) for models D, DS and XDS. Headroom free of anchoring points. Structure fixing brackets also only on one side of the installation.
OPERATION
The electric operation guarantees optimum performance and extremely low noise production. Microprocessor controlled operation is a further guarantee of performance. A pit of 150 or 180 mm, reduced headroom and standard structure supported frame reduce builder’s work for installation to the minimum.
QUALITY
Intelligent and modern management, maximum product standardization, highly automated production and the adoption of avant-garde technology enable Daldoss to guarantee constant compliance to the standards provided for by UNI EN ISO 9001 Company Certification.
