Drainage to the point
Drainage doesn't just happen in the shower. TECEdrainpoint S integrates reliably and stylishly wherever a drainage solution is intended to drain water apart from the shower area.
The point drain is available in combinations for all application areas – freely assembled in the storage-friendly modular system or especially fast and practical in a complete set for the most standard applications.
TO THE POINT
Whether as a central drainage element or close to the wall – TECEdrainpoint S playfully integrates into any space and impresses as an innovative and versatile system solution.
INFORMATION
SIMPLY HYGIENIC
The drain body of TECEdrainpoint S comes with an odour trap that can be easily removed and cleaned at any time. The design grates then can be placed back over the drain body or screwed in – with the latter being a preferred version especially for the public sector.
TRULY SPECIAL
Whether small or large tile format: in point drainage, the necessary gradient areas integrate harmoniously into the tiling.The floor-level covers come as a design grate made of easy to clean polished stainless steel in two attractive designs or a tile base with or without frames. For perfect integration in the floor covering – especially with natural stone and stoneware.
STYLES
MODULAR SYSTEM

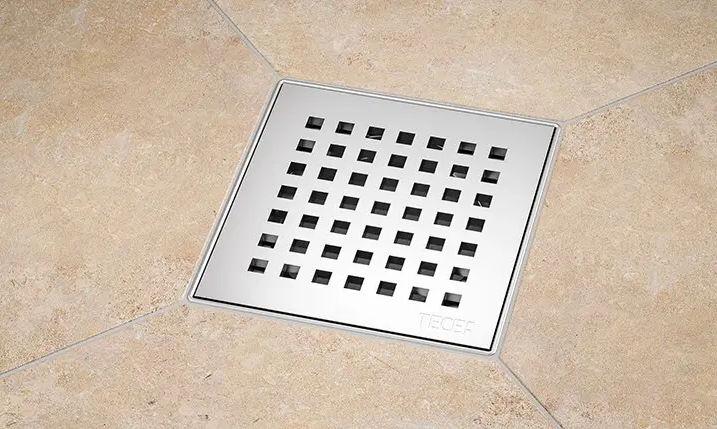

TECEDRAINPOINT S DESIGN GRATE
Covers for TECEdrainpoint S are available in stainless steel in two designs and sizes (100 x 100 mm / 150 x 150 mm) and also as screwed variants. In the case of a cover with tiles, the tile piece is placed directly on the frameless tile base or in the tileable channel. Seven drain sets are available in a complete pack for the most common applications.
NEW: FACTORY-FITTED SEALING SLEEVE FOR THE MODULAR SYSTEM
Serious mistakes sometimes happen when applying sealing tapes on the construction site. This risk can now be minimised at the point drain, too. TECE will in future offer the extra-flat drain set 114 and the plastic grate frame from the TECEdrainpoint range with a factory-fitted sealing sleeve. This ensures a DIN 18534-compliant connection to the tiler’s composite seal.
DRAIN TOP
ACCESSORIES
DRAIN
ASSEMBLY
ONE FLANGE FOR ALL SITUATIONS
The Seal System universal flange enables the connection of two sealing variants with a single flange. Composite seals or adhesive flange connections can be made, e.g. for connection of bitumen membrane sheets.
ASSEMBLY EXAMPLE COMPOSITE SEAL
1 Second layer composite seal
2 Seal System sealing sleeve
3 First layer composite seal
4 Protective film universal flange
5 Screed
ASSEMBLY EXAMPLE ADHESIVE FLANGE
Example for the seal of a TECEdrainpoint S drain with adhesive flange connection and connection to strip seals.
ASSEMBLY OF THE TECEDRAINPOINT S
The instruction shows the assembly with Seal System sealing sleeve in a composite sealing.
