TECHNICA-10
TECHNICA-10
Technica-10 roofing tile is an innovative flat tile in a Marseilles roof tile style. Safer and technologically up-to-date. The most versatile format on the market.
A combination of tradition and technology to make all kinds of projects possible, from the most avant-garde to the most classic.
- Deep channel, extremply watertight
- Great definition
- Easy to install
INFORMATION
MINIMUM PITCH RECOMMENDED
35% – 19º (*)
WEIGHT
3,15 Kg./Teja
DIMENSIONS
- Length: 475 mm
- Width: 262 mm
UNITS/SQ.M.
10,7 UDS.
USEFUL LENGTH
(Batten Distance) Variable 370 - 415 Mm
FEATURES
- Easy to Install
- Minimum slope 35 %
- Longitudinal overlap 45 mm
PALLET INFO FOR CONTAINER
- 210 Units
- 750 Kg.
MINIMUM ORDER
5 Roof Tiles
PALLET INFO
- 280 Units
- 1.000 Kg.
USEFUL WIDTH
258 mm
UNITS PER ML EAVE LINE
4,5
APPROXIMATE VALUES
If the roof tiles are installed on battens, the useful length must be calculated on site. A tolerance of ± 2% is allowed on the dimensions of the roof tiles according to UNE-EN 1024.
(*) In zone 1 (protected area), arranged in staggered formation with waterproof laminate and batten distance of 380 mm on a skirt of up to 6.5 m. Check pitch pannel according to the roof length and the geographical area according to UNE-EN 136020.
FINISHES
ACCESSORIES

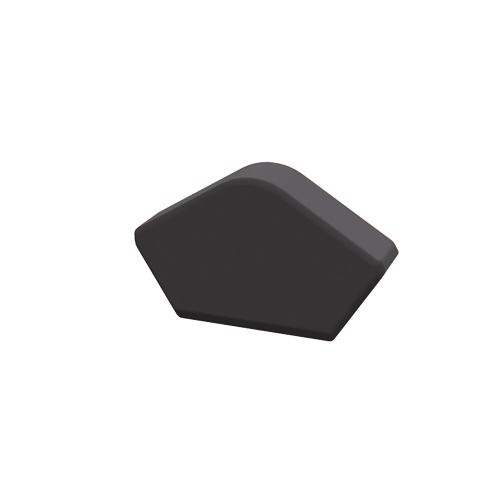

RIDGES AND HIP LINES
Angular Ridge
100º Ridge
High 100º Ridge
EDGES AND HALF ROOF TILES
VENTILATION
