Tejas Borja Flat-5xl® Roofing Tiles
FLAT-5XL® ROOFING TILES
FLAT-5XL® ROOFING TILES
The FLAT-5XL® is another example of the innovation, development and improvement of our products which, together with our exclusive BorjaJET finishing technology, can make architects’ impossible dreams a reality.
The largest ceramic roof tile ever made.
- High performance in installation (5 units/sq.m.)
- Wide range of finishes (BorjaJET exclusive)
INFORMATION
DIMENSIONS
- Length: 457 mm
- Width: 510 mm
WEIGHT
6,55 Kg./Teja
USEFUL LENGTH
(Batten distance) VARIABLE 340 - 390 mm
MINIMUM PITCH RECOMMENDED
35% – 19º (*)
FEATURES
- Maximum surface flatness
- Minimum slope 35 %
- Longitudinal overlap 50 mm
- Flexural strength
USEFUL WIDTH
476 mm
PALLET INFO
- 152 units
- 1.023 Kg.
MINIMUM ORDER
2 Roof tiles
UNITS/SQ.M.
5,5 Uds.
APPROXIMATELY VALUE
If the roof tiles are installed on battens, the useful length must be calculated on site. A tolerance of ± 2% is allowed on the dimensions of the roof tiles according to UNE-EN 1024.
(*) In zone 1 (protected area), arranged in staggered formation with waterproof laminate and batten distance of 340 mm on a skirt of up to 6.5 m. Check pitch pannel according to the roof length and the geographical area according to UNE-EN 136020.

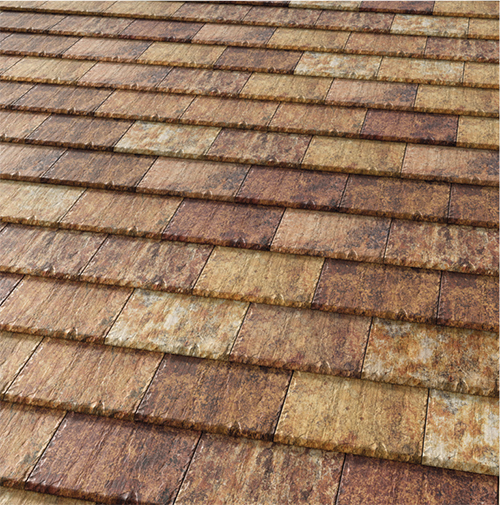

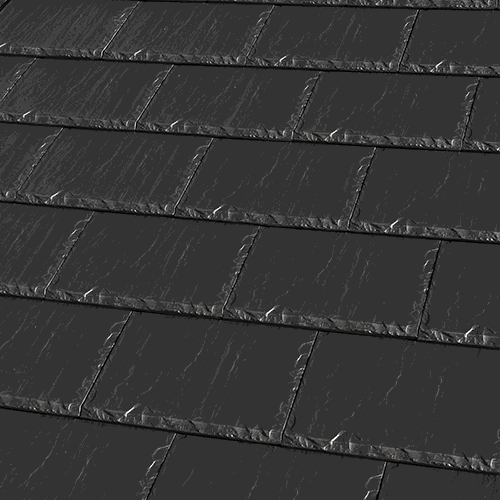

FINISHES
ACCESSORIES

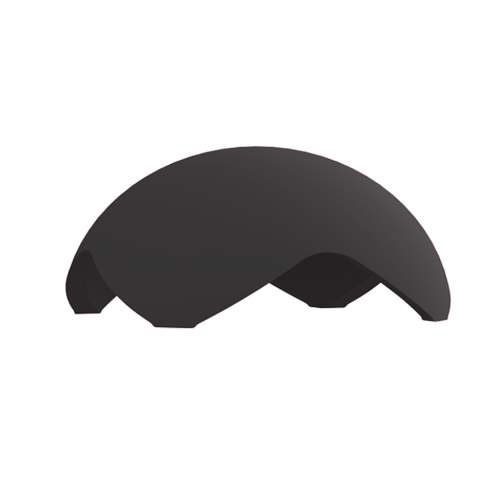

RIDGES AND HIP LINES
100º RIDGE
HIGH 100º RIDGE
ANGULAR RIDGE
EDGES AND HALF ROOF TILES
STRAIGHT EDGES
HALF ROOF TILES
VENTILATION
VENTILATION ROOF TILE
CHIMNEY CARRIER
OTHER VENTILATION ACCESSORIES
