Leccor Fiaccola Type 410 El

Sat Mar 19, 2022Steel, GlassLeccor Leuchten GmbH

FIACCOLA TYPE 410 EL

FIACCOLA TYPE 410 EL

Bollard, stainless steel (V2A / V4A, glass bead blasted)

With a lighting tube in it‘s centre, safeguarded by a transparent or frosted protection tube and encased by a tube made of glassbeaded stainless steel.

INFORMATION

PROTECTIVE TUBE

- Polycarbonate transparent or frosted
- Shockproof, dust-proof, jet-proof IP 65
- Protection class 1 or 2

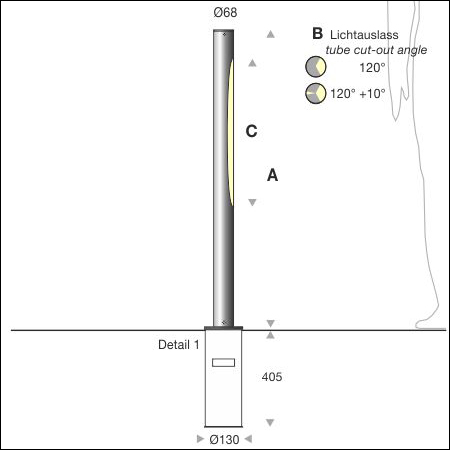

DESIGN TUBE

- Ø68 mm (Ø76 mm) stainless steel V2A / V4A
- Surface glass bead blasted
- Standard lengths A = 1000, 1700, 2070 mm
- Light outlet angle B = 120°, 120° + 10°

GROUND MOUNTING

- 360° rotatable
- Ground sleeve on request

BATTERIES

Item-No.	A	B	C	Illuminant
LED500050410EL	1000	120°	560	LED 9 Watt
LED50005041010EL	1000	120°\|10°	560	LED 9 Watt
LED500070410EL	1700	120°	1120	LED 18 Watt
LED50007041010EL	1700	120°\|10°	1120	LED 18 Watt
LED500090410EL	2070	120°	1400	LED 22,5 Watt
LED50009041010EL	2070	120°\|10°	1400	LED 22,5 Watt
500100198	-	-	-	Ground sleeve

*all dimensions in mmLight colour: LED 3000/4000/5000 K, T5 830 ww / 840 nw
Optional light slit (10°) on back, available colours: white, blue, red, green or RGB
Available with 230V direct connection, no driver needed!
Further models and illuminants on request.
*We reserve the right of changing specifications in case of technical improvement.

DOWNLOADS

↓ DataSheet FIACCOLA type 410 EL
↓ DataSheet ground sleeve D130
↓ Brochure FIACCOLA type 410

Assembly Instructions
↓ Assembly Instructions FIACCOLA 410 series

LDT/IES-Data
↓ LDT FIACCOLA type 410
↓ IES FIACCOLA type 410
