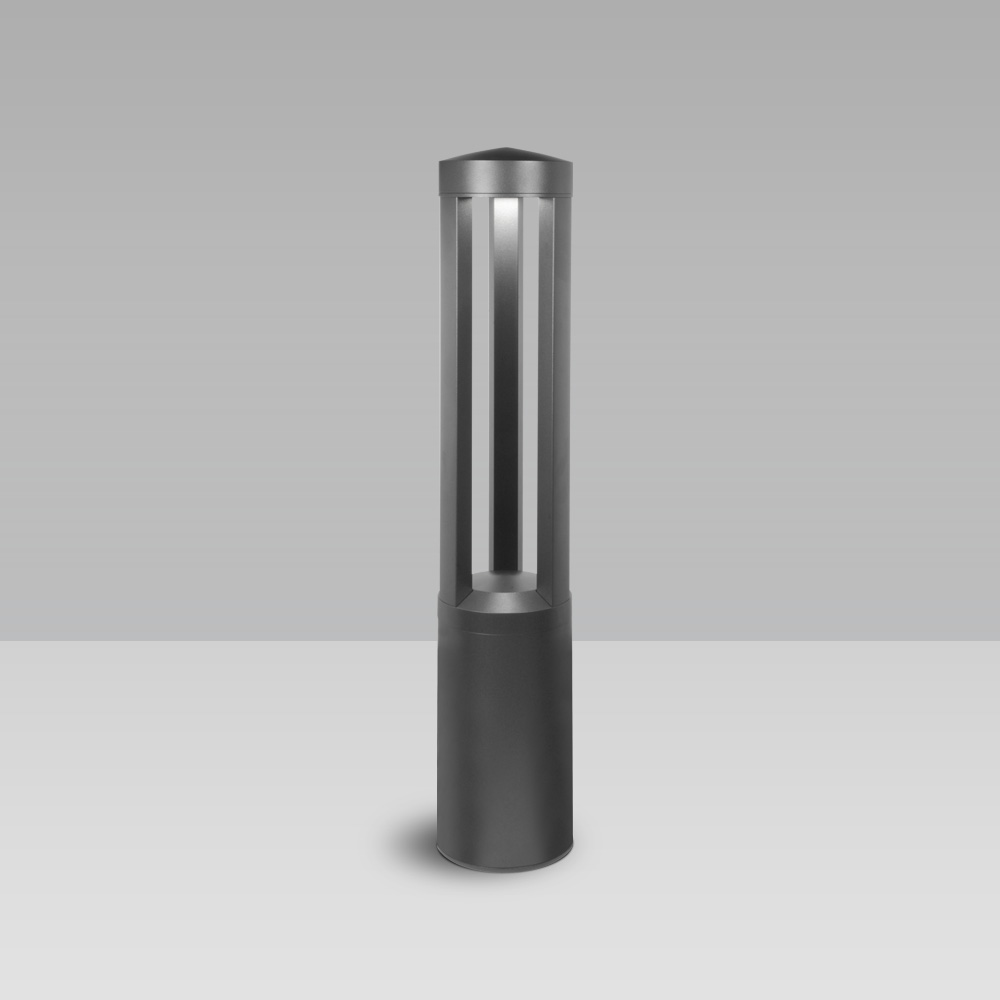

SOUL 180 BOLLARD LIGHTS
SOUL 180 BOLLARD LIGHTS
Innovative LED fitting for urban lighting, characterized by a simple and modern design and a strong structure able to include 3 LED sources with radial optic, for a diffuse and homogeneous lighting. It is suitable in different colour temperatures. SOUL180 is a lighting solution able to integrate to every urban area in an elegant way.

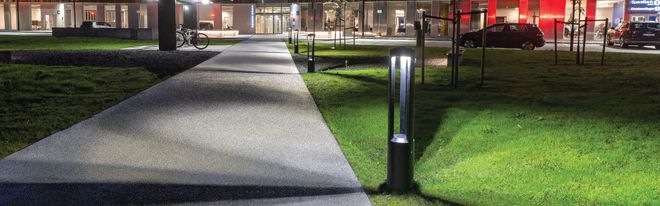

It has a particular vocation for public lighting or residential areas, squares or pedestrian malls. It is equipped with a basement in galvanized steel. Available also in bollard version, perfect to complete the lighting of a park or a pedestrian mall, ideal for add elegance to an entrance path or to enhance a private garden.
INFORMATION
FEATURES
- Die-cast aluminium body for resistance and solidity
- Silicone rubber gaskets for a high tightness
- Tempered glass screen, resistant to thermal shocks
- Bi-power system to design and optimize power and consumption
POWER SUPPLY
220-240V 50/60Hz
DIMENSIONS
- A: Ø 182mm
- B: 1000mm
- Weight: 8.5 Kg
LED LIFE TIME
>60000h - L80 - B20 (Ta 25°C)
NOTE
Different Accessories To Be Ordered Separetely.
MATERIAL
AISI 316 stainless steel external screws.
GASKETS
Silicone rubber gaskets.
POLE
Extruded aluminium pole.
LAYER
Double layer polyester powder paint resistant to corrosion and salt spray fog.
INSTALLATION
- Bollard installation.
- Double grommet M20 for through wiring.
- Die-cast aluminium base (EN 47100) for ground anchoring for rawlplugs.
- Supplied with power cable.
GLASS
Screen made of 4mm thermal-shock resistant tempered glass.
LIGHT SOURCE
LED, 4000K, 16W, 2400lm, CRI>80
HIGH COLOUR CONSISTENCY
< 3 SDCM
LUMINAIRE EFFICACY
82lm/W
COLOR
Grey - 16
WIRING
On/Off
LUMINAIRE
19W, 1550lm
