Arcluce Zoya
ZOYA LIGHTING
ZOYA URBAN LIGHTING

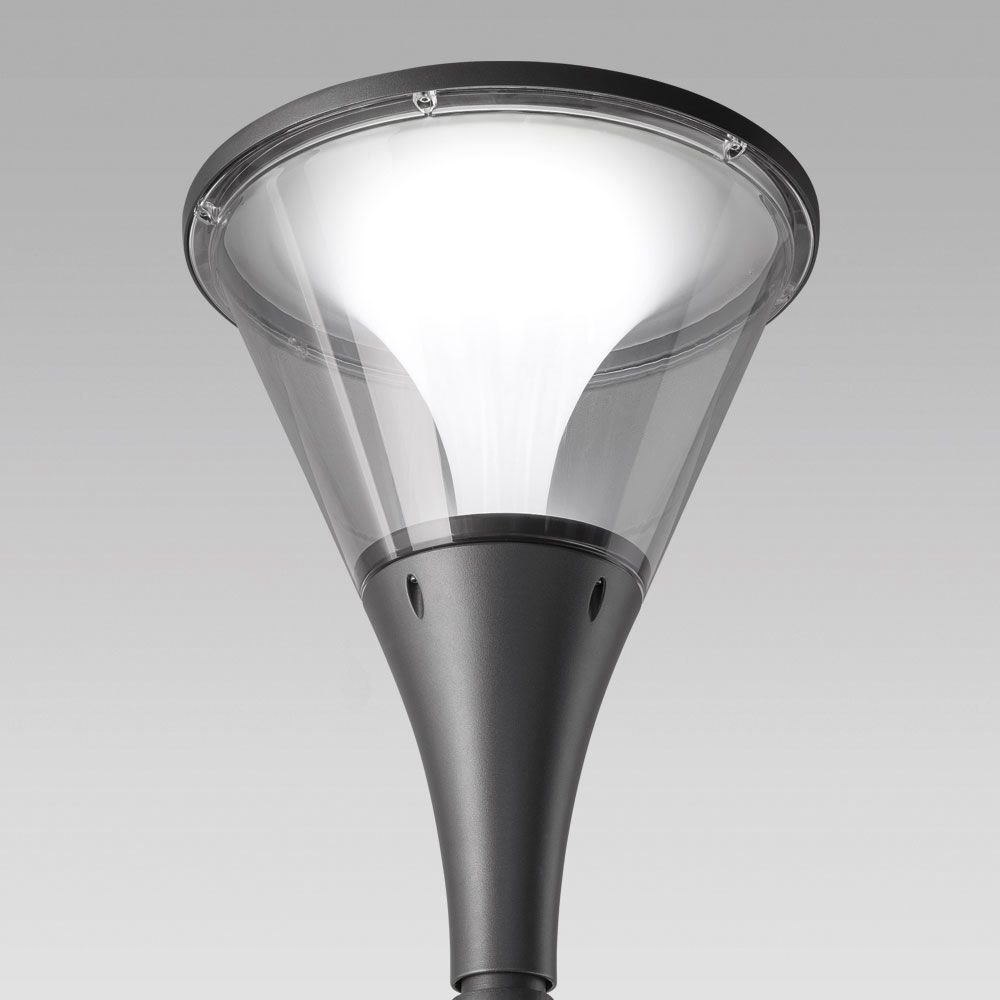

Led fitting with classic and innovative design, which makes light the protagonist, matching elegance and performance. ZOYA is an urban lighting suitable for light up pedestrian paths, squares and parks, particularly suitable to add a touch of style to a prestigious pedestrian mall. It can be installed on the wall or directly on the pole head, or installed on mono and double pole attachments.
The three versions of the screen allow the diffuse radial optic ensures a high visual comfort and no direct glare.
The product is available in different powers and colour temperatures.
INFORMATION
WEIGHT
8.6 Kg
COLOR
Aluminium - 21
OPTICS
Type VS
WIRING
On/Off
POWER SUPPLY
220-240V 50/60Hz
HIGH COLOUR CONSISTENCY
< 3 SDCM
LED LIFETIME
>60000h - L80 - B20 (Ta 25°C)
LUMINAIRE
40W, 4350lm
LUMINAIRE EFFICACY
109lm/W
INSTALLATION
- Post-top installation (Ø60mm reduction).
- Supplied with power cable ended (0.15m) by IP66 socket-plug connector with locking ring for cables of diameter 9-12mm.
LIGHT SOURCE
LED, 4000K, 36W, 5400lm, CRI>80
DIMENSIONS
- A: Ø 492mm
- B: 640mm
DOWNLOADS
↓ Technical sheet
↓ LDT photometry
↓ IES photometry
↓ 3DS file
↓ DXF file
↓ Specification
↓ Product image
↓ Energy label
↓ Assembly instructionsP
↓ Product chapter PDF
FEATURES
- Die-cast aluminium body and cap, for a high resistance
- Silicone rubber gaskets for a high tightness
- Double internal opaline screen and external transparent screen, or single/opal transparent screen
- Transparent polycarbonate diffuser, unbreakable and anti-yellowing
- Bi-power system to design and optimize power and consumption
