Poresta Loft
LOFT
THE INSPIRATION OF STRAIGHT LINES.
The floor level shower system with finished surface and elegant point drainage.
Floor level shower system, prefabricated at the factory with mineral composite surface made of solid material in white, rectangular outlet cover made of mineral composite, centred built-in drainage unit and factory integrated sealing sleeve with preformed corners for sealing to adjoining walls/floors, with preformed gradients of 2.0 – 2.5%. Low net weight.
Complete system with high quality surfaces made of mineral composite, horizontal or vertical outlet and circumferential sealing sleeve.horizontal super-flat outlet supplied; vertical outlet optional. Drainage capacity of horizontal super-flat outlet:36 l/min.Drainage capacity of vertical outlet: 42 l/min. Warm on the feet Certificated R9 slip prevention Connection in accordance with DN 50.High stability and tread resistance due to the Poresta®support plate.
DIN 4109/VDI 4100: There are test certificates or statements from the Frauenhofer Institute for building physics on the sound levels to be achieved (water impact noise and footfall sound insulation) when installing with Poresta® sound insulation accessories
INFORMATION

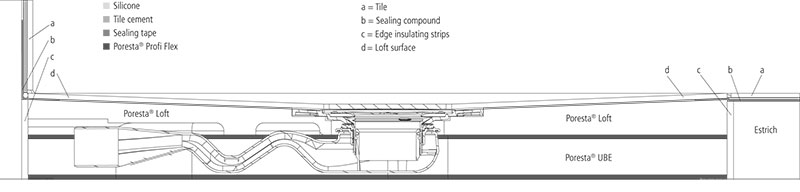

SHOWER SYSTEM PROFILE
TYPES
- Square
- Rectangle
DOWNLOADS
↓ Brochure
↓ Product Catalogus
ACCESSORIES-MOUNTING
- Poresta® Profi Flex
- Poresta® soundproofing kits
- Poresta® UBE foundation elements for height adjustment of expanded polystyrene as an alternative to screed base
ACCESSORIES-SEALING
- Poresta® Safety Cut
- Poresta® KMK 1K, 2 kg container
- Poresta® KMK TI sealingstrip, inner corner, transversally elastic, fleece-lined
- Poresta® KMK TA sealing strip, outer corner, transversally elastic, fleece-lined
- Poresta® KMK T joint sealing strip, transversally elastic, fleece-lined, 100 mm wide, for sealing joints beneath ceramic tiles in damp and wet room environments
BUILDING PHYSICS
- Sealing: Shower element with pre-installed sealing sleeve can be sealed to walls and floors with Poresta® KMK 1K sealing compound
- Soundproofing : DIN 4109 / ÖNORM B8115 / SIA 181: Technical reports from the Fraunhofer Institute for Building Physics verify the achievable noise levels (water impact noise, EMPA hammer, impact noise reduction) for installations with Poresta®soundproofing accessories. See the soundproofing brochure for details: www.poresta.com
- Fireproofing : Information is currently unavailable

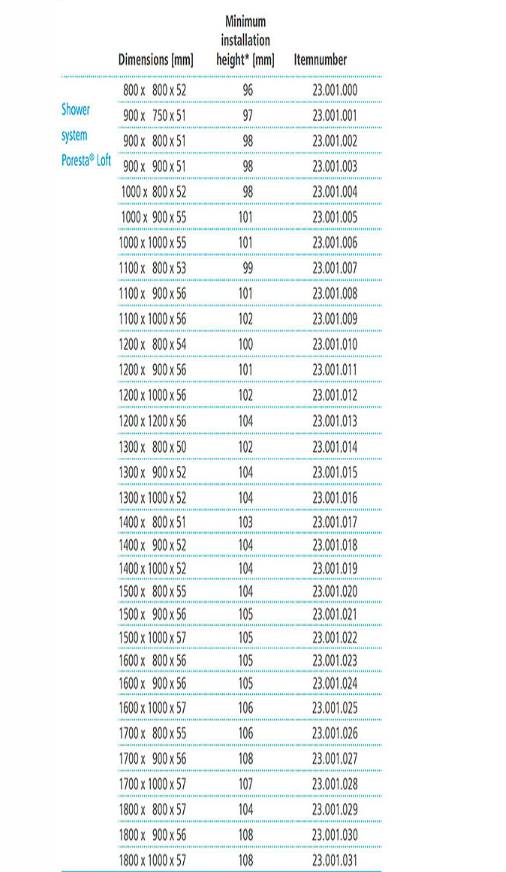

DIMENSIONS
