Heroal C 50 PH Curtain Wall System
HEROAL C 50
HEROAL C 50 PH
The curtain wall system certified for passive houses.
heroal C 50 PH is the logical and systematic development of the already highly insulated heroal C 50 HI curtain wall system, with which minimum Uf values of 0.78 W/m2K can be achieved in the transom-mullion design.
The system is passive-house-certified thanks to the appropriate façade panel and glazing. The modular heroal insulation zone reduces energy loss to a minimum through the use of innovative materials. The innovative concept for heat insulation is equipped with foam-filled insulators and modified insulator damping and the continuous seal as standard.
INFORMATION

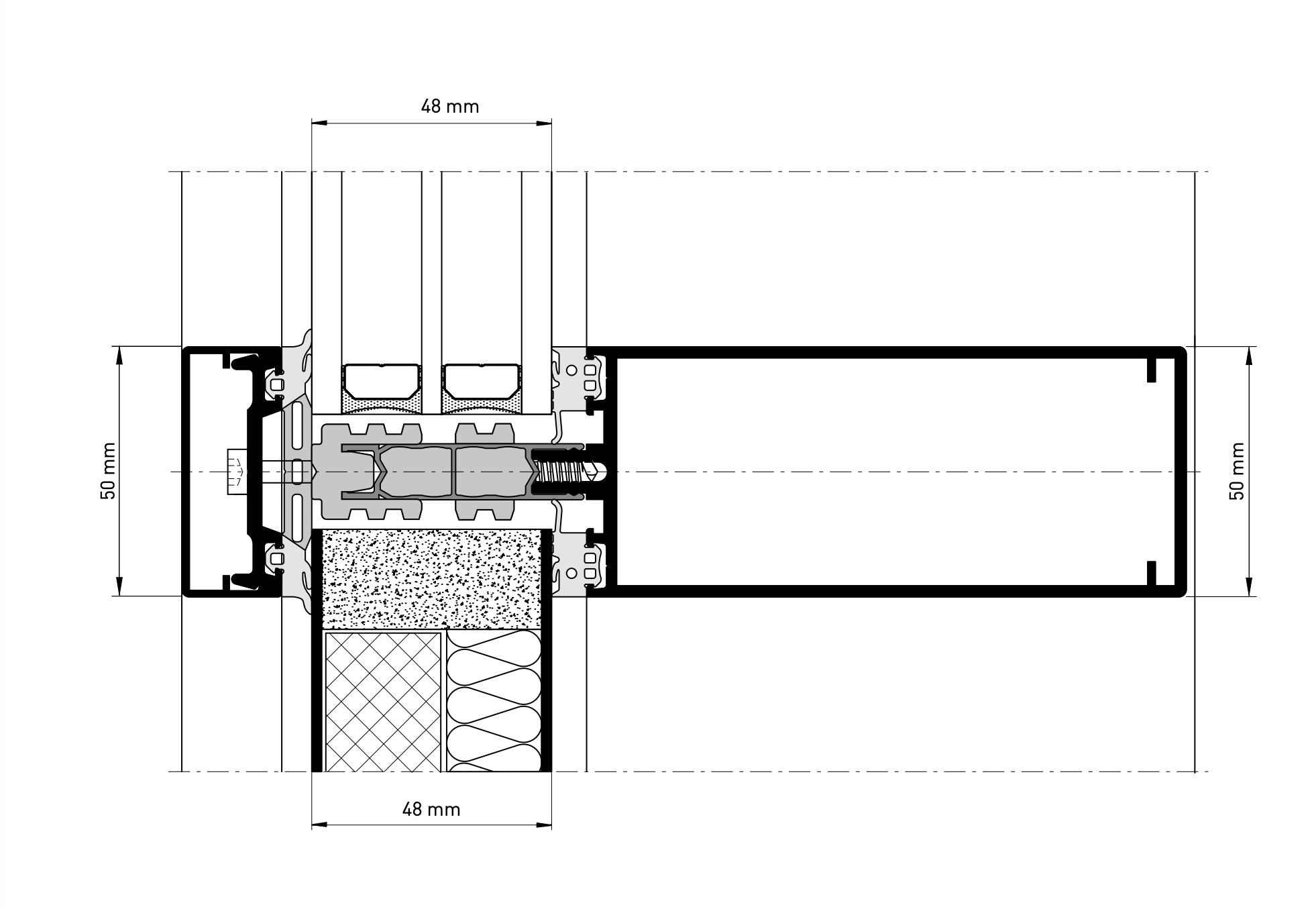

SYSTEM DIMENSIONS
- View width [mm] : 50
- Construction depth [mm] : 115
- Transom profile depth [mm] : 120
- Glass filling strength [mm] : 48
- Max. weight of filling element [kg] : 380
SYSTEM PROPERTIES
- Heat insulation: Uf ≥ 0.78 W/m2K
- Tightness against driving rain: RE 1050
- Air permeability: AE
- Shock resistance: I5/ E5
WIND LOAD RESISTANCE
2 kN/m2 (perm.load), 3 kN/m2 (pos. load)
AIR PERMEABILITY
< 0.5 m3/h m at pressure> 600 PA

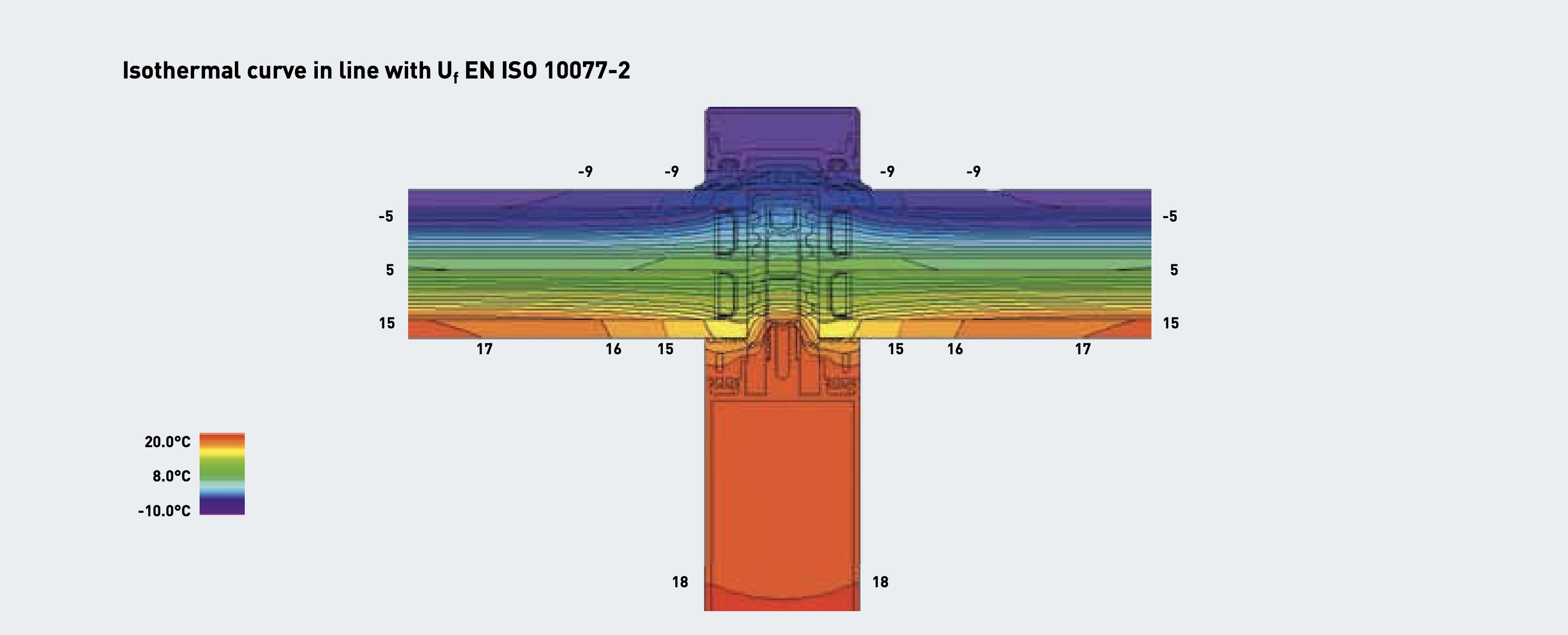

ISOTHERMAL CURVE
PERFORMANCE CHARACTERISTICS
- Thermal insulation [Uf in W/m2K] / Profile width [mm] > 0,78
- Air permeability: AE*
- Resistance to driving rain: RE 1200
- Wind resistance: 2 kN/m2
- Impact resistance: I5/E5
DESIGN OPTIONS
- Transom-mullion, transom-transom or mullion-mullion façade
- Straight or polygon design for floor plan» In sub-areas as roof area, light roof or conservatory
- Integration of all heroal window and door systems including heroal skylights
- Wide variety of cover and pressure profiles
- Colour design with high-quality hwr powder coating
