SHEET PILING TIE BAR SYSTEM
MACALLOY SHEET PILING TIE BAR SYSTEM
TB460, TB520, TB590 & TB700

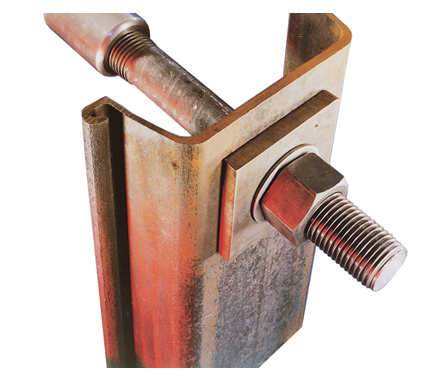

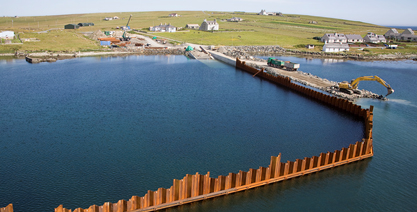

The Macalloy Sheet Piling Tie Bar System is available in 4 different yield strengths from 460 to 700n/mm2. Thread diameters from M42 to M105 are available as standard with thread diameters up to M150 available by special order.
Bars are available up to 11.8 metres in length, with longer lengths achieved through the use of couplers, turnbuckles or other joints.
For corrosive environments, Macalloy can provide a range of protection solutions including galvanising and Denso tape wrapping. Denso Tape is a grease impregnated tape that provides technical and cost advantages over traditional duct and grout or sacrificial corrosion methods .
ACCESSORIES
A complete range of accessories, designed to exceed the capacity of the relevant strength bar is available. Fittings include:
PLATES
- A wide range of bespoke plates are readily available for your project
- Washer plates
- Bearing plates
- Anchor plates
JOINTS
- Articulated joints of all types
- Turnbuckles and couplers
END TERMINATIONS
- Standard end anchorage
- Spherical nut anchorage
- Fork and/or spade connections
PRODUCT NAMES FOR THE RANGE RELATED TO THE YIELD STRENGTH
- TB460 – 460 N/mm² yield strength
- TB520 – 520 N/mm² yield strength
Even higher capacity bars are available, please see the brochure or speak with our technical department for details.
INFORMATION

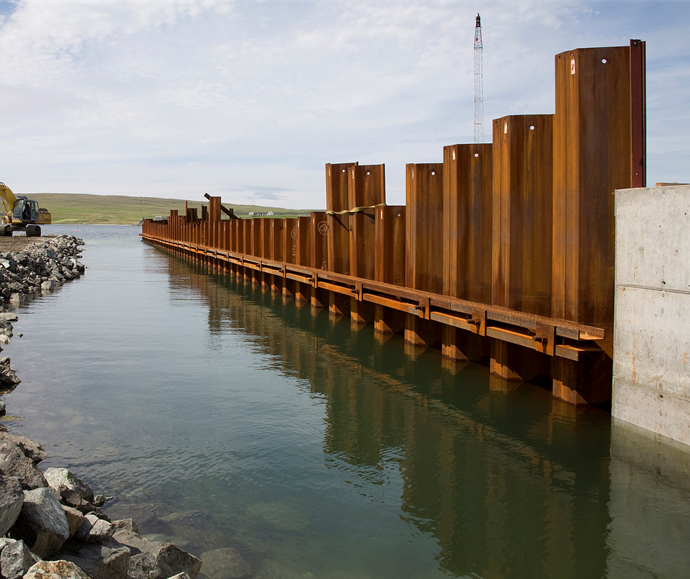

WALING BOLTS
Waling Bolts are used to connect a waling beam to a sheet piling wall. Waling bolts are available in all standard metric thread diameters up to M105 and are available in the strengths to match your tie bars. Details are available by downloading the Macalloy Sheet Piling Tie Bar brochure
LOAD
For more details on the yield load, ultimate load, permanent and temporary working load, tension resistance and weight of bars along with standard component dimensions please download the Macalloy Sheet Piling Brochure.
