Thermal insulation elements for connecting steel structures to reinforced concrete components

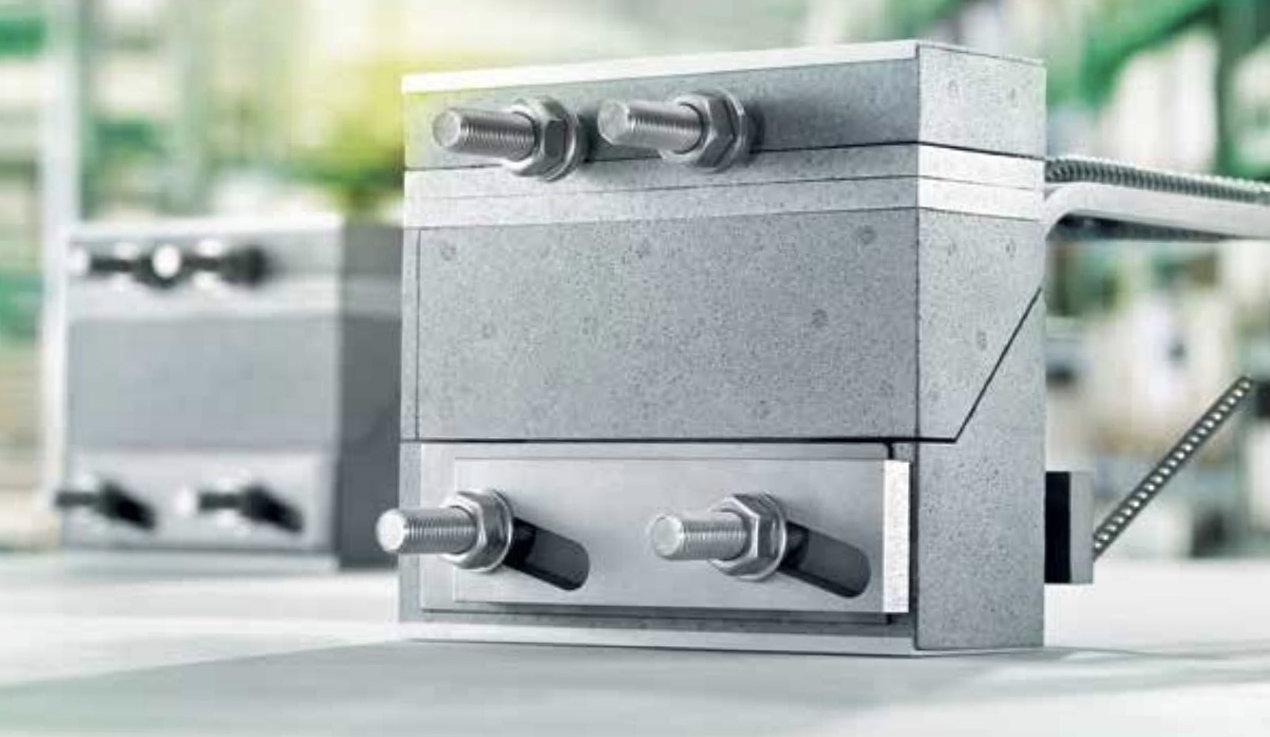

The ISOPRO® thermal insulation elements, types SBM and SBQ, are elements for connecting steel structures to reinforced concrete components. Thanks to the excellent thermal separation of ISOPRO® elements, structural problems at the intersection between exterior and interior building components are resolved safely and reliably. The thermal insulation element consists of an insulating body with a structurally supportive frame for the safe transmission of forces.
The newly developed adjustment plate allows for continuous adjustment to compensate for any structural tolerances. The elements are approved by the building authorities in accordance with no. Z-15.7-313, and reliably reduce thermal bridges in accordance with DIN 4108-2 supplementary sheet 2 and EnEV.
TYPES
ISOPRO® SBM
Thermal insulation element for transmitting bending moments and shearing forces during the connection of a projecting steel structure to a reinforced-concrete component.
ISOPRO® SBQ
Thermally insulated connection for transmitting shearing forces during the connection of a supported steel structure to a reinforced-concrete component.
INFORMATION
FEATURES
- Dimensioning values enshrined in the approval
- Reduces thermal bridges in accordance with DIN 4108-2 and EnEV
- Easy and safe assembly by means of continuously variable height adjustment
STAINLESS STEEL
- S275
- S460
INSULATING BODY
NEOPOR® polystyrene hard foam with λ = 0.031 W/mK
REINFORCING STEEL
B500B
STRUCTURAL STEEL
S235
STANDARD
Approved by the building authorities andtype-tested in accordance with EC2
