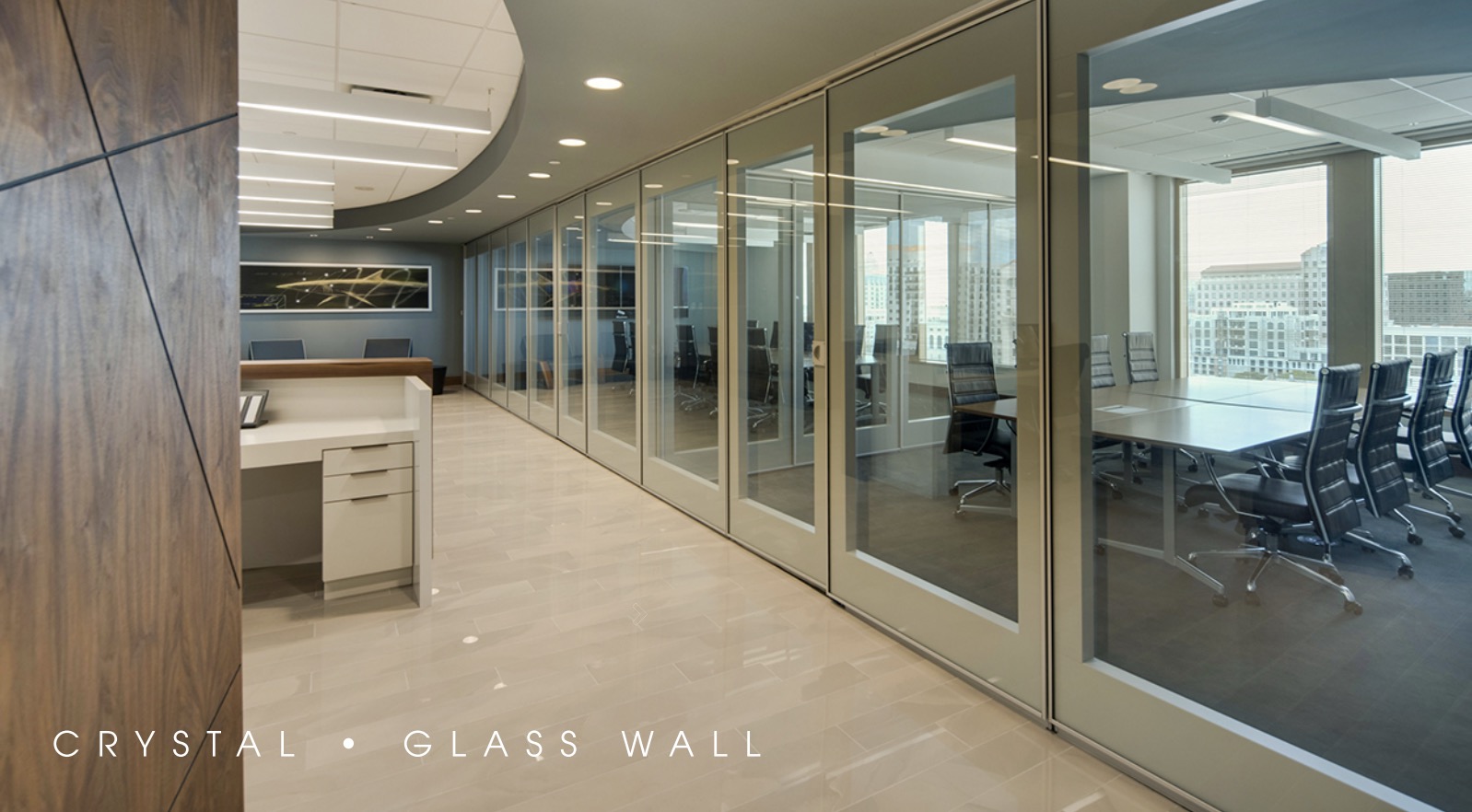

CRYSTAL 200 GLASS WALL
CRYSTAL 200
Glass Wall
Crystal is a double glazed acoustically rated full height glass wall system. Built upon the 45 year time proven platform of a steel reinforced structural frame Crystal provides visual clarity as well as a laboratory tested STC of 44.
It is available in single and paired panel configurations in standard heights of 12’3” (higher upon special request – contact Moderco). A multitude of frame finishes, anodized or powder coated complements glass options such as acid etched, sand blasted, frosted, etched designs, custom applications in addition to clear see through.
And if privacy is a requirement remote controlled internal electrically operated tilting horizontal blinds are available. Locking the panels in place without the need for floor bolts are provided by the use of mechanical top and bottom acoustic seals operated by a removable key thus eliminating use by unauthorized people. Crystal is your only choice when it comes to an acoustical glass partition system.
INFORMATION
DOUBLE GLAZING WITH 3” (75 MM) AIR SPACE
- Superior acoustics
- Laboratory tested STC of 44
- Allows optional remote-controlled horizontal blinds
- 1/4” (6 mm) tempered glass compliant with ASTM C1048
INDIVIDUAL AND PAIRED PANELS
- BEnhanced layout flexibility
- Stacking options: lateral, remote, or center
INTERLOCKING ASTRAGAL
- Glass panels may be mixed with Signature 800 solid panels
- Ensures a rigid flat wall
AVAILABLE OPTIONS
- Frame color: multiple anodizing or powder coating choices
- Multiple choices of glass finishes such as acid-etched,
sand-blasted, frosted, painted, or with etched designs, etc
- Remote-controlled electrically tilting horizontal blinds
- ADA-compliant pass through door
- ADA-compliant pivot closure panel
- Dry-erase white boards, porcelain boards, chalk boards, cork
boards, all inset
- Manually operated top and bottom retractable seals
eliminate all friction during movement of the panels
AUTOMATIC BOTTOM SEALS
- Allows operation of partition without the use of lever or tool
DOWNLOAD
SEALS
- 240 :mm-1.5
- 241 : FA-2/FM-1.5/MM-1.5
- 242 : FA-2
SEALS TYPE
- MM-1.5 : Manually-operated top 1” (25mm) and bottom 1 1/2” (38mm) floor clearance
- FM-1.5 : Fixed top 1” (25mm) and manually-operated bottom 1 1/2” (38mm) floor clearance
- FA-2 : Fixed top 1” (25mm) and automatic bottom 2” (50mm) floor clearance
MODEL SELECTIONS
| MODELS | 240 | 241 | 242 |
|---|---|---|---|
| Operation | Single point | Individual | Paired |
| Configuration | Center | Remote/Side | Center |
| Thickness | - | 4” (102mm) | - |
| STC | 44 | 44 | 44 |
| Max. Height | 12’-3” (3734mm)* | 12′-13″ (3734mm)* | 12′-13″ (3734mm)* |
| Panel Width | Min. 12” (304mm) | Min. 12″ (304mm) Max. 48 1/2″ (1230mm)** | Min 12″ (304mm) Max. 48 1/2″ (1230mm)** |
| Panel Weight | 9.5lbs/sq.ft. (46.5kg per sq.m.) | 9.5lbs/sq.ft. (46.5kg per sq.m.) | 9.5lbs/sq.ft. (46.5kg per sq.m.) |
| Closure | Pivot/Telescopic | Pivot/Telescopic | Pivot/Telescopic |
| Track | #45-T/#7 | #23-T | #45-T/#72 |
