The MODULO MULTI system is an ideal solution for tight urban development, where the ambient conditions do not allow for the construction of a standard or underground parking lot. The number of parking spaces and their configuration can be adjusted to individual customer needs each time.
The system can be expanded vertically and horizontally, which allows you to park up to six vehicles on one traditional site. Another advantage of the system is very quiet operation which gives the possibility of using it inside a residential building.
INFORMATION
BASIC TECHNICAL DATA
The MODULO MULTI parking system is a device that multiplies parking spaces in an independent manner. The device is comprised of: load–bearing structure, hydraulic system with a hydraulic power unit, and electrical system. Each device is equipped with an individual control panel. As particular devices have been assigned individual keys, they cannot be turned on by unauthorised persons. Correct car position is adjusted by means of moveable buffer system on the parking platform. Each control panel has an emergency switch used to stop the device in hazardous situations.
SERVICE
We provide access to full technical documentation and user manuals for users of our systems. We also provide maintenance services and access to the required components.
PROTECTION AND SAFETY
The steel structure is protected against corrosion by design. In addition, electric and hydraulic power units are equipped with their own protection devices that ensure the safety of parked cars.

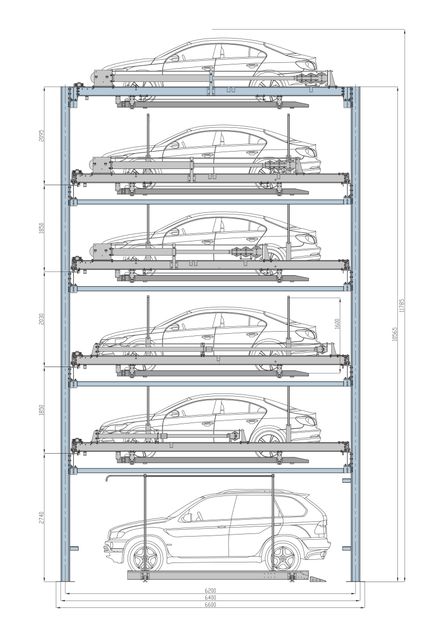

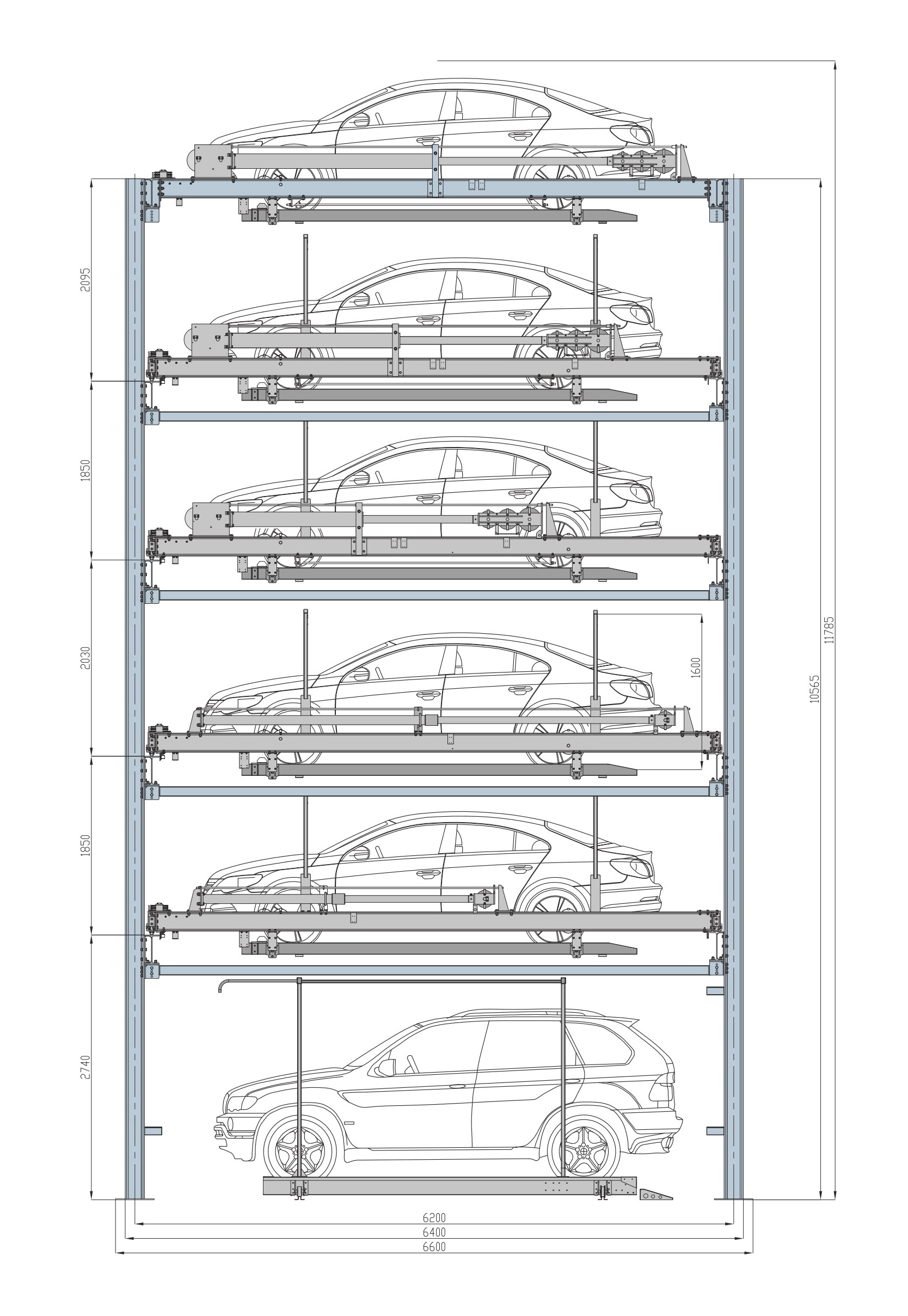

EXAMPLE - 5 CARS IN COLUMN
ATMOSPHERIC CONDITIONS
We guarantee fully stable operation of the System in the temperature range from -30˚C to + 50˚C. The system is resistant to dust and water, additionally car parks with pits are equipped with a collecting pit and a water drainage system.
STANDARD
The enre side (width-wise) of the car park has to be adjacent to an access lane (traffic lane compliant with local regulaons). The system we are offering has been developed in accordance with PN-EN ISO 14010 and the 2006/42/EC Machinery Direcve; it is CE-cerfied.
CORROSION PROTECON
The steel structure is protected against corrosion by design. Corrosion protecon class C3 (medium) as per PN-EN ISO 12944- 2 has been adopted, annual loss of zinc coang in this class amounts to 0.7÷2.1 µm.
AMBIENT CONDIONS
Temperature range: -15°C ÷ +40°C (oponal range: from -30°C or up to +50°C). Operang me of the car park is longer in lowertemperatures orin case oflonger hydraulic lines. Relave air humidity in the maximum operang temperature is 50%.
POWER SUPPLY/ EARTH CONNECON
The customer is the party responsible for providing the control cabinet and the operang panel with power supply during installaon. Cross-secons ofwires are adjusted to the power ofthe devices. It is necessary to install an earthing installaon for the device.
- Total installed power= 4 kW

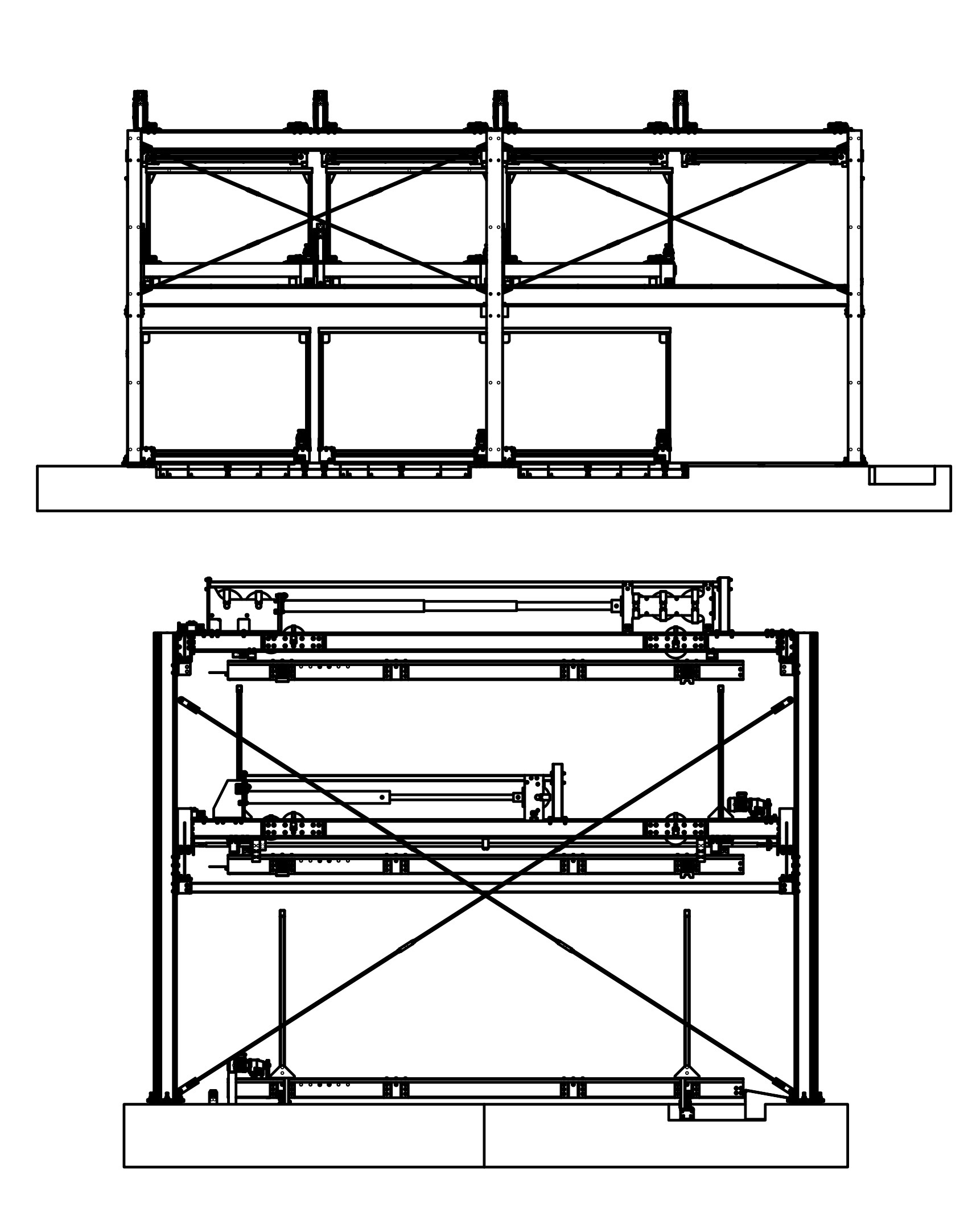

EXAMPLE - 3 CARS IN COLUMN
CAPABILIY

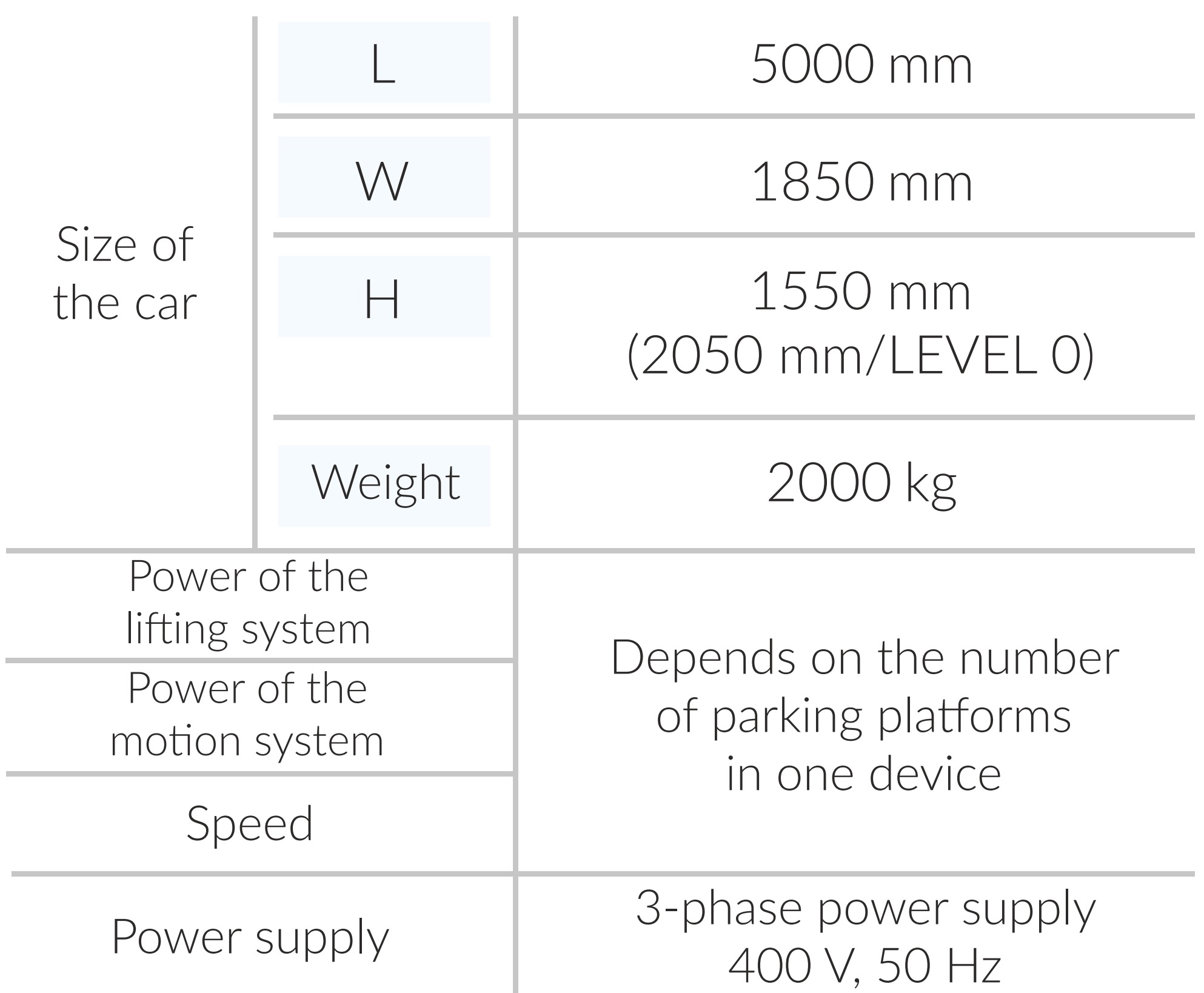

Each construcon dimension provided in the tables is the smallest as-finished dimension. Tolerance for construcon dimensions is +30/0. The dimensions are given in millimetres. Parking capabilies:
- Plaorm on LEVEL 0 (car types: sedan, hatchback, staon wagon, SUV)
- Plaorm on LEVEL 1 or higher (car types: sedan, hatchback, staon wagon)
HOW IT WORK
1. Every plaorm at the highest level, moved on ropes in the vercal axis by operaon of hydraulic cylinders, fueled by energyof oil pressure. 2. Plaorms from LEVEL 0 to penulmate moveable on ropes in vercal axis by operaon of hydraulic cylinders, energyfed oil pressure, and horizontally moved electric motors 3. Plaorms on LEVEL 0 moved only horizontally by electric motors. 4. The driver enters and leaves the car. Then the plaorm with the caris pulled into its posion.
