MODULO SLOPE
MODULO SLOPE
The construction of this system, based on the delicate slant of the lower platform, allows you to double parking spaces in the garage hall, keeping the appropriate space in relation to the height of a specific parking space.
This is particularly important for underground car parks with a limited height. MODULO SLOPE is dedicated to garage halls and underground garages.
However, it is mainly intended for those investments in which we have limitations related to the height of the roof or the depth of the basin (eg in the case when groundwater prevents deep excavations). We also save here at the height of the building itself, which we can develop for the next storey.
INFORMATION
BASIC TECHNICAL DATA
The MODULO SLOPE parking system is a device that multiplies parking spaces in an independent manner. The device is comprised of: load–bearing structure, hydraulic system with a hydraulic power unit, and electrical system. Each device is equipped with an individual control panel.
As particular devices have been assigned individual keys, they cannot be turned on by unauthorised persons. Correct car position is adjusted by means of moveable buffer system on the parking platform. Each control panel has an emergency switch used to stop the device in hazardous situations.

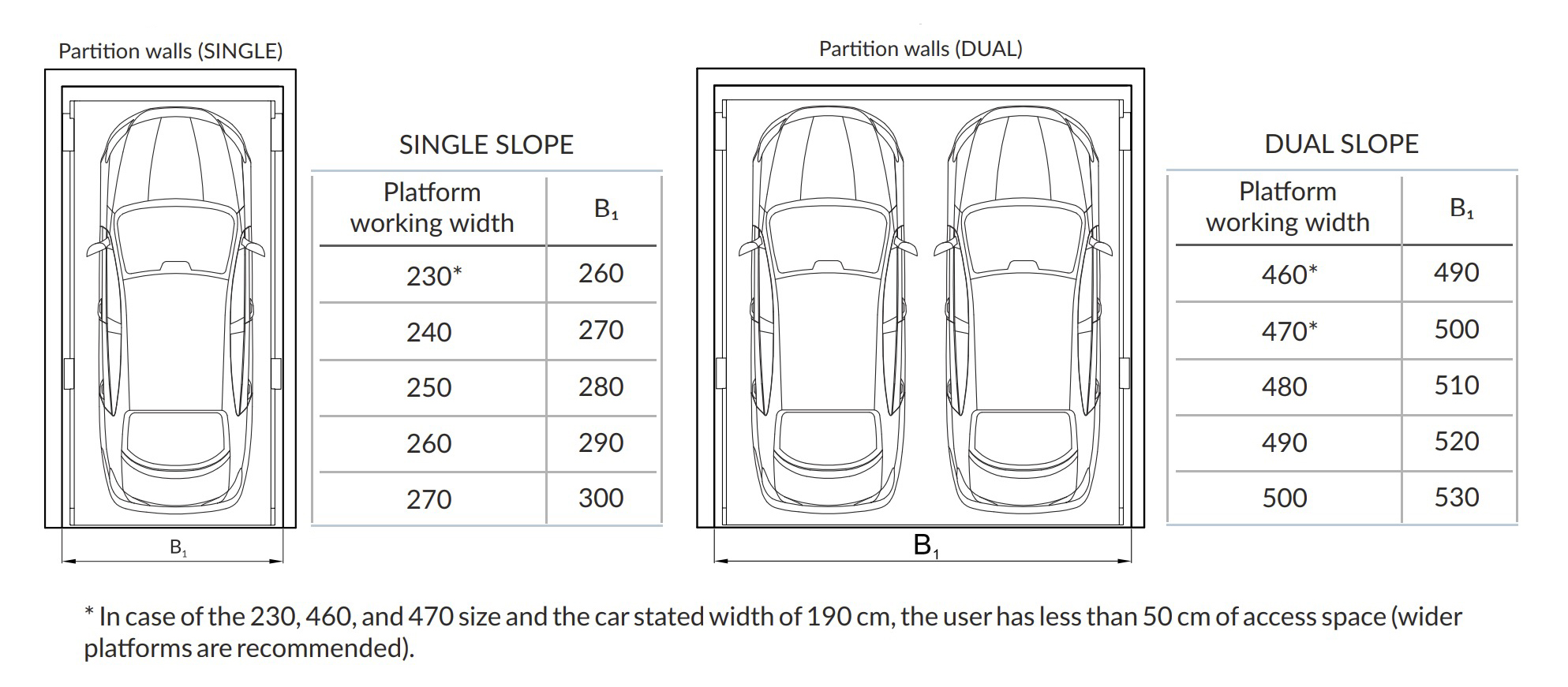

BUILDING STRUCTURE DIMENSIONS
SERVICE
We provide access to full technical documentation and user manuals for users of our systems. We also provide maintenance services and access to the required components.
PROTECTION AND SAFETY
The steel structure is protected against corrosion by design. In addition, electric and hydraulic power units are equipped with their own protection devices that ensure the safety of parked cars.
ATMOSPHERIC CONDITIONS:
We guarantee fully stable operation of the System in the temperature range from -30˚C to + 50˚C. The system is resistant to dust and water, additionally car parks with pits are equipped with a collecting pit and a water drainage system.
DOWNLOAD

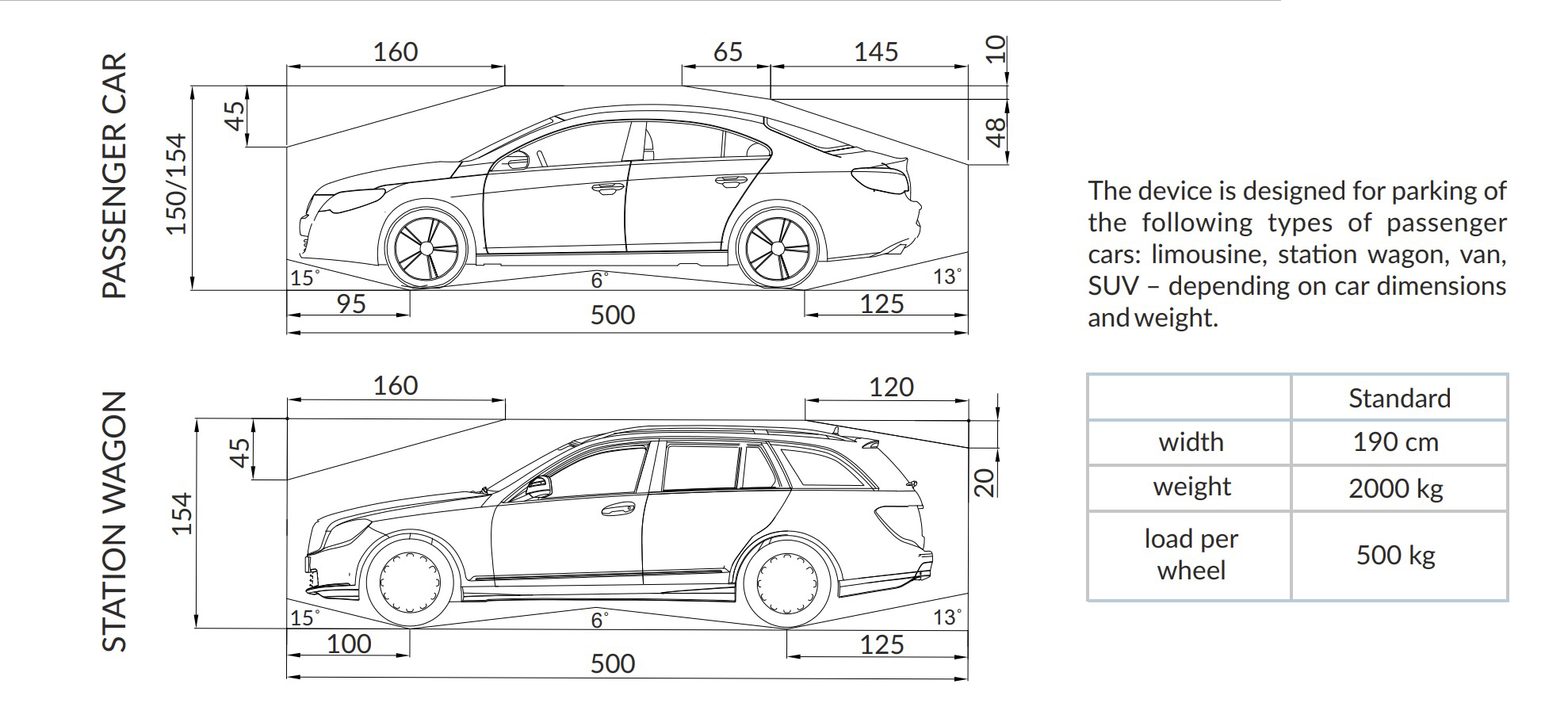

MAXIMUM CAR DIMENSIONS

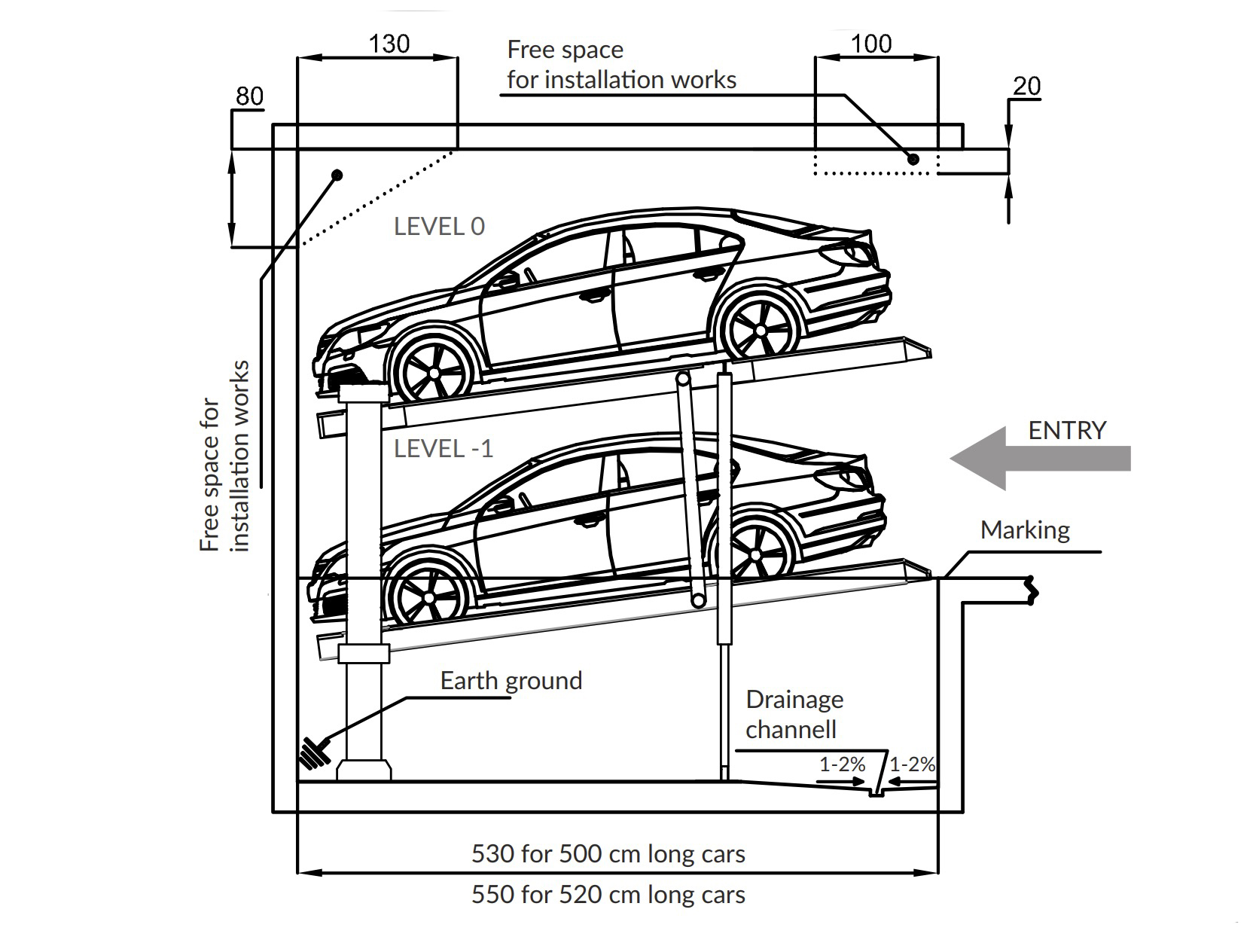

MINIMUM DIMENSIONS OF THE BUILDING STRUCTURE - VERTICAL PROJECTION
CONSTRUCTION REQUIREMENTS
■ The devices have to be anchored to a concrete floor by M12 chemical (adhesive) anchors, with hole depth of ca. 12 cm. The floor should be made of at least class C20/25 concrete, minimum floorthickness – 15 cm. Installaon of all systems and structures that have to be installed in the same space as the parking system must be carried out in such a way that the parked cars are not at risk of being crushed. ■ The manufacturer supplies guard railings installed onto the plaorms that limit access from the parking system side aerthis is agreed (in accordance with PN-EN 14010). Ifthe building structure is such that there are spaces with fall hazard, the customer has to provide suitable guard railings from the building side in accordance with applicable construcon lawprovisions and PN-EN 13857. ■ The ordering party is responsible for designing and implemenng a venlaon and fire protecon system in accordance with applicable regulaons. In addion, the orderer is required to make a recess with the drainage system in the way it does not collide with the construcon elements included in the device specificaon. The contracng authority must also design and prepare space for the assemblyofthe control panel and a short instrucon manual (MODULO scope of delivery).
■ Adetailed foundaon plan forthe structure can be obtained from representaves ofModulo.
DEVICE
DESCRIPTION OF THE PARKING SYSTEM STRUCTURE
The MODULO SLOPE parking system is a device that mulplies the number of parking spaces in a independent manner. The device is powered by a hydraulic power unit. Each device is equipped with an individual control panel that is protected against use by unauthorised persons with a unique key assigned to it. Operaon ofthe device follows the ‘keep pushed to actuate’ principle. Each control panel has an emergency switch used to stop the device in hazardous situaons. Each parking space provides correct car posion adjustment by moveable buffers on the plaorm.
THE SUPPORTING STRUCTURE INCLUDES:
- Two plaorms made of diamond plate sheets
- Two chains
- Four guiding profiles connecng the plaorm
- Four columns anchored to the floor and walls
- Fasteners and securing devices
THE ELECTRICAL SYSTEM INCLUDES:
- Electrical cabinet
- Control panels
THE HYDRAULIC POWER UNIT INCLUDES:
- Hydraulic oil tank
- Hydraulic pump with electric motor
- Pressure adjustment valve
- Oil filter
THE DEVICE CONSISTS OF:
Supporng structure, hydraulic installaon and the hydraulic power unit, electrical installaon.
