W. R. Meadows Waterstop EC
WATERSTOP EC
WATERSTOP EC
Sealing

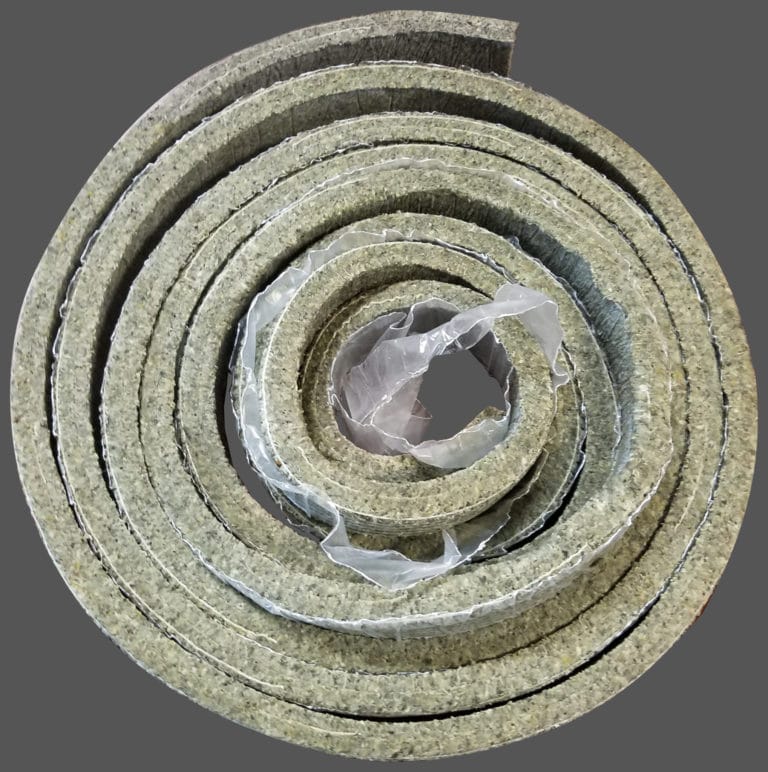

Waterstop ec is a multilayered, bentonite-based waterstop for construction joints.
The self-sealing properties of bentonite are encased within a hydration-resistant core providing both extreme free swell properties as well as delayed swell properties.
INFORMATION
PACKAGING
Standard rolls sizes :
BRAND
W. R. Meadows
PRODUCT TYPE
Waterstop
PRECAUTIONS
Keep WATERSTOP EC dry; protect from exposure to the elements. WATERSTOP EC should be installed at least 2″ (50.8 mm) from the face of the concrete. In areas of high salt concentration, a water sample may be required to determine site suitability for installation.
STORAGE AND HANDLING
- Protect from moisture.
- Store on skid or pallet.
- Cover with polyethylene or tarp.
FEATURES/BENEFITS
-Provides additional strength and structure. -Provides superior performance over the life expectancy of the structure. -High expansion properties seals open areas in concrete surface. -Provides both extreme free swell properties as well as delayed swell properties.
PRODUCTION
Made in United States
DOWNLOAD
↓ Datasheet
↓ Safety Datasheet
USES
WATERSTOP EC is used to seal non-moving construction joints in concrete footings, walls, floors, tunnels, and parking and plaza decks and to prevent water migration. The product can also be used around pipes and other types of penetrations. WATERSTOP EC has superior performance when used under conditions of extreme water head.
DETAIL
The multilayered structure with polypropylene fabric and strong tear-resistant netting provides for additional strength and structure. WATERSTOP EC will provide superior performance over the life expectancy of the structure.
MRC9: CONSTRUCTION AND DEMOLITION WASTE MANAGEMENT
| PROPERTY | TEST METHOD | WATERSTOP EC RESULTS |
|---|---|---|
| Weight | - | 0.25 lb./linear foot (0.4 kg/m) |
| Tear Strength: Membrane | ASTM D1004 | 1/2″: 75 lb. (333 N) 3/4″: 112 lb. (500 N) |
| % Elongation at Break | ASTM D638 | >150% |
| Unrestricted Expansion | - | 300% over 4 days |
| Installation Temperatures | ASTM D746 | -15˚ to 120˚ F (-25˚ to 50˚ C) |
| Freeze/Thaw Cycles | - | No effect before or after installation. |
| Resistance to Hydrostatic Head | ASTM D751, Procedure A | 100′ (30 m) of water |
| Vapor Permeability | ASTM D5084 | 1 x 10-9 cm per sec |
APPLICATION
SURFACE PREPARATION
Ensure that surface is free from protrusions and debris. If there are voids in the surface, fill with CLAY-TITE™ MASTIC from W. R. MEADOWS prior to installation of waterstop.
APPLICATION METHOD
WATERSTOP EC is designed for use on vertical and horizontal construction joints with a minimum of 2″ (50.8 mm) of containment. CLAY-TITE MASTIC will fill voids in rough concrete and provide additional adhesion to the concrete while preventing water or concrete from seeping under WATERSTOP EC.
If surface is troweled smooth, lay a 1/8″ – 1/4″ (3.2 – 6.4 mm) bead of CLAY-TITE MASTIC along the joint. Surfaces to receive the waterstop cannot have protrusions greater than 1/2″ (12.7 mm). Press WATERSTOP EC into uncured CLAY-TITE MASTIC and nail every 15″ (381 mm) on center.
Attach WATERSTOP EC with a washer nail [1″ (25.44 mm) shank] with washer [5/8″ -13/16″ (15 – 23 mm)]. Butt ends for a continuous application.
