Wedi Moltoromo Partition Walls
MOLTOROMO PARTITION WALLS
MOLTOROMO
PARTITION WALLS
"Modular system for endless wall construction.“
Wedi building boards have a blue core made from CFC-free extruded polystyrene rigid foam. This makes the wedi building board an ideal basis for any type of plaster and tile.
- The blue XPS core is 100% waterproof and remains fully functional.
- With Moltoromo, a wide range of wall shapes can be created effectively for different bathroom and wellness applications.
- Rounded forms, corner solutions or linear constructions are simple and quick to assemble.
- There are also no limits when it comes to tiles, plaster or any other coverings.
- The cemented surface is a good adhesive under-surface. The fibre fabric also absorbs tensile forces.
APPLICATION
AREAS OF USE MOLTOROMO
Shower and room partitioning for wet and dry areas that can be covered, with tiles, slabs or natural stone on at least one side.
EXTENSIVE SYSTEM COMPONENTS
- Contoured elements with different radii
- Corner pieces
- Straight wall elements
- End and connection parts
WIDE VARIETY DESIGN FORMS
- Modular design
- For practically every wall combination
WIDE RANGE OF APPLICATION
- Innovative system
- New possibilities for every bathroom - from classic screening walls to the unique shower screen
- Quick and easy installation
All elements can be joined by tongue and groove and then subsequently tiled or plastered.
INFORMATION
NOTE
Tiles, slabs or natural stone coverings and mineral plasters can be applied to the wall segments 24 hours after installation.
PROCESSING
The wall segments are tongue and groove and are secured with wedi 610 adhesive and sealant. The fixing set must be used for connection to the wall and door. The precise installation must be executed in accordance with the Moltoromo installation instructions available from www.wedi.eu. Before tiling, transitions between panels are covered with wedi Tools reinforcing tape (part of the installation set). The supply segments are used if fittings, pipes or other built-in elements are to be installed or secured.
ELEMENT HEIGHT
2600 mm
PRODUCT PROPERTIES
- Waterproof
- Heat insulating
- Lightweight and stable
TECHNICAL PROPERTIES OF RAW FOAM BUILDING BOARD SYSTEMS
- Long-term compressive strength (50 years) ≤ 2% compression EN 1606 : 0.08 N/mm2
- Compressive resistance or compressive strength at 10% compression EN 826 : 0.25 N/mm2
- Associated module of elasticity EN 826 : 10 – 18 N/mm2
- Thermal conductivity EN 13164 : 0.036 W/mK
- Tensile strength EN 1607 : 0.45 N/mm2
- Shearing resistance EN 12090 : 0.2 N/mm2
- Shear modulus EN 12090 : 7 N/mm2
- Bulk density EN 1602 : 32 kg/m3
- Resistance to water vapour diffusion (μ) EN 12086 : 100
- Water absorption under long-term immersion EN 12087 : ≤ 1.5 % by vol.
- Capillary action 0 Linear coefficient of thermal expansion : 0.07 mm/mK
- Temperature limits : -50°C / +75°C
- Fire behaviour EN 13501 : E
- Carbon dioxide propellant GWP value : 1
ACCESSORIES
SURFACE REQUIREMENTS
- Joints between walls
- Floor and ceiling must be solid
- Load-bearing
- Non-deformable
- Dry and free of dirt and other contaminants.
STORAGE
The elements must be stored in a dry place and protected from heat. The wedi 610 adhesive and sealant in the installation set must be stored in a cool, dry place between +5°C and +25°C. The product can be stored for 9 months in its unopened original packaging.
MOLTOROMO ELEMENTS
- wedi Moltoromo angled wall segment 300 x 300 h2600
- wedi Moltoromo curved wall segment, diameter 1500mm
- wedi Moltoromo curved wall segment, diameter 1000 mm
- wedi Moltoromo straight wall segment 300 x 50 x 2600
- wedi Moltoromo curved duct segment, diameter 1500 mm
- wedi Moltoromo curved duct segment, diameter 1000 mm
- wedi Moltoromo curved wall segment, diameter 500 mm
- wedi Moltoromo angled duct segment 300 x 300 h2600
- wedi Moltoromo corner profile, inside radius 180 mm

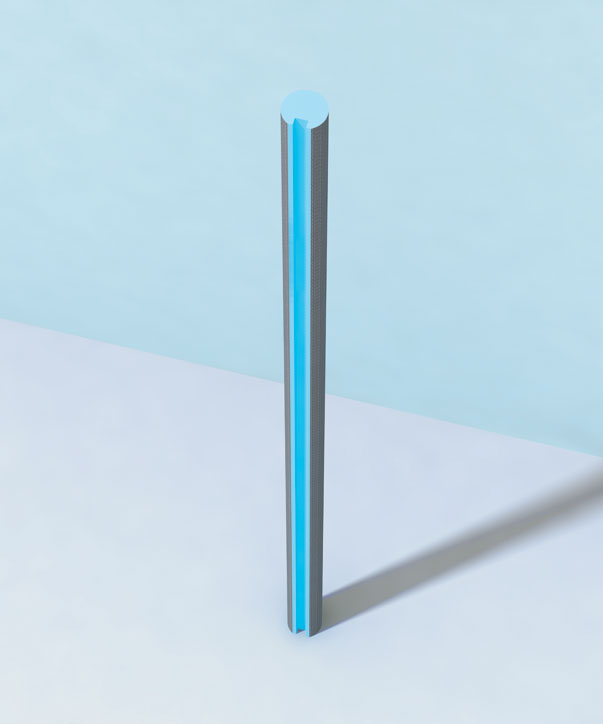

- wedi Moltoromo centered end profile d100 h2600
- wedi Moltoromo lateral end profile d100 h2600
- wedi Moltoromo straight duct segment 600 x 100 x 2600
